Product Specifications
| Prod Model: |
MLIE-EMC004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
ABS, PBT, PC, PF for Choice |
| Function: |
Plastic Enclosure Case, Electric Meter |
| Power Meter Current: |
1.5(6)a, 10(60)a, 20(120)a |
| Useage: |
Plastic Enclosure Case, Electric Meter |
| Application: |
Meter Enclosure, Plastic Enclosure |
| Monlone Model: |
Mlie-EMC004 |
| Delivery Time: |
45 Days |
| Name: |
Power Meter, Electronic Meter, Meter Box |
| Packaging: |
Plastic Bag or Box |
| Export Market: |
Global |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Multi-rate Watt-hour Meters |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Energy Meter |
Product Description

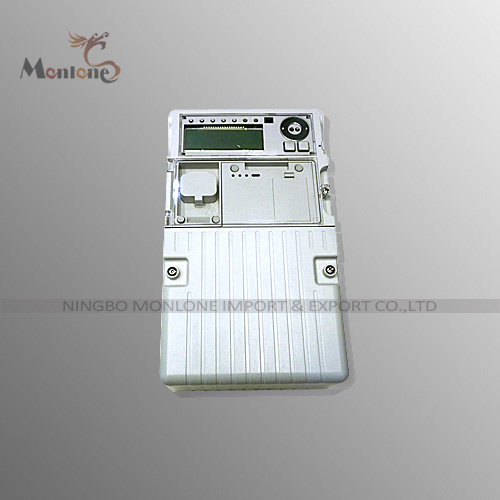

Part Name | Plastic Enclosure for 3 Phase Kwh Meter, Power Meter Case, Electric meter Box (MLIE-EMC004) |
| Model No. | MLIE-EMC004 |
| Electric Current | 1.5(6)A, 10(60)A, 20(120)A |
Three-Phase Four-Wire Plastic Enclosure Case, Electric MeterWORKFLOW
1.Quoting | Quoting according to 2-D drawing/3-D model or sample from customer |
2.Communication | Communicating about payment terms & way of transportation |
3.Contract | Signing contract |
4.Payment | Arranging payment according to contract |

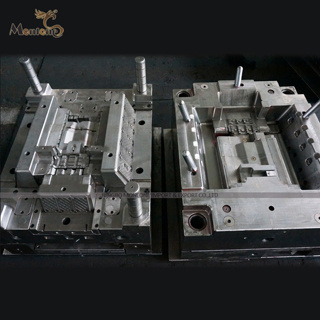

5. Molding | Developing mould |
6.Sample of Energy Meter Box | Submitting sample for approval |
7.Quantity production | Launching quantity production after sample approval |
8 Packing & Exportation | Assembly & packing for exportation |
Our company has worked in metering field for over 30 years.We have rich R&D experience for molding & producing meter parts. We can develop moulds & launch quantity production according to 3-D drawings or sample from customer.
Before mould developing, we can apply PRO-E/UG software to check the feasibility of the design, and will correct or take precautions against those problems which will appear in mould development or future quantity production. Meanwhile our engineers can well control the tolerance of mounting dimensions to ensure tight fitting, and for material selection, our engineers can also give good suggestion.

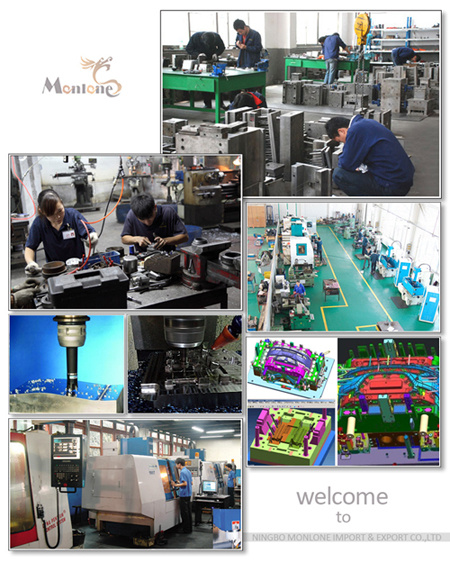

In our factory, we have well established production line from mould development, quantity production, assembly to packaging & final exportation. We produce both plastic parts & metal parts for KWH meter at our side and then assemble & export it as a complete set.
This type of meter includes the following accessories:
1. Meter base
2. Transparent Meter cover
3. Terminal cover
4. Nameplate
5. Terminal block
6. Gasket for case
7. Gasket for terminal block
9. Hook and matching screw
10. sealing screws
PACKINGOne piece of power meter case inside a foam box for Energy Meter Enclosure
MATERIAL USEDPP, ABS, PC, PC+ABS, PC+PBT, PPS, PE, POM, PA6/PA66+FIBREGLASS, PMMA, PPO, PBT, HDPE/LDPE, TPE, TPU, etc

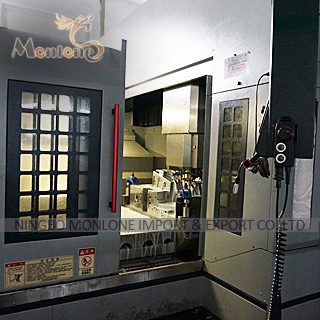

EUIPMENTFull-computerized plastic injection machine of 60T, 90T, 120T, 160T, 200T, 250T, 280T, 320T, 380T
Monlone is a professional manufacturer in the field of plastic injection molding & metal stamping, having three plants in Ningbo, China. Its wide product range includes plastic injection mould, plastic enclosure (plastic electrical enclosure, instrument & meter enclosure), household plastic parts, terminal block, and metal (copper/brass/steel) parts.
Monlone works on product customization, and is an efficient modern enterprise backed up by integrated flow line production management from design communication, mould development, quantity production to packaging & exportation. Customer satisfaction, efficiency, resource integration & optimization are its persistent goal. The products produced by Monlone have been well received in dozens of European and American countries!
