Usoon Holdings Inc. Limited >> Cuting Aluminum Pipe for Air Conditioner Part

Cuting Aluminum Pipe for Air Conditioner Part

Name: Cuting Aluminum Pipe for Air Conditioner Part
Brand: china-manufacturer-directory.com
SKU: 761701125
Availability: InStock
Rating: 4.6 (115 reviews)

Supplier:	Usoon Holdings Inc. Limited
Price:	US $ 3380-3500/Ton
Min Order:	5/Ton
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Date:	Within 10 Days
Samples:	Free
Certification:	CE RoHS
Shape:	Round
Surface Treatment:	Mill Finished
Grade:	1000 Series
Alloy:	Non-alloy
Temper:	O - H112

Product Description

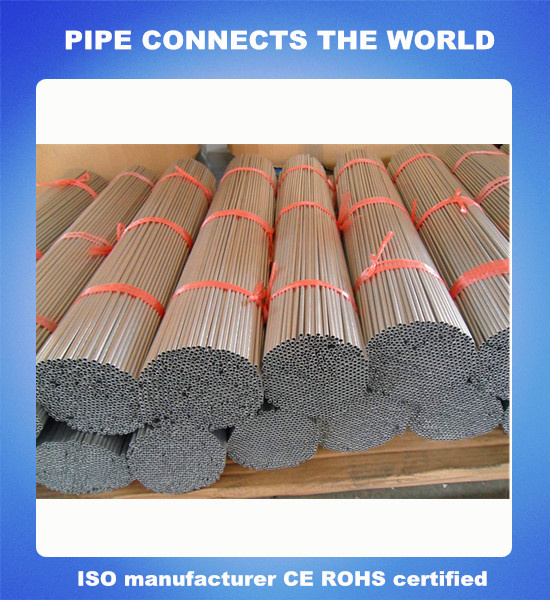

Product name: Straight aluminum pipe with fixed length
Item: Aluminum Pipe

Details:
Straight aluminum tube for HVAC&R indutry.
Straight aluminum tube are especially suited to long production runs for industrial applications. Mainly be used on air-conditioner,freezer,refrigeration, Condenser, intercooler, evaporator, warm wind movement, air conditoner pipeline, car radiator etc.

Flexibility & Strength:

Offers more flexibility and does not kink easily
Able to withstand burst pressure of more than 1000psi without sign of leakage

Lightweight & Durable:
Manufactured up to 1.5mm wall thickness providing superior rigidity
Using the same set of bending tools as copper

Brazing & Repair:
Fast & secured joints in less than 15s, 4 times faster than to braze copper
Braze Rods allows up to 45-50 joints per rod ( 50cm rod)
Uses the same method to braze copper

General size:
1)Grade: 1050 1060 1070 1100 3003 3102 3103 etc
2)Outside Diameter: 4mm-22.22mm
3) Wall Thickness: 0.4mm-2.0mm
4)Length: Not fixed, around 40-85kg/reel depend on the size of the tube
5)Coil size:
Coil I.D: 400mm/500mm,coil O. D: 750mm-1200mm , coil high: 310mm/400mm
6)Aluminum tube Temper: O H112 H14 H18 H24 H28 etc

Production Standard: ASTM B241 ASTM B241M GB etc.

Package:one coil per 75x75x30cm carton,6cartons=1wooden pallet,126cartons in 1x20"GP
252catons in 1x40"GP

O.D(mm)	W.T(mm)	Packing
6	0.35	LWC
7	0.4	LWC
8	0.4	LWC
8	0.5	LWC
8	1	LWC
9.52	1	LWC
10	1.25	LWC
10	1.65	LWC
11	1.8	LWC
12	1.75	LWC
12	2	LWC
12.7	1.2	LWC
14	1.75	LWC
15.88	1.2	LWC
15.88	1.65	LWC
16	1.5	LWC
16	2	LWC
18	1.5	LWC
18	2	LWC
19	1.3	LWC
19.05	1.65	LWC
20	1.12	LWC
20	1.2	LWC
20	1.3	LWC

Pipe connects the world

With the strength to connect and move our lives

U. S. H is always there for you

USOON HOLDINGS INC was born in maintance and supply full range of HVAC/R equipments and parts. With Established Strategic Cooperation with Haier and Haiercarrier, we set up our own copper tube factory, all kinds of copper tubes and copper tube fittings are manufacturered acoording to ISO and our own standardization management system.

WE PRODUCE:

Copper tube: LWC copper tube, IGT copper tube, Pancake copper tube coils, Straight copper tube, Capillary copper tube, Insulated copper tube etc

Copper fittings: Copper bend, copper tee, copper elbow, copper tubing assembly for ACR etc

Aluminum pipe: LWC aluminum pipe, IGT aluminum pipe, Pancake aluminum coils, Straight aluminum pipe, resin coating aluminum pipe etc

WE SERVICE:

Evaporator, Condenser, Bondy tube, Aluminum Foil, copper rod etc

U. S. H was contribute to improve the products quality and customer satisfaction since we established. Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At USH, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction

U. S. H devote ourselves to be a professional supplier in HVACR fields.
