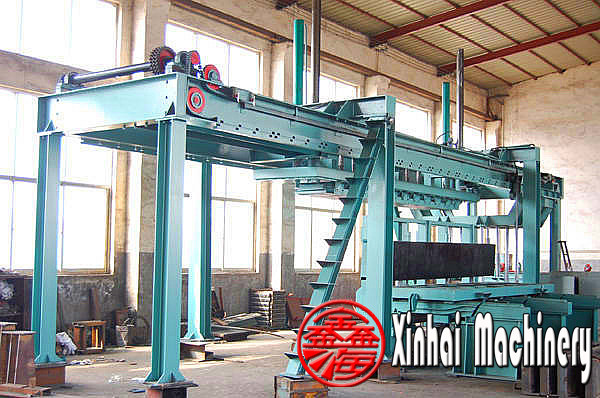

Cutting Machine for AAC Production Line

Product Specifications

Prod Model:	cutting machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity(Cbm):	More Than 1000000
Operation:	Easy
After Service:	All The Using Life
Technology:	High
Color:	Required
Cutting Cycle(Block/Min):	1/6
Quality:	Good
Power(Kw):	34-37
Design:	New
Certification:	ISO9001

Product Description

Advantages of cutting machine:

1). Compact structure, easy operation. Seldom need being repaired.
2). Complete the horizontal cutting and vertical cutting at once time.
3). Cutting each side of the cake, its cutting precision can meet the reqirements if GB/T11969-1997.
4). It can be used to produce panel, its cutting precision can meet the requipments of GB15762-1995.
5). Recycling all the scraps, no seconda pollution occurs.
6). The cakes won't adhere to each other.
7). Crosscut adopt screw transmission which solves the problem of desynchrony caused by hydraulic transmission.
8). Restrainer and safrty interlock can prevent the accidents by improper operation.
9). We can replace the steel wire quickly, the steel wire is tehse penumatically and it can swing in two directions.
10). No defective products.

Introduction of cutting machine:

Cutting machine is one of the main equipment of the(AAC)production line. Compact structure, easy operation, seldom need to repair.
Cutting machine is one of the main equipment of the(AAC)production line. The annual output of the AAC production line is over 50000 cubic meters, cutting machine is a necessary equipment which increases the efficiency and improve the product quality. Our JQF senes of cutting machine can cut the cake in one step by turning it over. Because of its advanced technology, we just need to swing the cake once. So we can rduce the damage to the cake. Due to its advantage, our cuttingmachine is well-received. After years of technical innovation, we have many different models of concrete cutting machine.

Working principle of cutting machine:

Turning over sling turns the mould with 90 degree and demoulds it, the cake together with the side board of the mould are placed on the cutting cart. Started by the motor, the cutting cart moves slowly through the functioning wertical cutting device to complete the vertical cutting. Then it moves to the middle of cutting device and stops there, the cross cutting device is started at this moment. The cutting frame drops wertically, then after cutting the cake horizontally. Cut the cakes from the horizontal side it will return to its original position.
