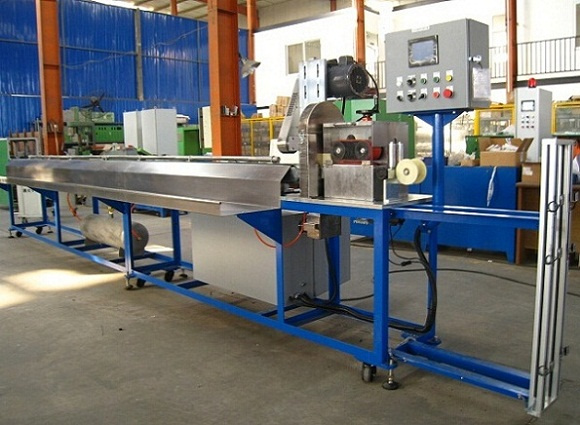

Cutting Machine

Product Specifications

Prod Model:	TH-CDJ-5000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of General Rubber Machinery:	Rubber Cutter
Power:	<10KW
Voltage:	380V
Customized:	OEM Is Available
Type:	General Rubber Machinery

Product Description

 1 Function:
The main function of this device is fixed length cutting for rubber products, mainly used in automotive sealing area.

2 Chatateristic:
Using the advanced touch scree, PLC, servo control method combining achieve precise cutting control; And the touch screen has strong maneuverability feature. This device is easy to operate and with high cutting precision.
Reliable electrical control using Mitsubishi Electric to ensure lasting stability.
3 Main Technical parameter (Standard type):

Name	Technical parameter
Model	TH-CDJ-5000
Power supply	AC 3P5wire 380V 50HZ
Total power	4KW
Center height	1100±50mm
Dimension	6500X750X1700mm
Driving control	0~40m/min,servo control
Cutting	Cylinder driven cutter, stop fixed length cutting
Cutting product	Length1~4.5m  Cutting precision±5mm
Control method	PLC FX2N Touch screenF930

Remarks: If you need more detailed informations,please contact us.
   Can be designed according to the customer requirements.
