Product Specifications
| Prod Model: |
LQ-WSM-55kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Cutting Machine |
| Size: |
1850*1100*1300 |
| Application: |
Granite, Marble Quarry |
| Main Motor: |
55kw(75HP) |
| Length Of Wire: |
20-150m |
| Diameter Of Driving Wheel: |
600-1000mm |
| Linear Speed: |
0-40m/S |
| Standard Power Supply: |
3 Phases, 380volts, 50Hz |
| Certification: |
CE, SGS |
| Cutting Direction: |
Any Direction |
| Usage: |
Stone Cutting |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Cutting Machine |
| Saw Blade External Diameter: |
50m/Roll |
Product Description

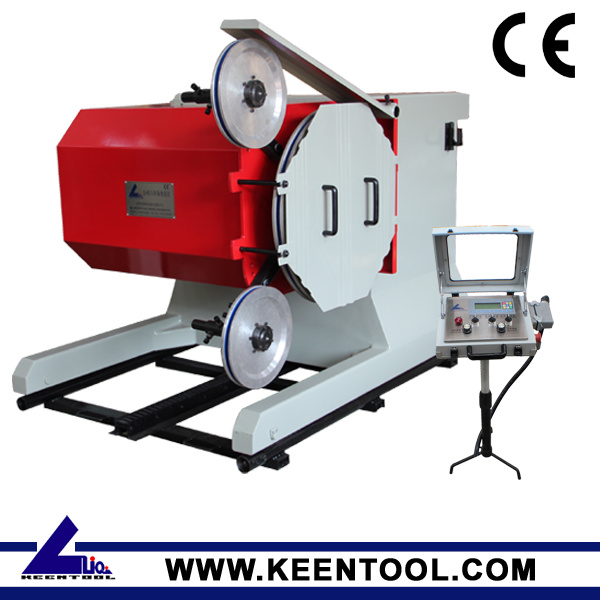

Variable speed cutting machine:
The electrical control system of our cutting machine is with PLC and two inverters that allow to variable linear speed of wire from 0-40 M/S. The translation and 360 degree rotation of flywheel-holder head of cutting machine is motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the cutting machine is motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions. Our cutting machine is with Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our cutting machine is safe cutting and good diamond wire durability as well as being user friendly.
The major functions of our cutting machine:
1-Variable wire speed range from 0-40 M/S
2- Automatic step-less tensioning system to keep the wire always in optimal working condition.
3. Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5-Maximum travel speed on rail without loading 1.75 Meters/Min.
6- Safety alarm and stop system in case of unexpected wire break or any other faults.
7- Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8-Separate automatic reset selection switch to control the rotation and lateral extension movement; Which can be take off when it is no need.
9-20 second main motor start alarm sound and flash light to warn around people leave away.
10-Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11-General gross weight: 2500-3400kgs; General volume dimension: 4-7cubic meter (with packing).
Pcckaging&Shipping:
Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 7 days for one set of wire saw machine.
Our services:
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
We, Keen Diamond Tool Co., is a professional manufacturer of diamond tools like diamond wires, diamond blades, diamond segments, diamond polishing pads, diamond fickert, diamond cup wheel, diamond core drills. We also supply quarry wire saws, block trimming wire saws and drills for quarrying of kinds of stone materials.
Model
|
Main Motor
|
Length of wire
(Meter)
|
Linear Speed
(M/Sec)
|
Diameter of driving wheels
(mm)
|
Application
|
LQ-WSM-11KW
|
11KW/15HP
|
5-20
|
0-40
|
Φ550
|
For block trimming
|
LQ-WSM-15KW
|
15KW/20HP
|
5-30
|
0-40
|
Φ550
|
LQ-WSM-22KW
|
22KW/30HP
|
10-40
|
0-40
|
Φ600
|
LQ-WSM-37KW
|
37KW/50HP
|
20-80
|
0-40
|
Φ800
|
For Quarry
|
LQ-WSM-45KW
|
45KW/60HP
|
20-100
|
LQ-WSM-55KW
|
55KW/750HP
|
20-120
|
LQ-WSM-75KW
|
75KW/100HP
|
20-150
|
0-40
|
Φ1000
|
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
