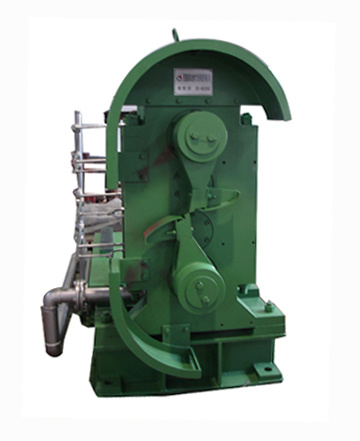

1.Equipment composition and structural characteristics.Flying shear is composed by transmission equipment, cutting support base and upper & lower spindle. Rotary tool rest has installed backsword, two spindles which are parallel with start-stop work system. Tool rest makes one revolution to finish one cutting period. Motor drive the spindle through reduction gears and make the upper, lower spindle rotated through the gear.
The lower spindle is connected with transmission equipments. Motor adapt separately ventilated machine and equipped speed measuring motor to measure the speed of the direct motor. Safety gear coupling is installed between the motor and reduction gears to insure the safety to use the equipment.
Cutting support base is a welded case with four-layers, it has four gear rolls inside, including upper, lower spindle and the others are transition gear rolls
Upper spindle has optical-electricityencoder to control the start-stop position of the shear blade in the processing of the cutting.
2.LubricationRecycled lubrication is adopted for internal gear and bearing of the shearing machine with dilute oil supplied by outside dilute oil station. Sump lubrication is applied for redactor.
Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a professional manufacturer of high-speed wire-rod, high-speed tray screw steel, hard-faced gearbox and relative homemade spare parts of all kinds. We have been in the line over 22 years and gather lots of technical and production experiences. Depending on the advanced techniques and constantly absorbing the hi-tech of domestic and international markets, we choose high technicians and completely precision equipment from domestic and overseas markets.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical and mechanical industries.
Our company uses the specific manufacture way to achieve the excellent product with the best quality. Our purpose is to satisfy our clients. Our high-quality products have passed ISO9001 certificate and we update our level to international standards. According to GB/T19001, we build the metallurgical high speed finishing wire mill and hard-faced gearboxes quality administrational system.
Our trademark "Hangji" is the famous brand in China. In the meantime, short-stress line bar mil, high-speed wire-rod finishing rolling mill and finishing rolling mill have acquired the national patents.
High-speed wire-rod production lines include heating furnace, roughing finishing rolling mill, middle finishing rolling mill, pre-finishing rolling mill, finishing rolling mill, pinch roll, laying head, picker and other high precision equipment. It is the technology-intensive product that combines modern rolling techniques with machine, electron, hydraumatic, pneumatic and instrument. Only a few countries in the world can offer the complex, high precision and difficult technology.
Our company has built cooperative relationships with SMS Siemag AG, DEMAG and JPMorgan Chase, and digested and absorbed the advanced product manufacture techniques. We integrate the processing, test methods and special manufacture methods to build our own administration system, quality system and techniques system. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We look forward to cooperate with you.
