Product Specifications
| Prod Model: |
D=6mm |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Milling Type |
| Hrc: |
55 Degree |
| Material: |
Solid Carbide |
| Controlling Mode: |
CNC |
| Precision: |
High Precision |
| Type: |
Instrument Machine Tool |
| Automatic Grade: |
Automatic |
Product Description

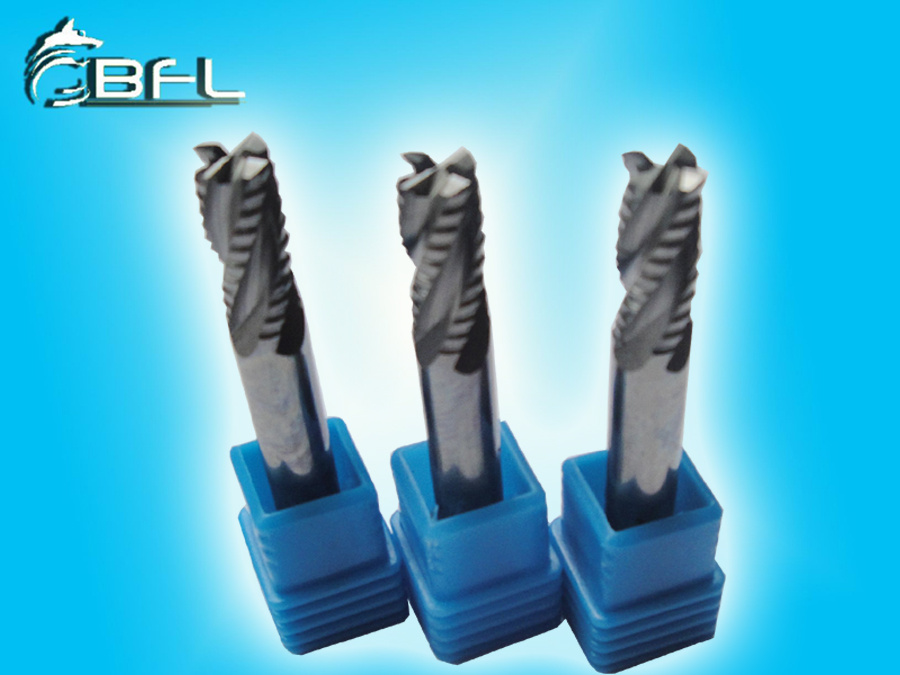

Cutting Tool--Carbide Roughing End Mill
1, Suitable for Copper, Cast iron, Carbon steel, Mould steel, Stainless steel, Titanium alloy, Tool steel, and Heat-treated steel processing.
2, Main feature: Grain size carbon tungsten, high toughness, ALTIN coating, high wear-resistance, special use for high speed cutting of CNC milling machine. Also can increase the smoothness, reduce the rubbing coefficient, and improve the lathe efficiency, save more production time.
We also can supply non-standard size products according to your requirements.
If you have any needs or questions, please contact us.
| Order No. | Outside
Diameter(D) | Shank
Diameter(d) | Flute
Length(l) | Overall
Length(L) |
| 6.0D×6×15×50L | 6.0 | 6 | 15 | 50 |
| 8.0D×8×20×60L | 8.0 | 8 | 20 | 60 |
| 10.0D×10×25×75L | 100 | 10 | 25 | 75 |
| 12.0D×12×30×75L | 12.0 | 12 | 30 | 75 |
| 14.0D×14×45×100L | 14.0 | 14 | 45 | 100 |
| 16.0D×16×45×100L | 16.0 | 16 | 45 | 100 |
| 18.0D×18×45×100L | 18.0 | 18 | 45 | 100 |
| 20.0D×20×45×100L | 20.0 | 20 | 45 | 100 |
Changzhou North alloy(Carbide)Tool Co., Ltd is a professional enterprise which specializes in the design, manufacture, and sale of solid carbide cutting tools. Such as end mills, drill bits, reamers, collets and so on. In recent years, North Carbide Tool has introduced advanced CNC grinding machines from Switzerland ROLLOMATIC and Germany WALTER, MICHAEL DECKEL what's more, advanced tool test instrument from Germany EOUER has been introduced.
North Carbide Tool mainly manufactures solid carbide milling and turning tools, drilling tools, special tools for PCD area, meanwhile, varieties of non-standard cutting tools can be designed for the clients. All the products are widely applied in the area of machinery processing, like automobile, mould, plastic and so on.
North Alloy Tool is always in the aim of "Survive from the quality, develop from the prestige". With the best quality, the competitive price and the best attitude of service, North people believe they can fly further!
