Product Specifications
| Prod Model: |
Q-152M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Power Handing: |
350W |
| Certification: |
CE, RoHS |
| Woofer: |
15 Inch Woofer |
| Finish: |
Black Paint |
| Enclosure: |
Plywood |
| Warranty: |
Two Years Free Warranty |
| Type: |
Two-Way Full Range System |
| Export Markets: |
Global |
| Application: |
Commercial |
| Speaker Material: |
Wood |
| Amplification Type: |
Passive |
| Usage: |
Radio |
| SNR: |
91-100dB |
| Structure: |
Bass Reflex Enclosure |
Product Description

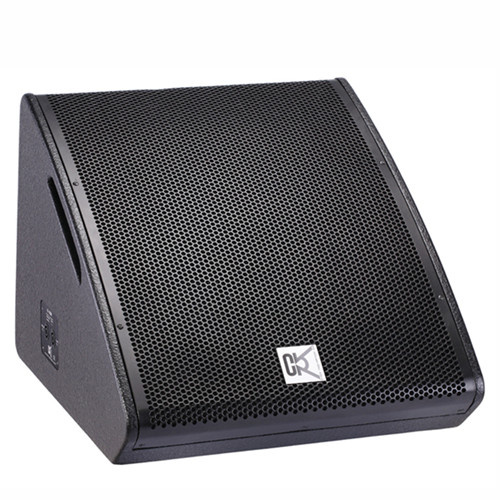

Cvr 350W stage monitor Speaker
DESCRIPTION & APPLICATION: ,
Q-152M is a two-way, full range stage monitor speaker system composed of one 15" woofer and one 1.75" titanium compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications.
TECHNICAL SPECIFICATIONS:
Model: Q-152M
Type: Two-way, full range monitor system
Frequency Response: 50Hz -20kHz ± 3dB
Power handling: 350W(RMS)700W(PEAK)
Sensitivity: 100dB(1W@1M)
Max@S. P. L: 125dB(PEAK/1M)
LF section: 15"(380mm) woofer75mm(3in)coil
Nominal impedance: 8 ohm
HF section: 1.75"compression driver with44mm titanium diaphragm
Nominal impedance: 8 ohm
Output section: 2-channel
Dispersion pattern: 90° H× 60° V
Finish: Black paint
Speaker cables: 1(+)1(-)I
Nput connectors: 2× NL4MP speakon
Dimensions: 510× 604× 422mm(W× H× D)
Package dimensions: 580× 675× 490mm/0.19cbm
Enclosure: Plywood
Netweight: 24kg
Gross weight: 28kg
