Shaanxi HAVEN Equipment Co., Ltd. >> Cw Series Horizontal Heavy Duty and Gap Bed Lathe Machine,

Cw Series Horizontal Heavy Duty and Gap Bed Lathe Machine,

Name: Cw Series Horizontal Heavy Duty and Gap Bed Lathe Machine,
Brand: China-Manufacturer-Directory.com
SKU: 612626104
Availability: InStock
Rating: 4.7 (85 reviews)

Supplier:	Shaanxi HAVEN Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CW SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Swing Over Bed:2000mm:	Max Workpiece Length:12000mm
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Manual
Setting Mode:	Floor-type
Precision:	High Precision

Product Description

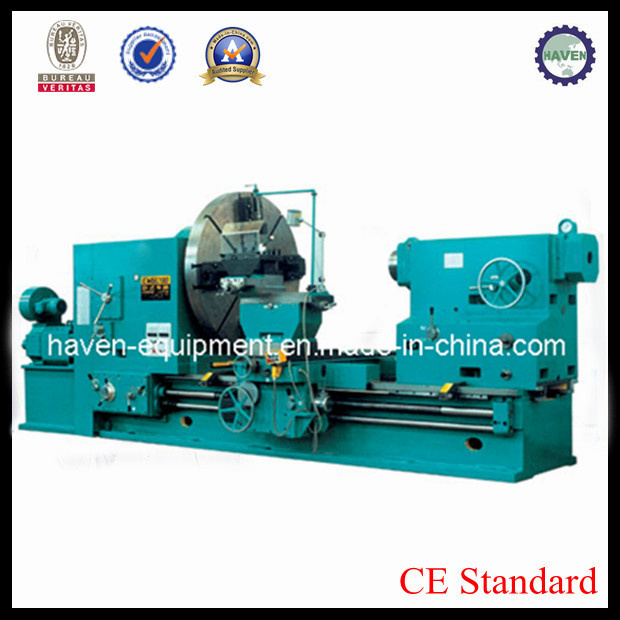

CW series Horizontal heavy duty and Gap Bed Lathe Machine:

These lathes can perform to turn end-face, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top tool post can be operated individually by power for cutting shirt taper surface. It also can turn automatically long taper by the compound movement combined longitudinal feed with the top slide feed. Moreover, the machines may be used for drilling, boring and trepanning. The have the characteristics of large power, high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
The machine consists of the bed of machine, headstock, feeding box, tailstock, carriage and tool post, apron, fixed device etc.

Main prameters type			CW61100E CW62100E	CW61125E CW62155E	CW64100E CW62140E		CW61125 CW62125	CW61140 CW62140	CW61160 CW62160	CW61180/1 CW62180/1
	Swing overbet	mm(in)	1000(40)	1250(50)	1400(56)		1250(50)	1400(56)	1600(64)	1800(72)
	Swing overgap	mm(in)	1250(50)	1500(60)	1650(66)		1750(870)	1930(77)	2110(84)
	Swing over carriage	mm(in)	650(26)	900(36)	980(38)		900(36)	1100(44)	1280(51)	1480(59)
	Maximum turning length	mm(in)	1500-16000(60-640)				1500-16000(60-640)
	Maximum weight of workpiece batween centers	kg	6000 ; 8000				8000 ; 10000
	Width of the bed	mm(in)	755(33)				970(39)
	Spindle noses No.	ISO	A2-15				A2-15
	Diameter of spindle front bearing	mm(in)	200(8)				200(8) ; 220(8.8)
	Diameter of spindle hole	mm(in)	130(5.2) 100(4)				130(5.2) ; 100(4)
	Taper hole of spindle		Metric No. 140				Metric No. 140
	Number of spindle speeds		21 ( Manual operating)
	Range of spindle speeds	r/min	3.15-315 2.5-250(2-200)			3.15-315 2.5-250(2-200)
	Main motor power	kw	AC22			AC22
	Rapid travelling speed of motor power	kw	1.5			1.5
	Section of tool shank	mm(in)	45× 45(1.8× 1.8)			45× 45(1.8× 1.8)
	Swivel angle of tool post		± 90°			± 90°
	Travel of transvers tool post	mm(in)			200(8)			200(8)
	Travel of longitudinal tool post		200(8)		400(16)	200(8)		400(16)
	travel of cross slide	mm(in)	520(21)	695(27)	720(28)	880(35)
	Rapid travelling speed of longitudinal tool post	mm/min	935			935
	Rapid travelling speed of transverse	mm/min	1870			1870
	Rapid travelling speed of longitudinal	mm/min	3740			3740
	Metric threads number and range	mm	45 ; 1-120			45 ; 1-120
	Inch threads number and range	T. P. I.	42 ; 30-1/4			42 ; 30-1/4
	Modul threads number and range	mm	46 ; 0.5-60			46 ; 0.5-60
	Diameter pitch threads number and range	D. P.	48 ; 60-0.5			48 ; 60-0.5
	Longitudinal number and range of feeds	m/rev	97 ; 0.064-12			97 ; 0.064-12
	Transverse number and range of feeds	m/rev	97; 0.032-6			97; 0.032-6
	Longitudinal tool post number and range of feeds	m/rev	97; 0.016-3			97 ; 0.016-3
	Diameter of tailstock quill	mm(in)	160(6.4)			160(6.4) 200(8)
	Taper hole of tailstock quill		Metric No. 80; Morse No. 6			Metric No. 80 ; Morse No. 6
	Travel of tailstock quill	mm(in)	300(12)			300(12)
	Weight of the lathe with 3m b. c.	kg	10800	11500	12300	11200		12200	13200	14200
	Additional weight par 1m b. c.	kg	1200			1400
	Machine overall dimension (length× width× height)( 3m )	mm	6100× 1900× 2000	6100× 2000× 2100	6100× 2100× 2200	6360× 2100× 2300		6360× 1960× 2400	6360× 2060× 2500	6360× 2160× 2600

We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
Management System Certification: ISO 9001,ISO 9000
International Commercial Terms: FOB, CFR, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 11~20 People
Export Year: 2003-09-09
Export Percentage: >90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Mid East
Factory Address: No. 31Nan Er Huan East Road, Xi'An, China
R&D Capacity: Own Brand(HAVEN)
No. of R&D Staff: 11-20 People
No. of Production Lines: 3
Annual Output Value: US$10 Million - US$50 Million
