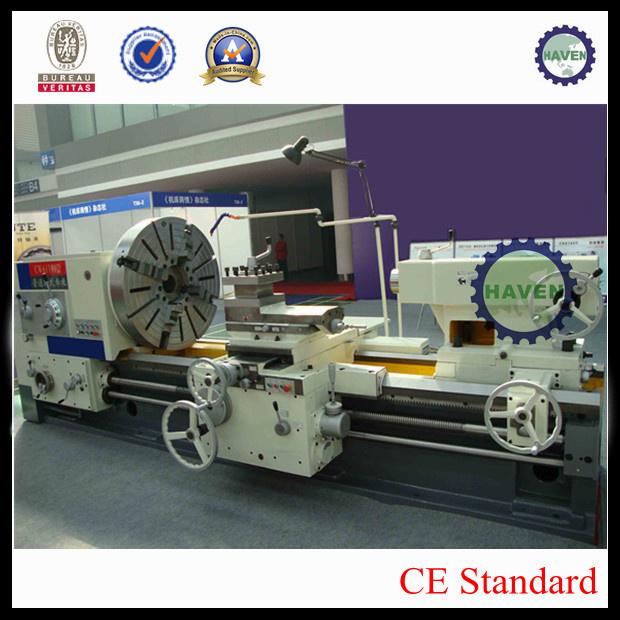

These lathes can perform to turn end-faces, cylindricl surfaces and internal holes of various parts as well as metric, inch, module and pitch threads.
The top slides can be operated individually by power for cutting short taper surface also, can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machinery may be used for drilling, boring and trepanning.
They are characteristics of power, high spindle speed, high rigidity. The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloytools.
Standard accessories:
1. Four-jaw chuck Φ 1250mm
2. CW61125L, CW61140L, CW61160L: Steady rest Φ 120--480mm(for more than 2m)
CW61180L, CW61190L: Steady rest Φ 400--700mm(for more than 2m)
3. Follow rest (for more than 2m)
4. Morse No. 6 Center
5. Center bush
6. Tools
7. Foundation screws
Optional accessories:
1. Metric chasing dial device
2. Inch chasing dial device
3. Inch leadscrew
4. T-type toolpost
| SPECIFICATION | Model |
| CW61125L | CW61140L | CW61160L | CW61180L | CW61190L |
| CAPACITY | Max.swing diameter over bed | 1250 | 1400 | 1600 | 1800 | 1900 |
Max.swing diameter over
crossslide | 880 | 1030 | 1230 | 1400 | 1500 |
| Width of bed | 1100mm |
| Max.length of workpiece | 1000 -8000mm |
| SPINDLE | Spindle nose | A15 |
| Sindle bore diameter | 130mm |
| Taper of spindle bore | Metric No.140# |
| Range of spindle speed | 3.15-315r/min 21kinds |
| FEEDS | Longitudinal feeds range | 0.1-12mm/r 56 kinds |
| Transversal feeds range | 0.05-6mm/r 56kinds |
| Metrec thread range | 1-120mm 44kinds |
| Inch thread range | 3/8-28TPI 31kinds |
| Module thread range | 0.5-60mm 45kinds |
| Pitch thread range | 1-56TPI 25kinds |
| TAILSTOCK | Tailstock sleeve taper | Metric 80# |
| Tailstock sleeve diameter | 260mm |
| Tailstock sleeve travel | 200mm |
| MOTOR | Main motor power | 30kW |
| Rapid motor power | 1.5kW |
| Coolant pump power | 0.125kW |
