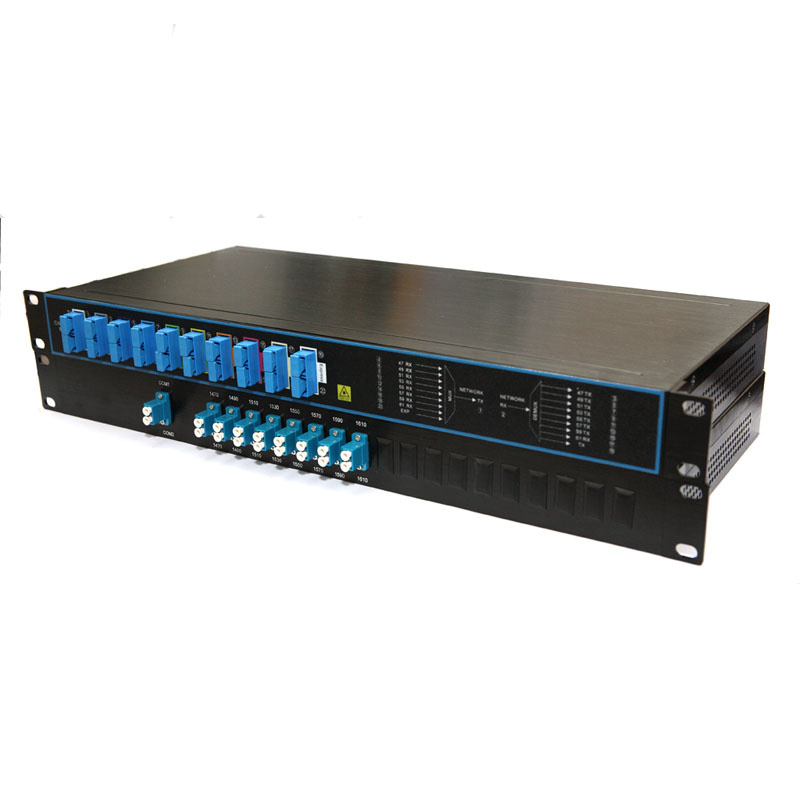

CWDM/DWDM/Oadm Module in 1u 19inch Rack Mount

Name: CWDM/DWDM/Oadm Module in 1u 19inch Rack Mount
Brand: China-Manufacturer-Directory.com
SKU: 697598575
Availability: InStock
Rating: 4.8 (24 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CWDM/OADM module
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001: 2008
Package:	19' Rack
Support Network:	Communication Cable
Usage:	Telecommunication
Type:	Passive Components

Product Description

CWDM is Flyin's mainly advantage products, it's selled very well due to good performance and competitive price!

2, 4, 8, 16, 18-Channel CWDM Modules

Flyin Optronics' Coarse wavelength division multiplexer (CWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provideslow insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Access Network

Applications
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610
Center wavelength Accuracy (nm)		± 0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		> 13
Insertion Loss (dB)		≤ 1.6		≤ 2.5		≤ 4.5
Channel Uniformity (dB)		≤ 0.6		≤ 1.0		≤ 1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	> 30	N/A	> 30	N/A	> 30
	Non-adjacent	N/A	> 40	N/A	> 40	N/A	> 40
Inertion Loss Temperature Sensitivity (dB/° C)		< 0.005
Wavelength Temperature Shifting (nm/° C)		< 0.002
Polarization Dependent Loss (dB)		< 0.1
Polarization Mode Dispersion		< 0.1
Directivity (dB)		> 50
Return Loss (dB)		> 45
Maximum Power Handling (mW)		300
Opterating Temperature (° C)		-5~+75
Storage Temperature (° C)		-40~85
Package dimension (mm)		L100 x W80 x H10			L142 x W102 x H14.5

Specification may change without notice.
Above specification are for device without connector

CWDM	Channel Spacing	Numbers of channel	Configuration	1st Channel	Pigtail	Fiber length	Connector
	C=CWDM Grid	02=2Channel 04=4 Channel 08=8Channel 16=16 Channel 18=18 Channel N=N Channel	M=mux D=Demux O=OADM	27=1270nm … ... 47=1470nm 49=1490nm … … … 61=1610nm SS=special	1=bare fiber 2=900um loose tube 3=2mm cable 4=3mm cable	1=1m 2=2m 3=special	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
