Product Specifications
| Prod Model: |

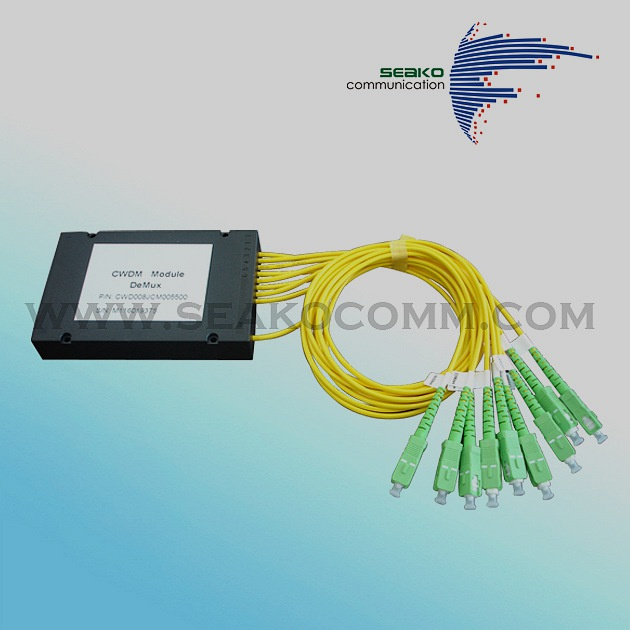

fiber optic Cwdm Splitters |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Single-mode Fiber |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Connection Structure: |
SC |
| Brand: |
Seako |
Product Description
Features:
- 2, 4, 8 Channels Coniguration
-Low insertion loss
-Wide pass band
-High isolation
-High stability and reliability
-Epoxy free on optical path
-Epoxy-Free in Optical Path
Applications:
-CWDM/DWDM System
-Line Monitoring
- Long- haul Networks
- Metro Networks
-Fiber Optical Amplifier
-CATV Fiber Optic System
MODEL |
4 Channels |
8 Channels |
Insertion loss (dB) |
≤2.0 |
≤3.5 |
Central wavelength (nm) |
1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411,
1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 |
Channel space (nm) |
20 |
Channel bandwidth (nm) |
λc ± 6.5 |
Channel flatness (dB) |
≤0.4 |
Channel uniformity (dB) |
≤1.0 |
Isolation (dB) |
Demux adjacent channel |
≥30 |
Demux non-adjacent channel |
≥40 |
Mux |
≥15 |
Directivity (dB) |
≥55 |
Return loss (dB) |
≥50 |
PDL (dB) |
≤0.15 |
PMD (ps) |
≤0.1 |
Wavelength thermal stability (nm/°C) |
≤0.003 |
Insertion loss thermal stability (dB/°C) |
≤0.005 |
Power handling (mW) |
≤500 |
Operating temperature (°C) |
0 ~ +70 |
Storage temperature (°C) |
-40 ~ +85 |
visit www.seakocomm.com for more information
Note: The above specification is without connector
Other specifications can be made on customer request
