Product Specifications
| Prod Model: |
CWT5111 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
| Application: |
All-Round Monitoring |
| Feature: |
Auto BLC |
| Sensor: |
CMOS |
| Kind: |
Manual Focus Lens |
| Technology: |
Wireless |
| Horizontal Resolution: |
420tvl |
Product Description

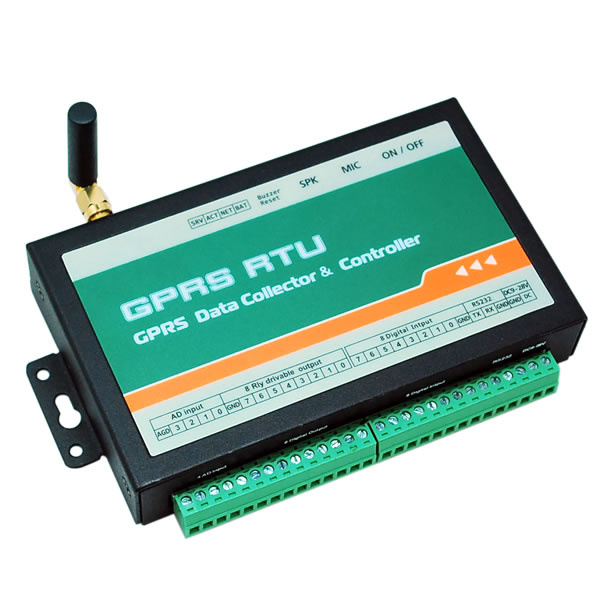

CWT5111 GPRS RTU, GSM GPRS RTU, GPRS Data Logger
Support 3G Verion
CWT Brand GPRS RTU List:
CWT5110 has 4 digital inputs and 4 digital outputs
CWT5115 has 1 digital inputs and 2 relay outputs and 1 analogue input
CWT5111 has 8 digital inputs and 8 digital outputs and 4 analogue inputs
CWT5016 has 4 digital inputs and 4 digital outputs, 4 analogue input and 4 Temperature inputs
With 1 RS-232 serial port, 8 Digital Inputs, 8 drivable Outputs, 4 analog inputs, CWT5111 is an ideal solution for factory automation, environmental monitoring and remote device management for M2M industry.
GPRS feature
Support connects 4 servers, the servers must connect internet and have static public IP address or Dynamic Domain name
GPRS Transmission base on TCP/IP
Support modbus TCP protocol or CWT_IO protocol
4 analog inputs feature
Can preset normal range for AD input, upload data to server when above the normal range.
Every AD input current values can be query via command
Configurable for the SMS alarm and recover message
Configurable for alarm ensure time
Configurable for alarm delay time
Configurable for offset and gain
8 digital inputs
NO or NC type can be preset
Configurable for alarm and recover sms
Configurable for alarm ensure time
Configurable for alarm delay time
Configurable for service number's authority of receive inputs alarm
Remote query inputs status
8 relay drivable outputs
Multiple output type can be preset
Remote On/Off/Pulse outputs
Configurable for pulse time
Remote query outputs status
Outputs can be activated by alarm or call
Outputs can be activated on schedule
Specifications
Parameter item |
Reference scope |
DC Power supply |
9-28V DC (Standard adapter: DC 12V/1.5A) |
Power consumption |
12V input Max. 150mA/Average 50mA |
Frequency range |
Dual-frequency 900/1800 or 900/1800/850/1900 |
SIM Card |
Supporting 3V SIM Card |
Antenna |
50 Ω SMA Antenna interface |
Serial |
RS232 |
Temperature range |
-30°C ~ +70 °C |
Humidity range |
Relative humidity 95% |
Digital Input |
8 digital inputs(Dry contact) |
output |
8 drivable relay outputs(open-collector outputs) |
Output drive voltage |
Equal to input DC voltage |
Output drive power |
Drive voltage ≤35V, drive current ≤500mA |
Analog Input |
4 analog inputs(4~20mA or 0~5V) |
Audio interface |
3.5mm audio in and audio out |
Exterior dimension |
130×80×25mm |
Weight |
370 g |
Industrial Automation control via SMS and/or GPRS. GSM monitoring and GSM control.
CWT (HK) Co. Limited is Chinese Top Manufacturer of GSM/GPRS/CDMA Automation and Control, in this market for ten years.
We offer M2M solution in Utility Meter, Household Appliances, Vending Machines, Security Systems, Heating and Cooling Systems, Billboard, Amusement Machines, Industrial Machines, Traffic Signs, Truck and other Vehicles and Medical Equipments.
Our CWT5000 Serials Products are specifically designed for this M2M solution, with 10 years experience in this market, we win numerous clients' cooperation and offer best professional service for them.
In the coming new year, we offer better and advance service, like G-cloudy, SCADA, PLC, DSC.
Any need of in this application, please feel free to contact us.
