Product Specifications
| Prod Model: |
CX235,CX250,CX270,CX2100,CX2140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

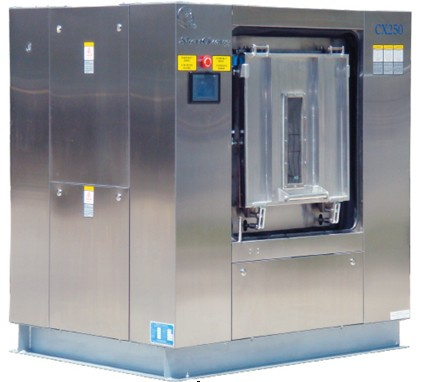

Our newly designed cxseries barrier washer extractor meets the need of bacteria-free dust-free and anti-static requirements. Utilizing the barrier washer extractor and wall partition, the laundry room can be easily divided into two separate independent operating zones, viz: "clean"and "non-clean"zones.
Launderettes will be loaded into the washing machine through the loading door from the "non-clean"zone. When washing is completed, unloading will be carried out from the "clean"zone. Under such operation, it effectively prevents gems, bacteria and dust from "non-clean"section polluting the "clean"zone. Thus it prevents clean laundry from being contaminated and get infected again after washing.
Cx series barrier washer extractors are of advanced design, well fabricated, economical to operate, easy maintenance and of high performance. They are widely used by hospital, food and pharmaceutical factories, nuclear power plants etc where extremely strict dust and bacteria-free environment are being observed.
Technical specification
|
Model |
|
CX235 |
CX250 |
CX270 |
CX2100 |
CX2140 |
|
Rated washing capacity |
kg |
35 |
50 |
70 |
100 |
140 |
|
Drum rotation r/min washing, even spread, medium de-water, fast de-water rotation limit set by VFD |
|
|
|
|
|
|
|
Drum Diameter |
mm |
750 |
750 |
950 |
950 |
1200 |
|
Depth |
mm |
800 |
1140 |
990 |
1420 |
1240 |
|
Motor Power |
kw |
4 |
5.5 |
7.5 |
11 |
18.5 |
|
VFD capacity |
kw |
5.5 |
7.5 |
11 |
15 |
22 |
|
Cold water in-let |
inch |
G1" |
G1" |
G1" |
G1 1/2" |
G1 1/2" |
|
Hot water in-let |
inch |
G1" |
G1" |
G1" |
G1" |
G1 1/2" |
|
Steam joint |
inch |
G1/2" |
G3/4" |
G1" |
G1" |
G1" |
|
Drain |
inch |
G3" |
G3" |
G4" |
G4" |
G5" |
|
L |
mm |
1580 |
1920 |
1840 |
2270 |
2170 |
|
W |
mm |
1200 |
1200 |
1450 |
1450 |
1750 |
|
H |
mm |
1850 |
1850 |
2100 |
2100 |
2400 |
|
Machine weight |
kg |
1570 |
1750 |
2250 |
2500 |
3100 |
Shanghai Shenguang Laundry Machinery Group of Co Ltd is located at southern part of Shanghai Industrial District. We are a professional laundry machinery manufacturer which was established in year 1991. Currently we own a total factory space of 20, 000 m² With built-up area of 10, 000 m² . We are one of the reputable and leading manufacturers in China with paid up capital of RMB 42, 800, 000 and total assets of more than RMB 100, 000, 000.
To cope with increasing market demand, in April 2010 the company acquired another 5, 500m² Of manufacturing facility at Fengcheng. The new factory houses the sheet metal works, welding and plasma cutting. With this new production facility, it further enhances our production capacity and efficiency with superior product quality.
Our products include FSFA(full suspension fully automatic) industrial washer extractor, barrier washer extractor, Full auto Industrial dryer, multi roller rotary flatwork ironer, chest flatwork ironer, sheet folder and energy saving environmental friendly gas heated rotary flatwork ironer and industrial dryer, fully closed circuit dry clean machine and leather processing equipment. Our products are widely used by hoteliers, hospital, schools, army camp and various mining factories.
In line with our company's development program, vast amount of capital being spent on acquiring world class advance manufacturing system and equipment which include the advance NC Laser cutter, NC lathe, NC puncher, Plasma cutter, 800 ton machine press and various lathe and milling machines (over 15 sets are in operation). Currently the company employs more than 15 engineers, 4 senior engineers and one Research engineer to man our Shenguang R&D department. With emphasis in R&D, many new equipments with cutting edge designs and technology are been developed. At present we own more than 10 product patents.
Product image and customers' trust are of our importance. Our company is ISO9001, ISO14001 and CE certified. List of accolades are best proof of our strength and commitment in providing quality products and reliable services to our customers.
One of our objectives is to be one of the top Chinese laundry equipment manufacturers in the world.
Our existing customers include those in Europe, Africa, Middle East and ASEAN countries. Many are repeated buyers.
