Product Specifications
Product Description

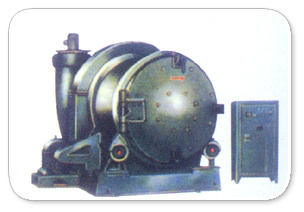

The proposal machine use the impeller with high speed rotation to blast the shots to the surface of the workpiece in the cylinder, casting and forgings etc, making the oxide scale, dirties cleaned. It is much suitable for the cleaning of small casting and forgings and the cleaness performence is evenly, which make it easy for further process. The machine equipped dedust device has good seperation performence. The stop system is controlled automatically. What is more, it is easy to maintain and operate.
| Technical parameters |
| Drum Diameter | 1000mm | shot-blasting capacity | 100kg/min |
| Drum inside length | 800mm | impeller diameter | 420mm |
| Drum rotation speed | 3r/min | impeller rotation speed | 2300r/main |
| Max.Valid cubage | 0.1m3 | blasting speed | 60m/s |
| Max.Loading | 300kg | suction air volume | 800m3/h |
| Workpiece length | 400mm | separation efficency | 96% |
| Workpiece weight | 15kg | Machine Dimension | 2078*21*165*1861mm |
| Productivity | 600-1500kg | | |
Establised in 1994, Luhuan Cleaning Machine Co., Ltd, located in wuxi city, has been engaged in cleaning machinery design and research.
Our main produsts consist of shot blasting machine, steel pretreatment line, spraying steel line series, special machine tool series and so on.
With the persistent pursuit of high quality and technolagy, we have personalizedly developed many new design from the convention. At the same time, we focus much on the knowledge and intelligence, which help us take out some patents.
Plus, we respect our clients' suggestion and opinion, what is more, we could give our customer a satisfied reply once any question reach us.
We are good at trouble-shooting in our products. That is why we have enjoy a good reputation from our customers and many of them have become our loyal clients.
We insist that Proficiency, reliability and honesty contribute to our brilliant future.
