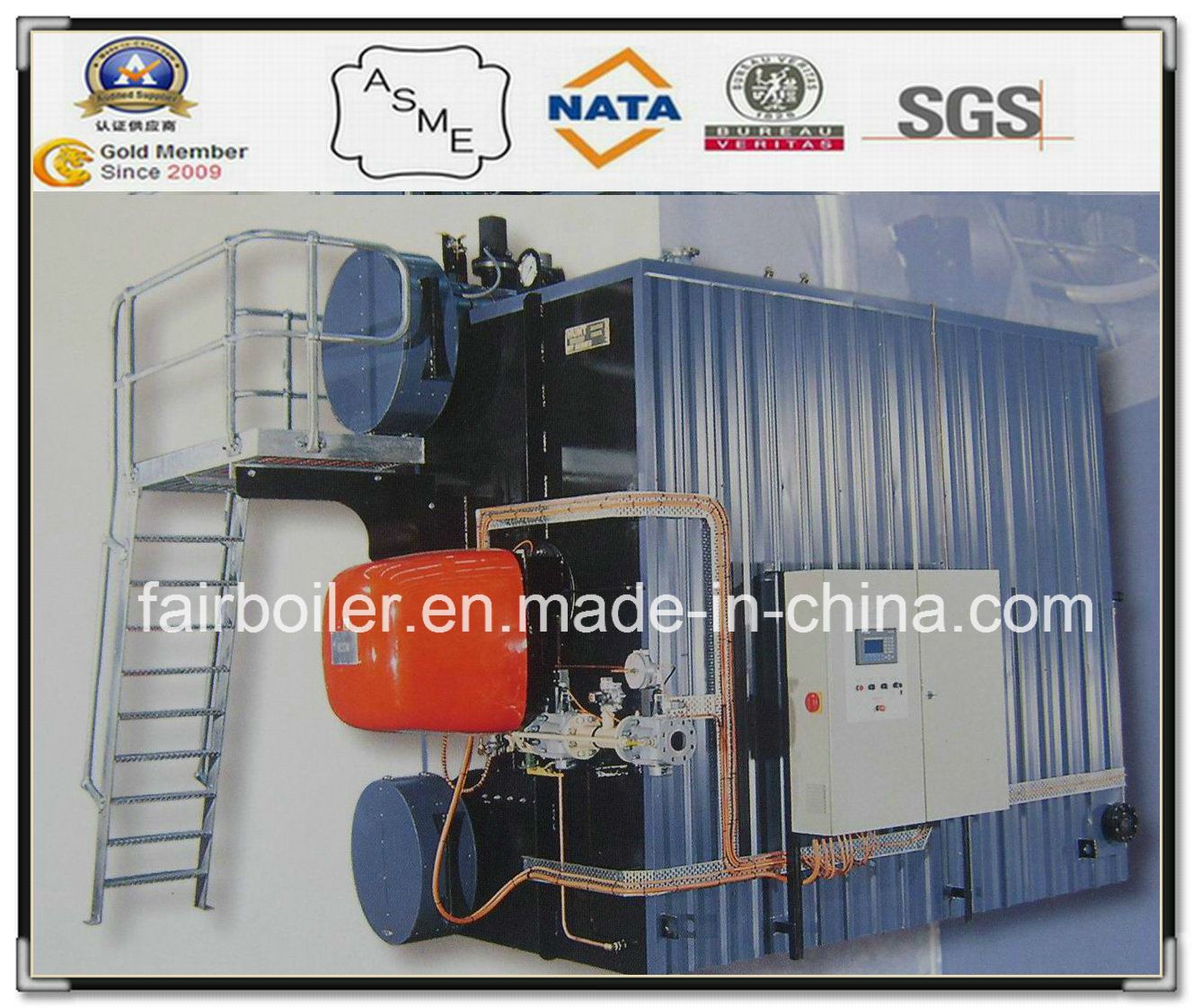

"D" type gas(oil) fired water tube steam boiler:
From 0.5ton-100ton, pressure The completeley assembled boiler is normally designed for 25 bars but is also available at lower and higher pressures on request. Boilers are available in both right and lef hand arrangements. It is designed, manufactured, tested and certified in accordance with the international codes and regulations.
Boiler Drums:
The steam drum is insulated with 4" rockwool and covered with a steel casing. A manhole is provided at each end of the drum. It is with all required internals including; Feed water, continuous blow-off, chemical feed, steam driers and baffles.
Boiler Tubes:
All boiler tubes are 2" O. D. The outer furnace tubes, outer convector tubes, and the internal partition, tubes are of the membrane type. This guaranties a gas-tight boiler without requiring an inner casing.
Casing and Insulation:
Maximum insulation is achieved through the use of superior materials which effectively seal the boiler water-walls. The insulation is covered with steel casing on the boiler front and rear wals and ribbed steel casing on the side walls and roof. This construction ensures that the temperature on the outer surface of the casing on the side wall will not exceed the ambient temperature by more than 22 C.
Accessories:
The accessories most commonly used and normally supplied by the boiler manufacturer are; Safety valves, water level regulator, water coloumn with gauge glass and three tricocks, low water cut-off, pressure gauge, vent valve, surface blow-off and blow-down valves, chemical feed valve and soot blower.
The boiler have exported many countries, 30 years producting exprience and mature technic will more grow your business.
Welcome to visit our factory and product line, it will set your heart at rest.
Qingdao Global Industry Co., Ltd a professional Engineering manufacturing co, We design and supply energy power equipment and ASME certificate professional water tube boilers, fire tube boiler, solid fuel boilers and fluid fuel boilers; Steam tubine, And hot water absorption chiller, steam absorption chiller and direct fired chillers. We Located in the seaport qingdao, we offers design and engineering, procurement, construction, installation, commissioning, operation and maintenance.
Our workshop have got the ASME certificate, U, S mark, and AS1228 is available via cooperation with Australia engineering co of gov. And CE, ISO9001 etc. There are more than 700 employees in workshop, and 100 senior engineers and technicians engage in project consultancy, Engineering management, implementation, construction supervision, and other services. In recent years, our products have been successfully exported to Pakistan, Australia, Newzealand, Indonesia, Thailand, Iran, Bangladesh, Uzbekistan, Hongkong, and other overseas markets through our factory and group company.
Every equipment whole manufacturing progress under the inspection with BV, SGS, CQC.
We are sincerely looking forward to establish long-term business cooperation and good service for you.
