Product Specifications
| Prod Model: |
SF-D8904AV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Pan / Tilt / Zoom |
| Special Features: |
Mini Size |
| Style: |
Pan/Tilt |
| Kind: |
Support Ie Browser |
| Type: |
Standalone DVR |
| Sensor: |
Main Profile H. 264 |
Product Description

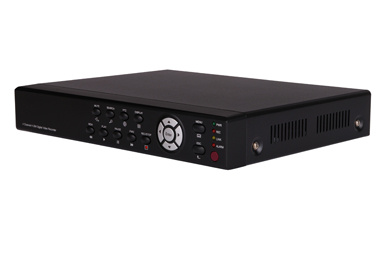

Model SF-D8904AV
Video Compression H. 264
Video System NTSC / PAL
Operation System Linux
Video Input / Output BNC 4channel inputs / 1channel outputs
Audio Compression 8kHz*16bit ADPCM
Audio Input / Output RCA 1-channel inputs / 1-channel outputs
Display Frame Rate PAL: 200fps / NTSC: 240fps
Playback Resolution PAL: CIF(352x288), HD1(704x288), D1(704x576)
NTSC: CIF(352x240), HD1(704x240), D1(704x480)
Total Recording Frame Rate PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF
Recording Mode Always / schedule(motion & sensor triggered)
Recording Pack Time 15/30/45/60mins selectable
HDD Interface 1 fixed SATA HDD rack, support up to 1TB HDD
Network Interface RJ45, 10M/100M
Network Protocol Support TCP/IP, UDP, DHCP, DNNS, PPPoE
Network Function Support to live view with IE (Internet Explorer) & with Mobile phones
USB2.0 USB mouse, USB disk
Playback Local: Playback 1 channels simultaneously
Network: Playback 1 channel simultaneously
Playback Mode Normal play, fast forward, fast rewind, frame by frame
PTZ Built-in RS-485 port, support PELCO-P & PELCO-D
Backup Methods USB flash disk, USB disk, USB CD/DVD-RW & Network
Alarm Mode Motion Detection, Sensor triggered, video loss, HDD error, HDD full
Senor & Alarm I/O 8 sensor inputs / 1 alarm output
Power Supply DC 12V/3A (power adaptor included)
Power Consumption 10~15W
Working Temperature -10° C to +40° C
Working Humidity 10% to 90%
Dimension 354 x 230 x 45mm (W x D x H)
Shenzhen Safer Science and Technology Co., Ltd is a high-technology enterprise specializing in research, manufacture and distribution of CCD cameras. Safer was established in 2002, the company possesses more than 400 employess and a floorage of 10, 000 square meters. Safer has 6 manufacturing lines, and with 2 advanced automatic assembly lines, the output can exceed 200K per month. The main products include the CCD cameras and some other communication parts.
We have a high-quality R&D team with a set of advanced equipment and many technicians, who are all well experienced in the field of radio and video products. We have established a perfect QC department, to strengthen the employee's quality idea, we train them on quality knowledge and work skills termly. The skillful production lines with strong quality ideas and strict disciplines has been laid a stable foundation in producing and distributing high-quality CCTV cameras for us. with very powerful technology skills, now we have finished the production of our Mega-Pixels cameras, All-In-One cameras series. The technical skills of our CCD cameras has been reached the level of the top of domestic and international standard.
Our main products including: Mega-pixels CCTV cameras series, Intelligent CCD cameras series, High resolution super WDR (wide dynamic range) cameras serise, IP Cameras series, Low illumiation CCD cameras series, IR Water-proof CCD cameras series, Box Cameras series, Dome camera series, Mini CCD cameras series, High speed dome camera series and DVR series, total 11 series with 2000 kinds of CCD cameras. In order to insure the reliable quality and good performance of our products, the key parts we used are all from Japan, Europe and America.
All of our products are strictly comfirm to ISO9001: 2000 quality standard, and we have passed the CE, FCC certificate successfully. We have a strong sales team, at present, we have our sales agent in 28 provinces in China mainland, and we have established the long term business relationship with the famous domestic security cooperations already. We also have distributors in 20 foreign countries, such as America, Ressia, United Kingdom, France, Germany, India & Brazil, and we have established the reliable foreign trade business relationship with many cutomers from nearly 40 countries.
Since the establishment, Safer CCD cameras has been widely used in many kinds of fields, such as government, customs, ports, banks, schools, airports, train stations, military camps, power systems, industrial zones and all kinds of security areas. We have received many honors just like: " China Secure City Band Recommended", " 100 top-list enterprise of China security industry", " 10 top-list of new wave product of China security industry", " 10 top-list of Most Influential Brand" and " Shenzhen High Technology Cooperation".
Having customer satisfaction is our company's dignity forever, we will make great effort to develop new and top-quality products, meet your special requirements for the research and development of the products and provide you perfect service system consisting of PRO-sale, on-sale and after-sale service.
Welcome to send inquiry to us, we will be very happy to establish the friendly relationship with you.
