Product Specifications
| Prod Model: |
D25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Load: |
798kg |
| Bucket Capacity: |
0.4m3 |
| Rated Power: |
18.5kw |
| Machine Width: |
1050mm |
| Travel System: |
Hydrostatic |
| Engine: |
Original Perkins Brand |
| Engine Model: |
403D-11 |
| Rated Speed: |
2800rpm |
| Bucket: |
0.4m3 |
| Wheel Base: |
1340mm |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
Product Description

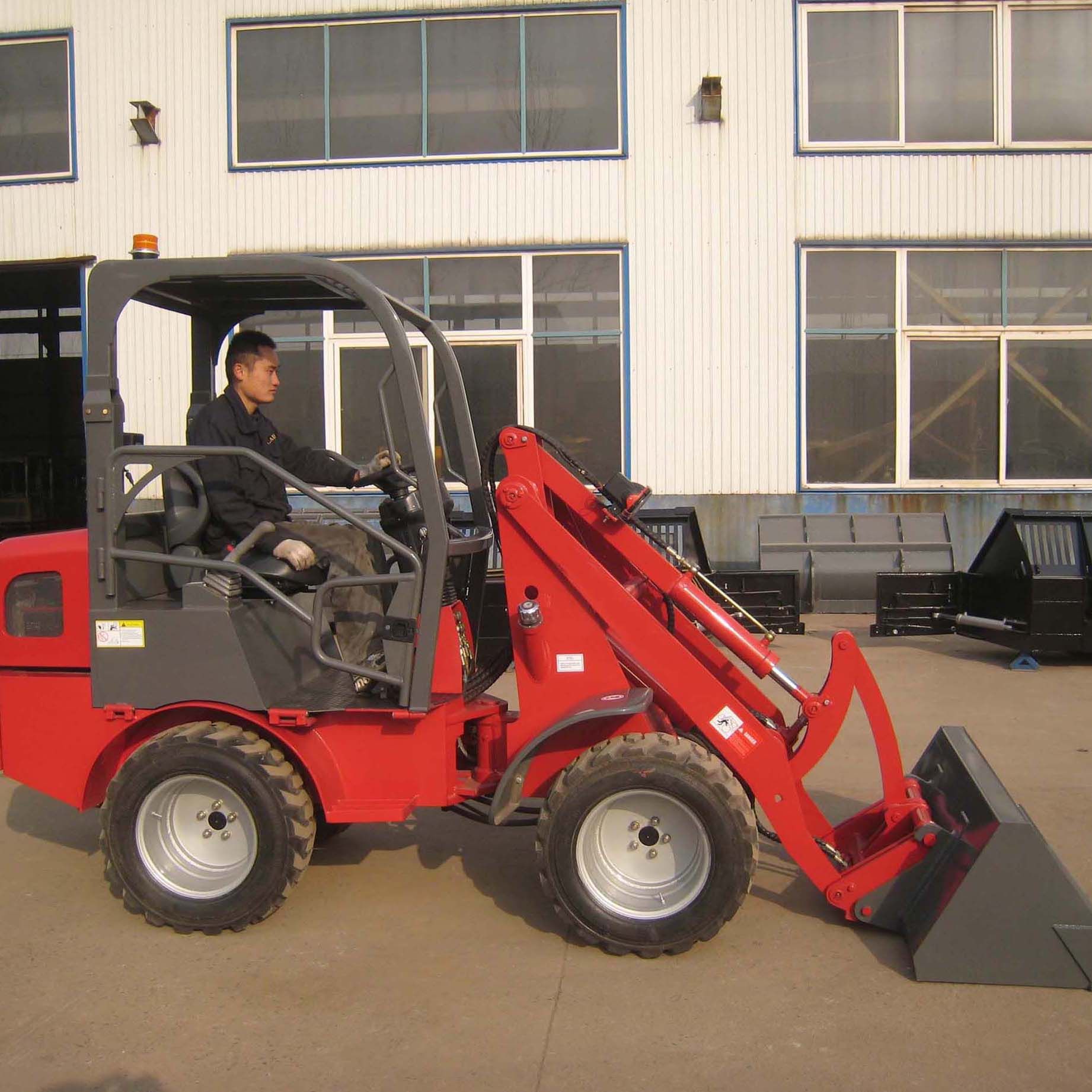

Mini loader D25 with CE Mini wheel loader manufactuer of 5 years Shovel Loader
Description and features
*Power features low energy consumption and environmental protection.
*The closed hydrostatic system has the feature of lower energy consumption.
*Simple quick-change construction can meet multipurpose operation of users.
*The integrated multi-functional control handle makes operation simple.
*The monitor has the LED showing of fuel level by stages.
*The unique frame hinge type is compacted and durable.
*The widely applied broad-face tyre and damping seat is safe and comfortable.
*Small working radius, mobile and flexible.
Engine: Original Perkins Brand
Model: 403D-11
Rated power: 18.5kw(24.8BHP)
Rated speed: 2800rpm
Maximum torque: 67Nm
The ratio of fuel consumption: 252g/kwhr
Dimensions:
Body length: 3690mm
Body width(reverse tyre): 1050mm/970mm
Body height: 2300mm
Minimum ground clearance: 200mm
Maximum dumping height: 2000mm
Dumping reach: 600mm
Wheel base: 1340mm
Performance parameters of the machine
Bucket: 0.4m3
Tipping load in shovel, vehicle straight raight straight: 798kg: 798kg
Tipping load in shovel, vehicle at 68° : 498kg
Operating weight: 1470kg
The sum of the work device: 8s
Driving speed: 0-12km/h
Minimum turning-circle radius:
Outside face of bucket: 1989mm
Outside face of tyre: 1469mm
Tyre specifications: 27*8.5-15TL
Maximum turning angle: ± 45°
| Engine |
|
| Model | PERKINS 403D-11 |
| Rated power | 18.5kw(24.8BHP) |
| Rated speed | 2800rpm |
| Maximum torque | 67Nm |
| The ratio of fuel consumption | 252g/kwhr |
| Dimensions |
|
| Body length | 3690mm |
| Body width(reverse tyre) | 1050mm/970mm |
| Body height | 2300mm |
| Minimum ground clearance | 200mm |
| Maximum dumping height | 2000mm |
| Dumping reach | 600mm |
| Wheel base | 1340mm |
| Performance parameters of the machine |
| Bucket | 0.4m 3 |
| Tipping load in shovel,vehiclestraight raight straight 798kg | 798kg |
| Tipping load in shovel,vehicle at 68° | 498kg |
| Operating weight | 1470kg |
| The sum of the work device | 8s |
| Driving speed | 0-12km/h |
| Minimum turning-circle radius |
|
| Outside face of bucket | 1989mm |
| Outside face of tyre | 1469mm |
| Tyrespecifications | 27*8.5-15TL |
| Maximum turning angle | ±45° |
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export.
We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada, England, Poland, Dutch, Italy, Russia, India, Main countries of Africa...
Our main products list.
Agricultural machinery:
1. Tractor from 18HO-130HP
2. Farm implemants covered dics mower, lawn mower, tractor mouting front end loader, backhoe loader, sweeping machine, snow blower, dics plow, dics harrow and etc.
Construction machine:
Wheel Loader, Truct Crane, Wheel Excavator, Crawler excavator, Backhoe Loader, Forklift, Road Roller, Concrete Mixer, Plate Compactor, Impact Tampers, Road Cutters, Concrete Vibrators, and so on.
Customer's requirement is our first priority. We can provide reliable, fast and professional service for you through telephone, on-site or network channels. We are ready to provide all customers with 10 years spare parts supply. Furthermore, if your products parts are damaged, please also contact us to see if it could be restored, and if so, you can avoid the trouble and cost of purchasing new spare parts. In our spare parts department, customers can get professional technical advice, as well as the relevant information regarding all products and services
With experiences in professional manufacturing for more than 10 years. WEIFANG MAP POWER Co. Has successfully sold equipments to around 40 countries and areas. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in the future.
