Introduction:
Full automatic visual 3-axis/4-axis precision dispenser is a general electronic production equipment, compact structure, easy-operation, stable function, economical and so on, which is integrated product by motion control technology and dispense control technology. It is widely used in electronic components manufacture, PCB board assembly, electrical products production, IC packaging, precision machinery, bio-medicine, light industry, packaging, food and other industry.
Structure:

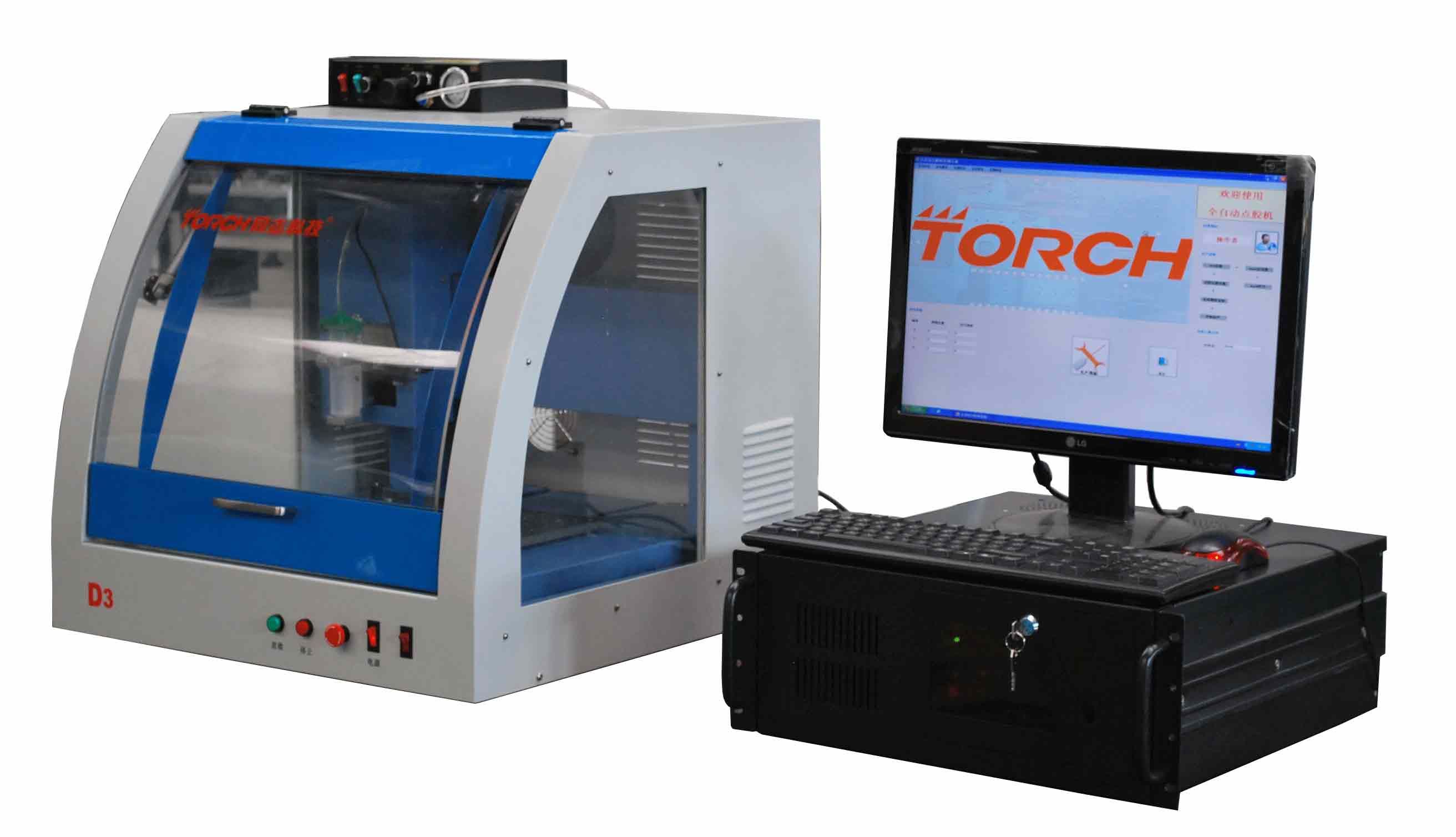

Automatic visual 3-axis/4-axis precision dispenser, which structure and dimension as below picture show, it consist of Y-axis motion platform, X-axis, Z-axis, configured with standard industrial computer and control software. It complete motion control and dispensing control by the computer for easy operate.
Features:
With CCD visual position system, high precision
Computer control+ professional dispense control system
High quality dispense and motion performance
With visual teach, DXF file automatic conversion
Control 3 axis/4 axis
Precision screw with high-performance motor, complete high precision motion control
With dispensing quality visual detection function
Small size, easy operate, reliable and long-term work in variety of environments, long-term work.
Effective working area:
X-axis: 300mm(dispensing head left and right movement)
Y-axis: 200mm(table back and forth movement)(300mm optional)
Z-axis: 50mm(dispensing head up and down movement )
Configure with safe cover and exhaust filter function, more environmentally and safer.
|
Model |
D3 |
D4 |
|
Working range |
(X)300*(Y)200*(Z)50mm |
(X)400*(Y)300*(Z)50mm |
|
weight |
98kg |
108kg |
|
Transmission |
High precision ball screw |
High precision ball screw |
|
Identify accurate |
X-axis/Y-axis:0.0016mm Z-axis:0.0125mm |
|
Operate mode |
Point to point, straight lien to arc imputation |
|
Program software |
Offline program (10 set) |
|
Max load |
8kg |
|
Host computer |
Lenovo /hp |
|
Panel control |
Reset, emergency, Power |
|
Barometric pressure |
0-6Kgf/cm2 |
|
Work temperature |
5-40C |
|
Work humidity |
20-90% no condensation |
|
Power |
220VAC 50HZ |
|
Dimension |
(L)600*(W)615*(H)620mm |
(L)720*(W)715*(H)620mm |
