D403 Macroporous Chelating Resin for Recovery of Multivalent Metal Ions in Hydrometallurgy Industry
Product Specifications
| Prod Model: |
D403 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Characteristic: |
Thermoplastic Resin |
| Molecular Principal Chain: |
Element Organic Polymer |
| Synthetic Resin: |
Epoxy Resin |
| Natural Resin: |
Rosin |
| Color: |
White |
Product Description

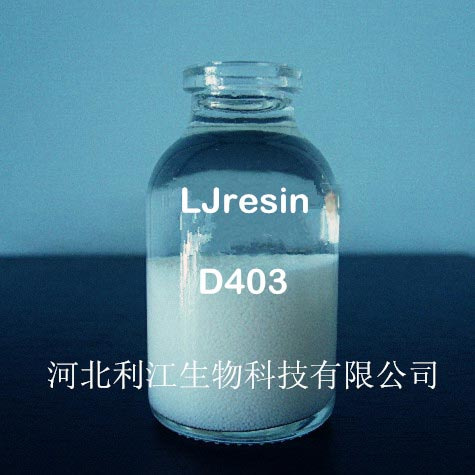

LIJIANG™ D403 Macroporous Chelating Resin
1: product introduction
LIJIANG™ D403 macroporous chelating resin is a polystyrene skeleton macroporous chelating resin, containing -CH2PO (OH) 2 ligands, made by special technology, high mechanical strength.Mainly used to remove multivalent metal ions such as Fe2+ in the sulphuric acid.
The corresponding products of other brands:
2: performance index:| Appearance | Pale yellow opaque sphere |
| Functional group | -CH2PO (OH) 2 |
| Mass full exchange capacity | ≥7.0mmol/g dry |
| Volume full exchange capacity | ≥2.4mmol/g |
| Moisture % | 45%~55% |
| True density in wet state | 1.15~1.25g/ml |
| Visual density in wet state | 0.70~0.75g/ml |
| Particle size range | 0.315~1.25mm |
| Maximum operating temperature | 80ºC |
| Sphere rate after abrasion | ≥95% |
3: reference operating conditions: | maximum operating temperature | 80ºC |
| The resin filling height | 1~3m |
| Operating velocity | 2~10BV/h |
| Backwash velocity | 4~10BV/h |
| Regeneration (desorption) velocity | 1~2BV/h |
| Regeneration agent | 2BV3~5%HCI,2BV2~4%NaOH |
4:product application:
Mainly used to remove multivalent metal ions such as Fe2+ in the sulphuric acid. can also be applied to recovery of multivalent metal ions in hydrometallurgy industry.
5:Packaging : Plastic bag 25 Liter
Hebei Li Jiang Biotechnology Co. Ltd. million tons of nuclear grade resin and related level product project, located in the Weixian County fine chemical industry park in Hebei Province, by the parent company Beijing Jinli Jiang biological technology development limited company invests build.
The total project covers an area of 267 acres, the construction in four phases, the total construction period of 40 months. The project total investment 600000000 yuan, including fixed assets investment 520000000 yuan core. The overall project completed and put into production, is expected to achieve the output value of about 800000000 yuan.
The company leading product for the nuclear grade resin, polymer material is functional, as nuclear energy, medicine, food, dry wet metallurgy and chemical synthesis necessary for modern engineering series, has been included in the national development plan of high tech industry in five years. Products are mainly used in water treatment, traditional Chinese and Western medicine extraction, hemoperfusion, biological product application, rare and precious metals of high purity refining and other cutting-edge industry. With the development of science and technology, the application field of related products continues to expand
