Yueqing Heyi Electrical Co., Ltd. >> (D5 Series) Closed Loop Mode Mini Hall Effect Current Sensor for Variable Speed Drives

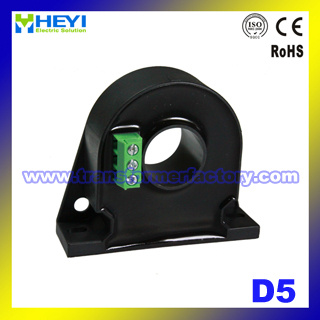

(D5 Series) Closed Loop Mode Mini Hall Effect Current Sensor for Variable Speed Drives

Name: (D5 Series) Closed Loop Mode Mini Hall Effect Current Sensor for Variable Speed Drives
Brand: China-Manufacturer-Directory.com
SKU: 751804945
Availability: InStock
Rating: 4.6 (69 reviews)

Supplier:	Yueqing Heyi Electrical Co., Ltd.
Price:	US $ 15.21-17.1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	D5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	D5 Series
Supply Voltage:	+-12,+-15,+-18
Power Consumption:	Less Than 20+ Ipx(Np/Ns) Ma
Offset Curren:	+-0.2 Ma
Offset Drift:	@ -40~+85degree Less Than+-0.5 Ma
Linearity:	Less Than 0.1
Di/Dt:	More Than 100
Bandwidth:	@ -3db 0~150kHz

Product Description

The D5 Series current sensor is a closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit, the size of primary doesn't affect test precision, no matter the location of primary in the hole of current sensor. It can really measure resolution 1000:1, it uses for precision measurement of DC, AC and pulse current.

Electrical data (Ta=25ºC±5ºC)

Type	D5-50A	D5-100A	D5-200A	D5-300A	Unit
Rated current(Ipn)	±50	±100	±200	±300	A
Measure range(Ip)	0-±75	0-±150	0-±300	0-±450	A
Turns ratio(Np/Ns)	1:1000	1:2000	1:2000	1:2000	T
Measure resister with±15V	@±50Amax 0(min)186(max)	@±100Amax 0(min)175(max)	@±200Amax 0(min)100(max)	@±300Amax 0(min)56(max)	Ω
Measure resister with±15V	@±75Amax 0(min)117(max)	@±150Amax 0(min)106(max)	@±300Amax 0(min)56(max)	@±450Amax 0(min)21(max)	Ω
Measure resister with±18V	@±50Amax 0(min)304(max)	@±100Amax 0(min)293(max)	@±200Amax 0(min)130(max)	@±300Amax 0(min)75(max)	Ω
Measure resister with±18V	@±75Amax 0(min)159(max)	@±150Amax 0(min)148(max)	@±300Amax 0(min)75(max)	@±450Amax 0(min)31(max)	Ω
Coil resister	14	25	25	25	Ω
Rated output	50	50	100	150	mA
Supply voltage	±12,±15,±18				V
Power Consumption	≤20+IpX(Np/Ns)				mA
Offset current	@Ip=0 ±0.2				mA
Offset drift	@ -40~+85ºC ≤±0.5				mA
Linearity	@Ip=0-±Ipn ≤0.1				%FS
Response time	@50A/μS, 10%-90% ≤1				μS
Galvanic isolation	@ 50HZ,AC,1min 6				KV
di/dt	>100				A/us
Bandwidth	@ -1dB 0~150				KHZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT 4:NC

Directions for use

1. When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output current are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	79	g
