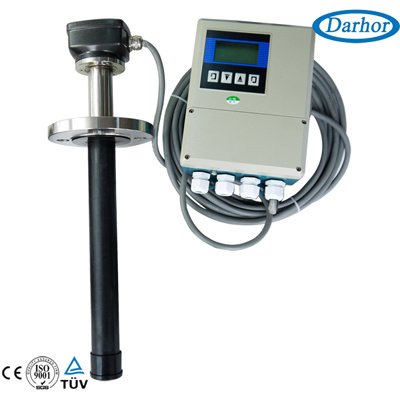

Darhor Insertion Electromagnetic Flow Meter

Name: Darhor Insertion Electromagnetic Flow Meter
Brand: China-Manufacturer-Directory.com
SKU: 688815832
Availability: InStock
Rating: 4.4 (32 reviews)

Supplier:	Hangzhou Darhor Technology Co., Limited
Price:	US $ 800-2500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	DH1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Of Electrode:	Ss Ti Ta H PT or Other Special Electrode Material
Conductivity:	5us/Cm
Converter Type:	Integrated, Remote, Inserted /Flange, Clamp
Medium:	Conductive Liquid, Slurry
Operating Temp. Range:	-10 to 130°c
Configuration:	Non-Explosionproof & Explosionproof IP66, 67, 68
Power Supply:	AC or DC-Powered
Operating Pressure:	0.25, 0.6, 1.0, 1.6, 4.0mpa, (or Specified by Cust
Signal Output:	Analog, Pulse
Lining:	Rubber, PE, F40, PFA
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Accuracy:	?à0.2-0.5%
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Principle:	Conductive
Size:	Dn15-Dn500

Product Description

The electro magnetic flowmeter is a kind of measuring instrument based on Faraday law of electromagnetic induction, which can measure the volume flow of electrically conductive liquid, seriflux and so on. It has the features as following:
1. The measurement can not be influenced by the change of fluid density, viscosity, temperature, pressure and conductivity;
2. The inside of measuring tube do not have the parts to block the flow move, no pressure loss, low demand in straight pipe;
3. Totally deal with digital quantity, high anti-interference, reliable measurement, high precision, flow range reach to 1500: 1;
4. Converter adopts to 16-bit embedded microprocessor and surface mounting technology, convenient preferences, totally Chinese menu operation, easily use, with self-check and diagnosis functions;
5. With the function of measuring two way flow, can show the positive and reverse flow, also have two way current and rate output, which is convenient for the record and store different flow signal;
6. Inside have three counters, which can separately show positive cumulation, reverse cumulation and D-value calculation;
7. With RS485 or RS232 digital communication signal output;
8. With self-check and diagnosis functions.

Technical Parameter:

DH1000	G Standard Type	R Remote type	S Sanitary Type	I Insertion Type
Medium	Conductivity Fluids
Accuracy	± 0.5%	± 0.5%	± 0.5%	± 1.5%
Repeatability	± 0.25%	± 0.25%	± 0.25%	± 0.75%
Fluid Temperature	-25°C ~ 130 °C	-25°C ~ 130 °C	-25°C ~ 130 °C	-25°C ~ 130 °C
Conductivity	≥5μs/cm ( soft water should be ≥20 μs/cm)
Size	10mm ~2200 mm	10mm ~2200 mm	10mm ~125 mm	200mm ~3000 mm
Operation Pressure	0.6Mpa/1.0Mpa/1.6Mpa/2.5Mpa/4.0Mpa/Others
Velocity	0.5 m/s ~ 10 m/s
Flow Direction	Forward / Reversed
Electrodes Material	316L / Hastelloy C2,B4/Tantalum/Titanium/Platinoiridita/others
Liner Material	Rubber /PTFE/PFA		PFA	PTFE
Electrodes Type	Standard
Qty of Electrodes	2 pairs ( one pair for measuring, one pair for grounding)			1 pair( for measuring)
Measuring tube Material	304 Stainless Steel
Flange Material	Carbon steel/304 Stainless steel		304 Stainless steel	304 Stainless steel
Installation Type	Wafer/flange		Tri-clamp/screw	Flange/plug-in
Protection level	IP65/P68 ( Remote Version)
Power	220VAC ± 20% 60HZ / 24 VDC
Signal Output	4~20mA
Communication	Hart / Modbus/ Profibus
Electrical connection	2* M20 * 1.5
Explosive-Proof	Exdemib II BT3~T6
Construction Type	Compact / Remote
Operation Environment	Environment temperature:-25 °C~ + 60 °C; Relative Humility: 5% ~90%
