Product Specifications
| Prod Model: |
YF-SF805D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Video Transmission |
Product Description
Features:

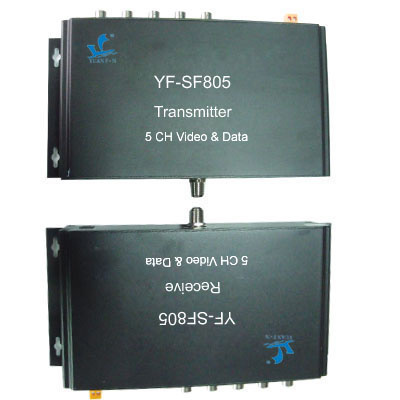

5-CH, 1 coaxial cable video, power and data transmission system, composed of transmitter and receiver
Transmits unidirectional data up to maximum 500m (RG-6) as well as video signals over 1 coaxial cable from receiver to transmitter
Transmits data signals such as video, ACK signals and alarms through 1 coaxial cable to long distance from receiver to transmitter
Besides do not need to install extra cable for data signals, can save money and time
Saves working time
Auto-distance control for video and data signal
Maintains video and interference immunity
Easy to install with BNC jack
Specifications:
Video-in: 5-CH, 75Ω , 1Vp-p
Video out/RF in: BNC-F
Data: T-block (RS485/half-duplex)
Power: 12V DC jack
Temperature: -10 to 50° C
Humidity: 0 to 80% RH
Distance (maximum): 500m
Case body: Aluminum
Dimensions: 210 x 130 x 35mm
Weight: 440g
Shenzhen Yuanfan was established in 2001, it is engaged in the R&D and production of high-tech surveillance products.
Our R&D department was set up in 2006 and this is when we started the development and production of the "Broadband One Cable", a transmission system monitoring equipment which uses cable broadband transmission with simple wiring and flexible expansion. This product is also favored for being cost-effective as it can integrate images and sounds, control alarm signals and broadcast background music. All this in one coaxial cable transmission line, instead of five lines.
By the end of 2008, in order to save on construction wire and time, we developed a series of products such as coaxial cables, 2-, 3-, 4- and 5-channel video multiplexer, 4-channel economic transmission equipment through the system bus, personal emergency alarm systems and remote alarm systems. In 2010, we launched our personal emergency video intercom, a transmission line with a video intercom system.
