Product Specifications
| Prod Model: |
SP75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Color |
| Interface Type: |
USB |
| Usage: |
Card Printer |
| Type: |
Ribbon |
| Max. Paper Size: |
86*54mm |
Product Description

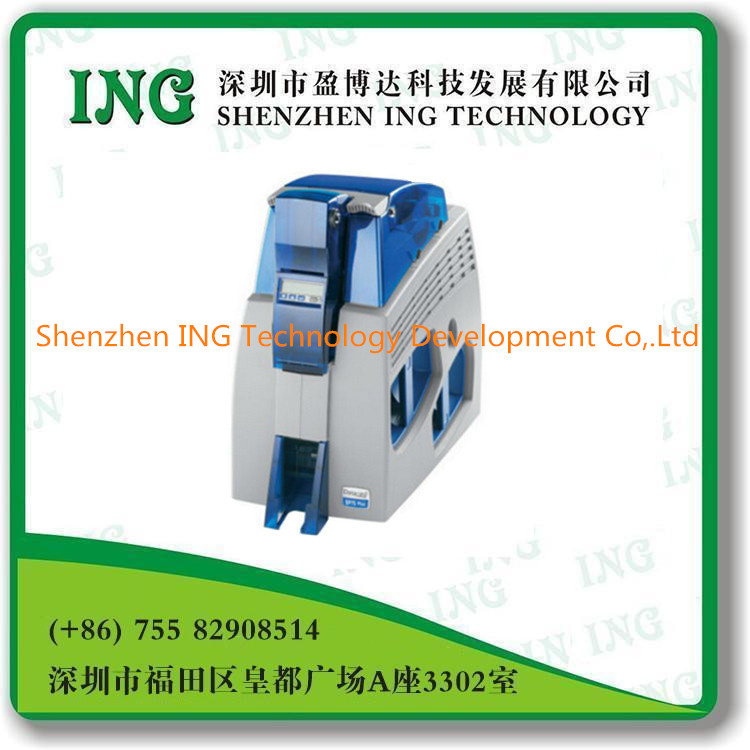

Datacard SP75 Plus Technical specifications
Print Method:
Full-color or monochrome Ultraviolet fluorescent printing
Print mode:
One- or two-sided edge-to-edge printing
Print speed:
Full-color printing:
Up to 175 cards per hour (one-sided print and laminate)
Up to 165 cards per hour (two-sided print and laminate)
Up to 105 card per hour (two-sided print and two-sided laminate)
Lamination and topcoat capabilities Topcoat or patch lamination
Superior laminate patch coverage Laminate without printing
Print Resolution:
300 dpi
Printhead:
Operator replaceable, 12 month warranty
Card Types:
All PVC and Composite PVC Cards of ISO ID-1
CR-80 size, 85.60 x 53.98 mm
Card Thickness:
Blank Card: 0.25-1.30 mm
Magnetic stripe & Smartcard: 0.50-0.8mm
Input Hopper Capacity:
100 cards (0.76 mm)
Output Hopper Capacity:
40 cards (0.76 mm)
Interface:
USB
Operating System Support:
Windows 98/2000/XP/2003/Vista
Printer Dimensions:
587.6× 252× 578 to 597mm(WxDxH)
Weight:
12.25kg
Power Supply:
100/120V, 50/60Hz, 220/240V, 50/60Hz
Operating Environment:
15° C to 35° C, 20% to 80% noncondensing humidity
Supplies:
5 Panel Color Ribbon (YMCKO): 500 cards/ribbon
Monochrome Black Ribbon (K): 1, 000 cards/ribbon
Options:
Second laminator
Magnetic stripe encoding ISO: IAT or NTT Dual high and low coercivity Tracks 1, 2 and 3 (1 track for NTT)
Smart card personalization
Contact/contactless all-in-one reader
Contact station: Prox by HID iClasss by HID
Magnetic stripe and smart card field
Upgradeability
Input hopper empty alert
Printer-PC security software
Hardware lock suite
200-card input hopper
100-card output hopper
(not available in all areas)
Customized service plans
|
Datacard SP75 Plus Technical specifications |
|
Print Method: |
Full-color or monochrome Ultraviolet fluorescent printing |
|
Print mode: |
One- or two-sided edge-to-edge printing |
|
Print speed: |
Full-color printing:
Up to 175 cards per hour (one-sided print and laminate)
Up to 165 cards per hour (two-sided print and laminate)
Up to 105 card per hour (two-sided print and two-sided laminate)
Lamination and topcoat capabilities Topcoat or patch lamination
Superior laminate patch coverage Laminate without printing |
|
Print Resolution: |
300 dpi |
|
Printhead: |
Operator replaceable, 12 month warranty |
|
Card Types: |
All PVC and Composite PVC Cards of ISO ID-1
CR-80 size,85.60 x 53.98 mm |
|
Card Thickness: |
Blank Card: 0.25-1.30 mm
Magnetic stripe & Smartcard:0.50-0.8mm |
|
Input Hopper Capacity: |
100 cards (0.76 mm) |
|
Output Hopper Capacity: |
40 cards (0.76 mm) |
|
Interface: |
USB |
|
Operating System Support: |
Windows 98/2000/XP/2003/Vista |
|
Printer Dimensions: |
587.6×252×578 to 597mm(WxDxH) |
|
Weight: |
12.25kg |
|
Power Supply: |
100/120V,50/60Hz,220/240V,50/60Hz |
|
Operating Environment: |
15°C to 35°C, 20% to 80% noncondensing humidity |
|
Supplies: |
5 Panel Color Ribbon (YMCKO): 500 cards/ribbon
Monochrome Black Ribbon (K): 1,000 cards/ribbon |
|
Options: |
Second laminator
Magnetic stripe encoding ISO: IAT or NTT Dual high and low coercivity Tracks 1, 2 and 3 (1 track for NTT)
Smart card personalization
Contact/contactless all-in-one reader
Contact station: Prox by HID iClasss by HID
Magnetic stripe and smart card field
upgradeability
Input hopper empty alert
Printer-PC security software
Hardware lock suite
200-card input hopper
100-card output hopper
(not available in all areas)
Customized service plans |
