Product Specifications
| Prod Model: |
SH7027 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plating: |
Gold or Nickel |
| Material: |
Copper |
| Interface Type: |
DB |
| Application: |
Network |
| Pin: |
9pin |
Product Description

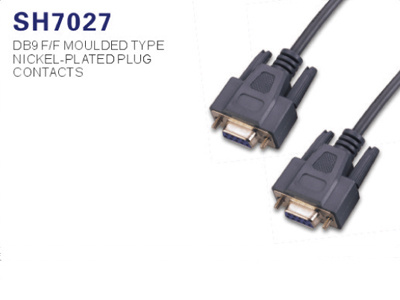

DB9, F/F moulded type/RS232 Serial Null Modem Cable
Nickel-plated plug contacts with ferrite
DB9 cable RS232 cable
DB9 RS232 FEMALE TO FEMALE SERIAL CABLE
1. Connectors: DB9 female to DB9 female
2. Used to convert an existing DB9 F-F cable
3. Fully shielded to prevent EMI/RFI interference
4. All lines wired straight through
5. DB9 Cable F-F RS232 Serial Cable
Specifications:
1. Molded hoods with molded thumbscrews
2. Single Aluminum Mylar Shield
3. Straight through pin to pin
4. Length Available: 3', 6', 10', 15', 25', 50', 75', 100'
Features:
D-Sub Data Cable Assemblies are offered from 4 to 25 conductors in 9, 15 and 25 pin configurations. The standard cable used is 24 AWG stranded shielded tinned copper PVC jacket low capacitance.
Mainly used on computer mice and keyboards (PS/2), and video equipment (SVHS)
Can easily connect and transfer from USB interface to other interface of RS232, printer, keyboard/mouse.
Data transfer function makes work and life easy
IPC compliant class 2 and up
Application:
Support over 1Mbps data transfer rate
Support remote wake-up and power management
Support Windows98/SE/2000/XP and Mac OS9.0/OSX/Linux
Support Windows Vista now
Suitable for PDA and Mondem
Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
|
Item No. |
D-SUB Cables Series |
|
Model Number |
SH7027 |
|
Cable Spec |
UL2464 28AWG*9C+1+AL OD:5.0 (Custom Spec available) |
|
D-Sub Cable Length |
6ft, 10ft, 15ft, 25ft, 50ft, 75ft, 100ft (Custom Length available) |
|
Color |
Black, Beige ,Blue(Custom Color available) |
|
Diameter |
OD:5.5mm or your request |
|
Wire Gauge |
30AWG,28AWG,26AWG or your option |
|
Conductor |
copper-clad steel(CCS),bare copper(BC),Tin plated copper(TC)(optional) |
|
Certificate |
RoHS,UL,CE,FCC |
|
Plug mould |
PVC molding, plastic shell , metal shell |
|
Connector |
nickel-palted or gold-plated |
|
Noted: |
We could arrcording to customers' requirment spec make cables |
Electrical Properties:
|
Quality Control |
100% open & short test |
|
Voltage |
DC300V 5M ohm/10ms |
|
Insulation Resistance |
10M min |
|
Contact Resistance |
2 ohm max |
|
Working Temperature |
-25C-80C |
|
Data transfer rate |
10.2Gbps Max |
|
Differential Impedance |
100±10Ω(TDR) |
