DBX 223XL Style Stereo 2-Way/Mono 3-Way Crossover

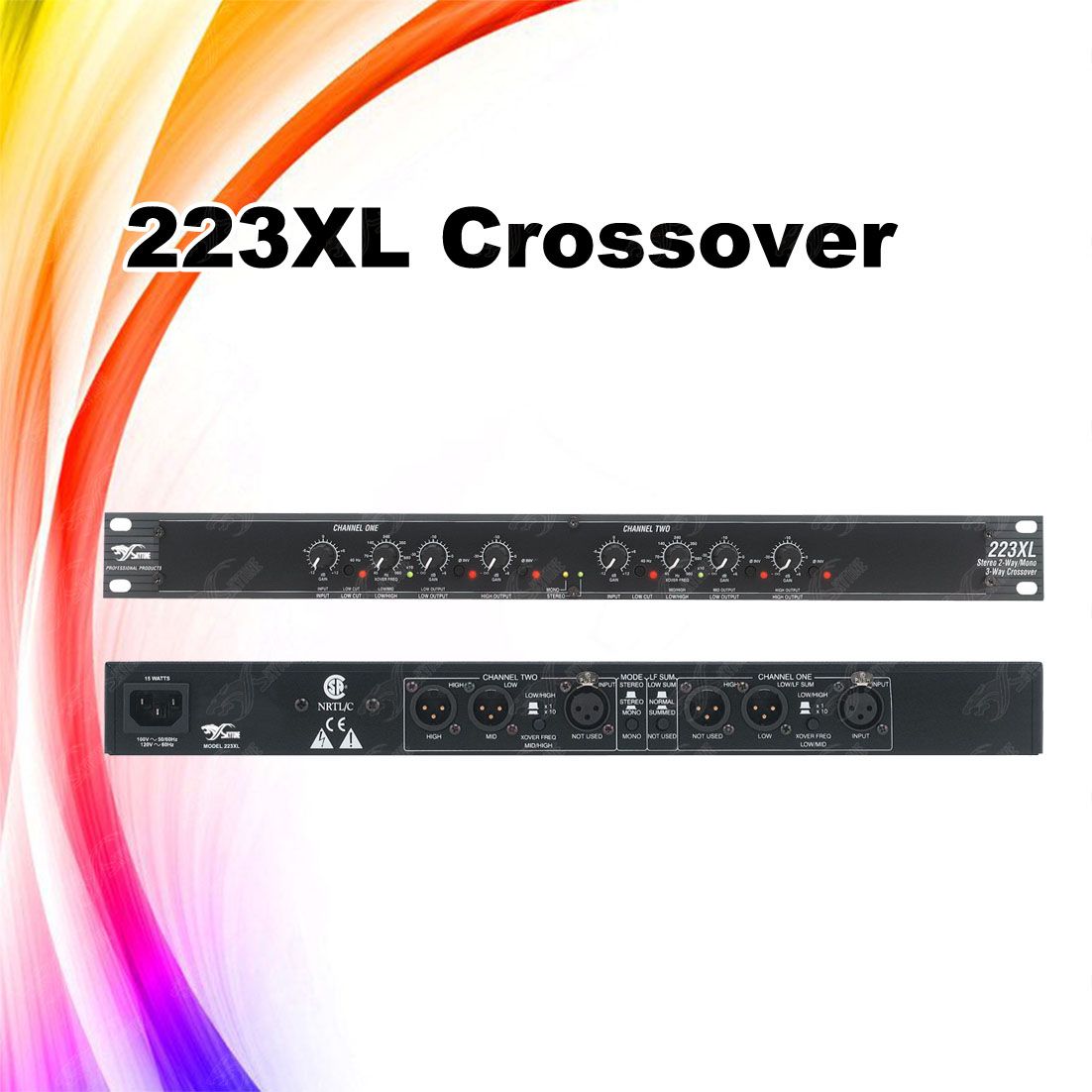

Dbx 223xl Style Crossover

All the inputs and outputs are balanced XLRs that are screwed directly to the chassis. This connection of the jacks to the chassis insures that even if someone stomps on a cable plugged into the unit, it's not going to tear up the circuit board inside. All dbx crossovers feature Linkwitz-Riley 24dB per octave filters, the professional standard.

Features:
--XLR balanced ins and outs
--Mode switch for stereo 2-way or mono 3-way operation
--Low frequency summed (subwoofer) output
--X10 range switch on both channels
--40Hz high pass (low cut) filter both channels
--Phase reverse switch on all outputs
--Individual level controls on all outputs
--24dB per octave Linkwitz-Riley filters (the professional standard)
--Stereo/Mono status LEDs indicate the selected mode
--Dbx® 2 year parts and labor as standard
--CSA NRTL/C approved

223xl Specifications
Input Connectors	1/4" TRS
Input Type	Electronically balanced/unbalanced, RF filtered
Input Impedance	Balanced >50k ohm, unbalanced >25k ohm
Max Input	>+21dBu balanced or unbalanced
CMRR	>40dB, typically >50dB at 1kHz
Output Connectors	1/4" TRS
Output Type	Impedance-balanaced/unbalanced, RF filtered
Output Impedance	Balanced 200 ohm, unbalanced 100 ohm
Max Output	>+21dBu balanced/unbalanced into 2k or greater
Bandwidth	20Hz to 20kHz, +/-0.5dB
Frequency Response	< 3 Hz to > 90 kHz, +0/-3 dB
Signal to Noise Ratio	Ref: +4 dBu, 22 kHz measurement bandwidth
Signal-to-Noise (Stereo Mode)	>94dB (Low Output), >92dB (High Output)
Signal-to-Noise (Mono Mode)	>94dB (Low Output), >93dB (Mid Output), >92dB (High Output)
Dynamic Range	> 114 dB, unweighted, any output
THD+Noise	< 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk	< -80 dB, 20 Hz to 20 kHz
Crossover Frequencies (Stereo Mode)	Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Frequencies (Mono Mode)	Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Filter Type	Linkwitz-Riley, 24 dB/octave, state-variable
Low cut Switch	Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
Phase Invert Switch	Inverts the phase at the output, one switch per output.
x1 / x10 Switch	Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
Mode Switch	Selects stereo 2-way or mono 3-way operation and disables all LEDs for controls that are non-functional in the selected mode.
LF Sum Switch	Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2's low output phase invert LED to indicate that this output is not operational in the LF sum mode.
Indicators	Stereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert (Red-per output)
Operating Voltage	100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC50 HZ
Power Consumption	15W
Power Connector	IEC receptacle
Dimensions	1.75" H X 19" W X 6.9" D (4.4cm x 48.3cm x 17.5cm)
Unit Weight	3.7 lbs. (1.7 kg)
Shipping Weight	5.4 lbs. (2.5 kg)
