Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Application :
High rellability by S.M.T & TQC.(Surface Mounting Technology)
High Isolation over than 50MQ/500VDC
High dielectric over than 2.5KV
Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible.
Low EMI/EFI& surge by Zeero cross Trigger Method.
High surge current duration,over 10 Times of rated current/one cycle.
High surge voltage duration by snubber circuit.
Zero Cross Trigger Method
Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring.
Specially suited to control resistive,capacitive and Non-saturated inductive loads |
|
Variable resistance control method
Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC |
|
Application Hints :
Input |
NPN | Output | NO |
Input |
NPN | Output | NO |
Input |
NPN | Output | NO |
|
|
|
Input |
NPN | Output | NO |
Input |
NPN | Output | NO |
Input |
NPN | Output | NO |
|
|
|
|
Type
|
Standard type |
High voltage type |

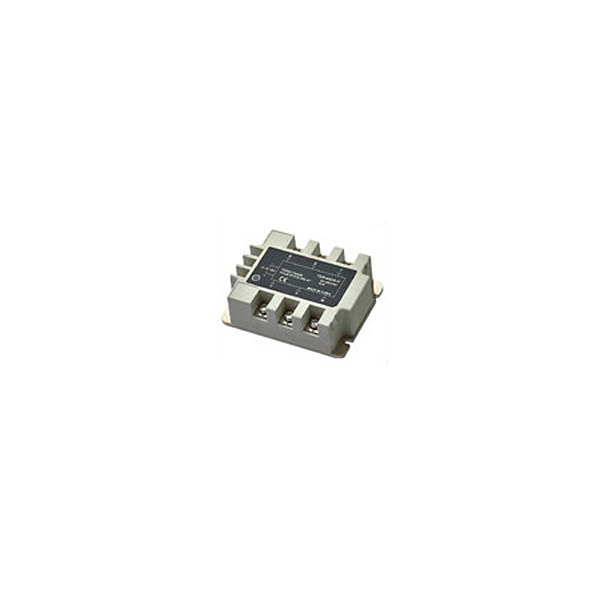

Model |
TSR-15DA |
TSR-25DA |
TSR-40DA |
TSR-75DA |
TSR-15DA-H |
TSR-25DA-H |
TSR-40DA-H |
TSR-75DA-H |
Rated load current |
15A |
25A |
40A |
75A |
15A |
25A |
40A |
75A |
Input voltage |
4-32VDC |
Min. on/off voltage |
ON>3.6V, OFF<2.4V |
Trigger current |
7.5mA/12V |
Control method |
Zero cross trigger |
Operating voltage |
24-380VAC |
90-480VAC |
Min. black voltage |
600VAC |
Peak voltage |
Over 1200V |
Max. durated current |
175A |
275A |
410A |
820A |
175A |
275A |
410A |
820A |
Leakage current |
12.5mA@380V |
15.5mA@440V |
Response time |
ON<20ms/OFF<20ms |
Dielectric strength |
Over 2.5KVAC/ 1min. |
Isolation strength |
Over 50M/500VDC |
Operating temperature |
-20ºC~+80ºC |
Weight |
390G |
Dimension and connection diagram : |
|
