DC Cable and Wire High Voltage Test Machine Lx-8983
Price: |
US $ 1300-1500/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |

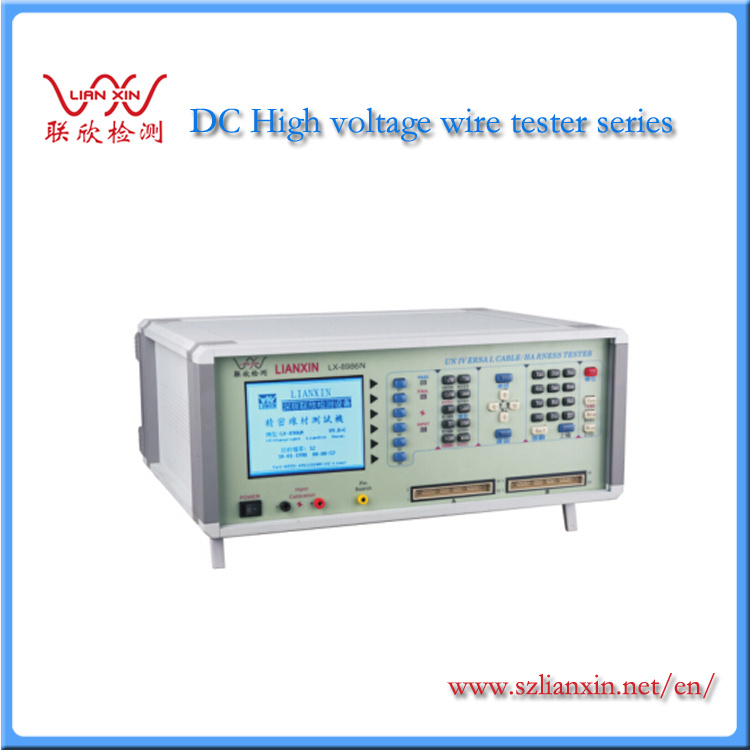

LX-8983 DC Cable and wire high voltage Test machine
Technical specificationTest Items | LX-8983N | LX-8983HV | LX-8983NC2 | LX-8983HVC2 |
Test Voltage | 200-700VDC | 200-700VDC 100-500VAC | 200-700VDC | 200-700VDC 100-500VAC |
Test Points | 128P | 128P | 256P | 256P |
Conduction resistance test (Correct to0.01Ω) | 0.01-50Ω | 0.01-50Ω | 0.01-50Ω | 0.01-50Ω |
Insulation impedance | 1MΩ-500MΩ | 1MΩ-1000MΩ | 1MΩ-500MΩ | 1MΩ-1000MΩ |
Leakage current | -- | 0.1-5mA | -- | 0.1-5mA |
Product features | Provide advanced short circuit,open circuit, Dislocation conduction resistance, high voltage insulation, leakage current and the instantaneous short/open circuit test (LX-8983N/LX-8983NC2 No leakage current test) |
The system automatically scan and automatic Point Search |
Provide resistance, capacitance and diode component measurement |
Provide unilateral, standards, and more functions |
System will provide statistics and printing function, and provide statistical analysis of the defective product |
Remote monitoring and RS232 communication interface |
The system will provide the file storage and management functions |
Provide 320 x240 all Chinese/English graphic liquid crystal display screen |
Prod Model: |
LX-8983 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Test Region: |
Forming Cable |
Test Mode: |
Point and Two Side and One Side Test |
Color: |
Same as Picture |
Shenzhen Lianxin testing equipment Co., Ltd(Referred to as "LianXin detection", )with HongKong LianXin testing equipment is a global professional wire and cable, Mobile phones and environmental testing equipment research and development, Production and sales of high-tech enterprises. With excellent working environment and the advanced production equipment, Also introduced a number of highly qualified knowledge and technical personnel and marketing elite, For the company has been rapid development has laid a solid foundation.
The company's products are widely used in wire and cable, connectors, LED, photoelectric, electric power, electronic and network communications and other industries and departments, Mainly includes:
1. All kinds of environmental simulation test equipment(Constant temperature and humidity, thermal shock, Rapid temperature change, aging, UV, etc);
2. All kinds of DC wire tester, AC double head plug wire tester;
3. All kinds of wire and cable equipment and appliances experiment equipment(Swing machine, salt spray machine, pulling machine, insertion force testing machine, etc);
4. All kinds of mobile phone simulation test equipment(Flip, slide, falling, click on the line, such as key life test etc. );
5. All kinds of safety equipment(High pressure/pressure gauge, low resistance, insulation resistance, digital bridge, etc);
6. All kinds of environment the calibration equipment.
Our company with domestic and foreign large and well-known enterprise or its affiliated companies to maintain good, the good faith cooperation. Such as "the same continents, BYD, Samsung Group, " and so on, Is the most powerful in the same industry at home and abroad with the size of the testing instrument producer.
Products are exported to all over the world, deeply the customer high praise. Company in Vietnam, South Korea, India, Hong Kong, Shanghai, zhejiang, changsha, Beijing, guangzhou, zhuhai, foshan, dongguan, such as setting up branch office, Forming technology service network, for users across the country to provide professional technical services. Company to fully implement the customer is supreme principle, Set up to the quality strives for the development, the service strives for the survival of development policy, with customers to establish long-term friendly relations of cooperation.
