Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Portable |
| Power Source: |
AC Power |
| Type: |
Reciprocating |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Mute |
Product Description

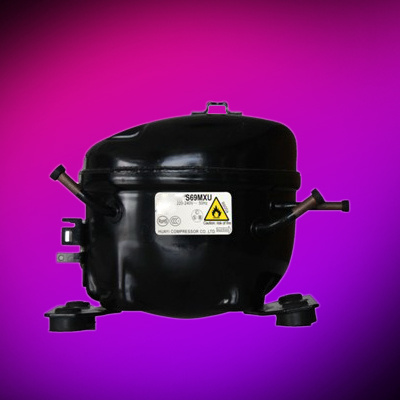

Series: R600a Compressor (LBP)
Type: HYS Serie
Cooling capacity range: 100~140W
COP value: 1.25~1.88W/W
We mainly produce high efficient, superefficient compressors which adapts R600a, R134a, R404A, R209 environmental refrigerants. The compressors are mainly divided into several frequency conversion such as SL, SLB, SLE etc. And can be applied for the water dispensers, small ice-makes, small wine cabinets, and other refrigeration appliances. The structures of our compressors are hermetical crank connecting-rod reciprocating pist on type, and adopt semi-direct inlet type. Our compressors range from 12V to 312V, mainly 115V, 220-240V. Both DC and AC compressors are available.
Our compressors mainly feature in small space, high efficiency, low noise, light vibration, good reliability.
We have passed the following certificates: CE, CCC, ROHS, REACH.
We warmly welcome customers' inquiry from all over the world.
Test conditions According to ASHRAE
Evaporating temperature -23.3° C
Condensing temperature 54.4° C
Subcooling temperature 32.2° C
Suction temperature 32.2° C
Ambient temperature 32.2° C
Working condition limit: R600a
Max ambient temperature 43[° C]
Evaporation temperature range -35~-15[° C]
Working voltage range. 187~254[V]
Max discharge pressure 0.98[Mpa](gauge pressure)
Max allowable housing temperature 95[° C]
Max discharge temperature 110[° C]
Max pressure housing endured 2.4[Mpa](gauge pressure)
Low voltage start 0.2/0.2Mpa(gauge pressure)187V
Attention
1. Please follow the transportation warning marks on the package for layer limitation. Do not roll the whole packages when loading or unloading.
2. Please keep the compressor always vertically and never upset it during transportation while avoiding any vibration and shock.
3. Tumbled compressor cannot be guaranteed for norm operation.
4...Storage expiry is 6 months from the date of production. If it expired, please check the nitrogen pressure inside compressor and recharge it when it is necessary.
5. After pulling off rubber plugs from the compressor tubes, please connect the compressor to the refrigeration system within 5minutes. It is advisable to take off the first plug from discharge tube.
6. High voltage test or start test is not permitted under vacuum condition.
7. Avoid liquid refrigerant flow into the compressor.
8. The earth connection should be fixed firmly.
9. The compressor must be mounted horizontally without tilting an angle more than 5.
10. The compressor must not be restarted unless at an interval of more than 5 minutes.
11. Antifreeze and other unspecified oil is not allowed to use in compressor.
|
Series |
Model |
Voltage(V) |
Frequency(Hz) |
CoolingType |
Displacement(cm3) |
Capacity(W) |
COP(W/W) |
MotorType |
Certification |
Height(mm) |
|
R600a Compressor (LBP) |
SLS81MTU |
220-240~ |
50 |
ST |
8.1 |
138 |
1.72 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS69MHUL |
220-240~ |
50 |
ST |
6.9 |
120 |
1.25 |
RSIR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS60MTUL |
220-240~ |
50 |
ST |
6 |
100 |
1.72 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS69MTUL |
220-240~ |
50 |
ST |
6.9 |
120 |
1.72 |
RSIR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS69MGU |
220-240~ |
50 |
ST |
6.9 |
120 |
1.6 |
RSCR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS69MGUL |
220-240~ |
50 |
ST |
6.9 |
120 |
1.55 |
RSCR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS69MKU |
220-240~ |
50 |
ST |
6.9 |
120 |
1.65 |
RSCR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS81MKU |
220-240~ |
50 |
ST |
8.1 |
138 |
1.65 |
RSCR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS55MTU |
220-240~ |
50 |
ST |
5.5 |
92 |
1.74 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS60MKUL |
220-240~ |
50 |
ST |
6 |
100 |
1.65 |
RSIR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS69MTU |
220-240~ |
50 |
ST |
6.9 |
120 |
1.72 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS81MKUL |
220-240~ |
50 |
ST |
8.1 |
138 |
1.65 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS55MSU |
220-240~ |
50 |
ST |
5.5 |
93 |
1.83 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS60MSU |
220-240~ |
50 |
ST |
6 |
100 |
1.83 |
RSCR |
CCC/VDE |
159.5 |
|
R600a Compressor (LBP) |
SLS69MSU |
220-240~ |
50 |
ST |
6.9 |
120 |
1.83 |
RSCR |
CCC/VDE |
159.5 |
|
R600a Compressor (LBP) |
SLS55MXU |
220-240~ |
50 |
ST |
5.5 |
93 |
1.88 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS69MXU |
220-240~ |
50 |
ST |
6 |
100 |
1.88 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS69MXU |
220-240~ |
50 |
ST |
6.9 |
120 |
1.88 |
RSCR |
CCC |
159.5 |
|
R600a Compressor (LBP) |
SLS69MKUL |
220-240~ |
50 |
ST |
6.9 |
120 |
1.65 |
RSCR |
CCC |
153 |
|
R600a Compressor (LBP) |
SLS69MKUL42 |
115~ |
60 |
ST |
6.9 |
140 |
1.65 |
RSCR |
UL |
159.5 |
|
R600a Compressor (LBP) |
SLS60MTU |
220-240~ |
50 |
ST |
6 |
100 |
1.74 |
RSCR |
CCC/VDE |
159.5
|
