Product Specifications
| Prod Model: |
QJ42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measure Method: |
Automatic |
| Display Type: |
Mechanical Hand |
| Material: |
Stainless Steel |
| Function: |
Counting Scales |
| Accuracy: |
0.0001g |
| Weighing: |
<30kg |
| Application: |
Special Scales |
Product Description

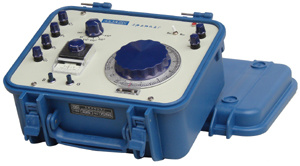

Model QJ42 DC Double Bridges is portable DC resistance bridge, which is designed based on Kelvin bridge circuit. These instrument is provided with built-in null- indicator and internally attachable power supply, so that it is suitable to be used in industrial enterprises, laboratories, and outdoor sites to make precise measurement to DC low resistance. For example it can measure the conductivity of metals, the winding resistance of electric motors and transformers, and the contact resistance of electric-brushes and switches. It also can be used to carry out temperature elevation test, and so on.
Total Range: 5μΩ-11.00Ω
Power Supply: 1.5V(six parallel 1.5V A1 batteries)
Null Indicator Power: 9V(two parallel Type 6F22 stacked batteries)
Dimensions: 230(W)X200(H)X140(D)mm
Weight: 2.5Kg
Specifications:
Multiplying Power Effective Span Resolution Accuracy
X10-4 0.100~1.100 MΩ 5µ Ω 5
X10-3 1.00~11.00MΩ 50µ Ω 5
X10-2 10.0~110.0MΩ 500µ Ω 2
X10-1 0.100~1.100Ω 5MΩ 2
X1 1.00~11.00Ω 50MΩ 2
