Product Specifications
Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
Configuration: |
Stationary |
Power Source: |
AC Power |
Type: |
Screw |
Product Description

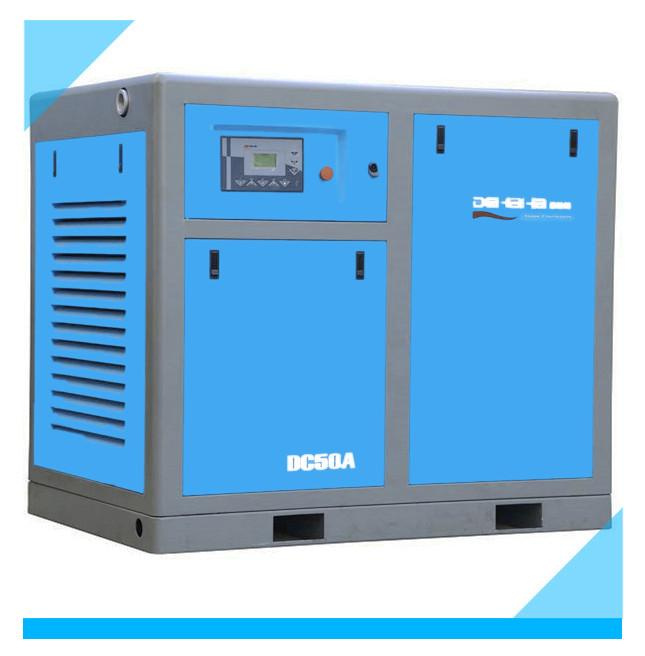

DC frequency screw air compressor 12.8m3/min, 8kg
1. Reliable quality, competitive price
2. German Air end, 10 years manufacture experience
3. Perfect service network
4. Easy to install, operate, maintent.
5. Low noise, Low engergy consumption, Low runing, Low maintenance cost.
6. Aptitude and intelligent Control, PLC control, LCD displayer.
DHH | Air flow Capacity (m 3 /min)/cfm | Power | Noise | Outlet diameter | Dimension | Weight |
MODEL | 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW | HP | DB(A) | INCH | W× D× H mm | Kg |
m 3 | cfm | m 3 | cfm | m 3 | cfm | m 3 | cfm | | |
DCF-30A | 3.6 | 127.1 | 3.4 | 120 | 3.2 | 113 | 2.8 | 98.9 | 22 | 30 | 68 | G1” | 1300× 920× 1100 | 730 |
DCF-50A | 6.5 | 229.5 | 6.2 | 219 | 5.6 | 197.8 | 4.9 | 173 | 37 | 50 | 69 | G1 1/2” | 1450× 1000× 1240 | 950 |
DCF-75A/W | 10.1 | 356.7 | 9.5 | 335.5 | 8.5 | 300.2 | 7.5 | 264.9 | 55 | 75 | 70 | G2” | 1720× 1200× 1340 | 1750 |
DCF-100A/W | 13.6 | 480.3 | 12.8 | 452 | 12.3 | 434.4 | 10.2 | 360.2 | 75 | 100 | 72 | G2” | 2010× 1260× 1460 | 1980 |
DCF-125A/W | 16.1 | 568.5 | 15.5 | 547.4 | 14.0 | 494.4 | 12.5 | 441.4 | 90 | 125 | 72 | DN50 | 2010× 1260× 1460 | 2580 |
DCF-150A/W | 21.2 | 748.7 | 19.6 | 692.2 | 17.8 | 628.6 | 15.5 | 547.4 | 110 | 150 | 73 | DN65 | 2300× 1600× 1790 | 2900 |
DCF-175A/W | 24.1 | 851 | 23.2 | 819.3 | 20.5 | 724 | 17.8 | 628.6 | 132 | 175 | 74 | DN65 | 2300× 1600× 1790 | 3100 |
DCF-220A/W | 28.8 | 1017 | 27.8 | 981.7 | 25.0 | 882.9 | 22.4 | 791 | 160 | 220 | 75 | DN80 | 2500× 1700× 1850 | 3600 |
DCF-250A/W | 32.5 | 1147.8 | 31.2 | 1101.8 | 28.0 | 988.8 | 25.8 | 911 | 185 | 250 | 77 | DN80 | 2500× 1700× 1850 | 3980 |
DCF-270A/W | 34.5 | 1218.4 | 34.0 | 1200.7 | 30.5 | 1077 | 28 | 988.8 | 200 | 270 | 76 | DN80 | 2500× 1700× 1850 | 4350 |
DCF-300A/W | 36.8 | 1299.6 | 34.7 | 1225.4 | 31.5 | 1112.4 | 29.5 | 1041.8 | 220 | 300 | 80 | DN100 | 2800× 1900× 1950 | 4950 |
DCF-350A/W | 43.0 | 1518.5 | 41.5 | 1465.6 | 38.0 | 1342 | 34.9 | 1232.5 | 250 | 350 | 78 | DN100 | 2800× 1900× 1950 | 5300 |
DCF-375A/W | 51.35 | 1813.4 | 50.59 | 1786.6 | 46.06 | 1626.6 | 41.51 | 1466 | 280 | 375 | 82 | DN125 | 4200× 2200× 2240 | 7600 |
DCF-400A/W | 56.79 | 2005.5 | 55.95 | 1975.9 | 50.08 | 1768.6 | 45.62 | 1611 | 315 | 400 | 82 | DN125 | 4200× 2200× 2240 | 7600 |
DCF-450A/W | 66.08 | 2333.6 | 65.43 | 2310.6 | 55.12 | 1946.5 | 49.58 | 1750.9 | 355 | 450 | 83 | DN125 | 4200× 2200× 2240 | 8200 |
DCF-500A/W | 75.05 | 2473.8 | 74.31 | 2624.2 | 64.46 | 2276.4 | 58.07 | 2050.7 | 400 | 500 | 83 | DN125 | 4200× 2200× 2240 | 8200 |
Shanghai DHH Screw Compressor Co., Ltd is high-tech enterprise, which specialized in the R&D and production and exporting of air compressor system equipment over 15 years experience.
---ISO 9001 and CE TUV certified
---Global competitive price and guaranty
---High quality integrated with Germany technology
---Customers over 20 countries in the world
---Supply OEM (customer's logo) for distributors
DHH always make superior quality screw air compressor because of adopting Germany advanced production technology and European famous brands machine parts for compressors.
Shanghai DHH screw compressor Co., Ltd has an experienced expert team, not only provide users with high-quality and high-efficiency compressed air system equipment, but also provide users with optimum air system solutions during before-sale, sale and after-sale services.
Our products are available in 40 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, France, U. K., Germany, Italy, Spain, Poland, Russia, Ukraine, Australia, U. A. E, Saudi Arabia, Egypt, Thailand, Vietnam, Malaysia, Indonesia, India, Iran, South Africa, Colombia, Mexico, Argentina, Brasil, Chile, etc.
More information about us and our products, please visit our website.
