Product Specifications
| Markets: |
North America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |

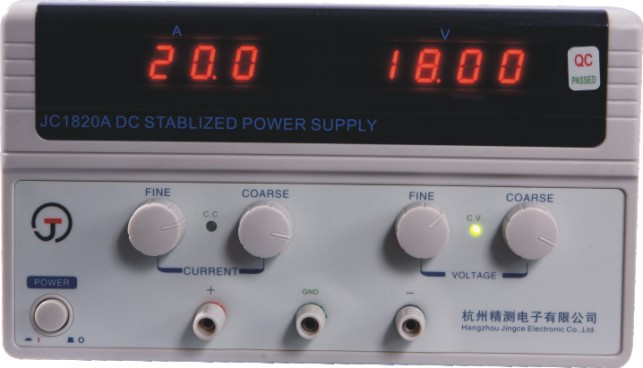

Product Description
Adjustable voltage and current: Adjustable voltage and current from 1 to raing value
LED digital display: There are three digits to display voltage and current
Voltage display resolution ratio is 0.1V, and current is 0.1A
Constant pressure and constant flow function: When the output value exceed the setting value, the DC power supply will limit automatically to make it within setting value constantly. It indicate "CV" when it is constant pressure, and indicate "CC" when it is constant flow. The "CC" and "CV" will be changed automatically according setting value.
Overload, Short circuit protective: When it is overload, the output value is setted automatically within the limits; When it is short circuit, the output value is stopped immerdiately to protect the DC power supply
Current is more than 10A to be output from the back-end
Input voltage: AC220V± 10% 50Hz
Size: 155x255x450(mm)
|
Model |
JC1820A |
JC3020A |
JC6010A |
JC10005A |
|
Rated Output Value |
Voltage |
18V |
30V |
60V |
100V |
|
Current |
20A |
20A |
10A |
5A |
|
Power |
360W |
600W |
600W |
500W |
|
Load Effect |
Voltage |
≤ 4.8mV |
≤ 6mV |
≤ 6mV |
≤ 6mV |
|
Current |
≤ 43mA |
≤ 7mA |
≤ 9mA |
≤ 9mA |
|
Source Effect |
Voltage |
≤ 4.8mV |
≤ 6mV |
≤ 6mV |
≤ 6mV |
|
Current |
≤ 43mA |
≤ 7mA |
≤ 9mA |
≤ 9mA |
Ripple
(5Hz-1MHz) |
CV pp |
≤ 4mV |
≤ 4mV |
≤ 4mV |
≤ 4mV |
|
CV rms |
≤ 2mV |
≤ 2mV |
≤ 3mV |
≤ 3mV |
|
CC rms |
≤ 20mA |
≤ 3mA |
≤ 3mA |
≤ 3mA |
|
Read-back Accuracy |
Voltage ± 1%+ |
20mv |
20mv |
20mv |
200mv |
|
Current ± 2%+ |
200mA |
20mA |
20mA |
20mA |
|
Input Voltage |
AC220V± 10% |
Size
W*H*D(mm) |
155*255*450 |
Net weight
(kg) |
13.6 |
13.7 |
13.6 |
13.5 |
