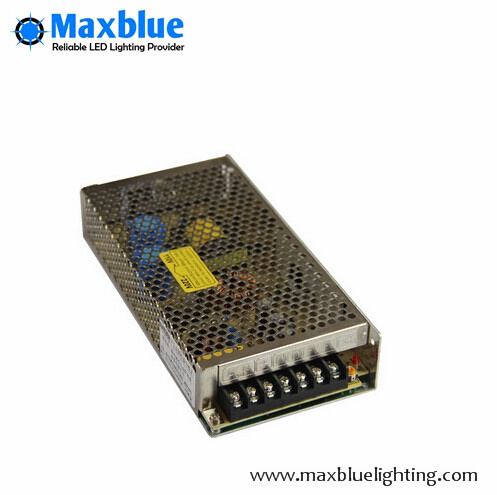

DC12V 120W PWM Constant Voltage Power Supply

Name: DC12V 120W PWM Constant Voltage Power Supply
Brand: china-manufacturer-directory.com
SKU: 702045792
Availability: InStock
Rating: 4.6 (150 reviews)

Supplier:	Shenzhen Maxblue Lighting Co., Ltd.
Price:	US $ 9/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	MBS--120-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	>2years
Weight:	0.62kgs
Package:	19.8kgs/30PCS
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled

Product Description

DC12V 120W LED Power Supply Description:
DC12V 120W PWM Constant Voltage Power Supply for LED Products

DC12V 120W LED Power Supply Specification

AC Input	85-132VAC, 170~264VAC 47-63Hz
DC output	DC12V 0~10A
Adjustable range for DC voltage	± 10%
AC Inrush current	Cold-start current 15A/115V 30A/230V
Over Load Protection	105%-150% rated output power
Over Voltage Protection	115%-135% hiccup mode, auto-recovery
Withstand voltage	I/P-O/P: 1.5Kv I/P-FG: 1.5KV O/P-FG: 0.5KV 1minute
LINE REGULATION	± 0.5%
Load REGULATION	± 1%
Efficiency	81%
Working temperature	-10º C - +50º C, 20%~90% RH
Safety Standards	Design refer to U11012, TUV EN60950-1 approved
EMC Standards	Design refer to EN55022 Class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, ENV50204
Connection Way	7pins 9.5mm
Weight	0.62Kg

Protection: Short circuit / Over load protection/ Over voltage protection
Indoor use, Non-waterproof

Delivery time: 7-10 working days

Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor LED lighting and commercial LED decoration, devoting to delivering eco-friendly, affordable and stable LED products for the customers. Now we focus on LED flexible strip, LED linear light, LED COB downlight, LED panel light, LED track light, LED wall washer etc.

With our ISO9001: 2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.

Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
