Product Specifications
| Prod Model: |
DC2-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China(Mainland) |
| Application: |
Submarine Cable |
| Conductor Material: |
Plastic |
| Cover Material: |
PE |
| Type: |
Step Index Model |
| Wire Core Material: |
PMMA |
| Model: |
Dcwvz2-1.0/2.2*4.4/6.0 |
| Brand: |
Huiyuan |
Product Description

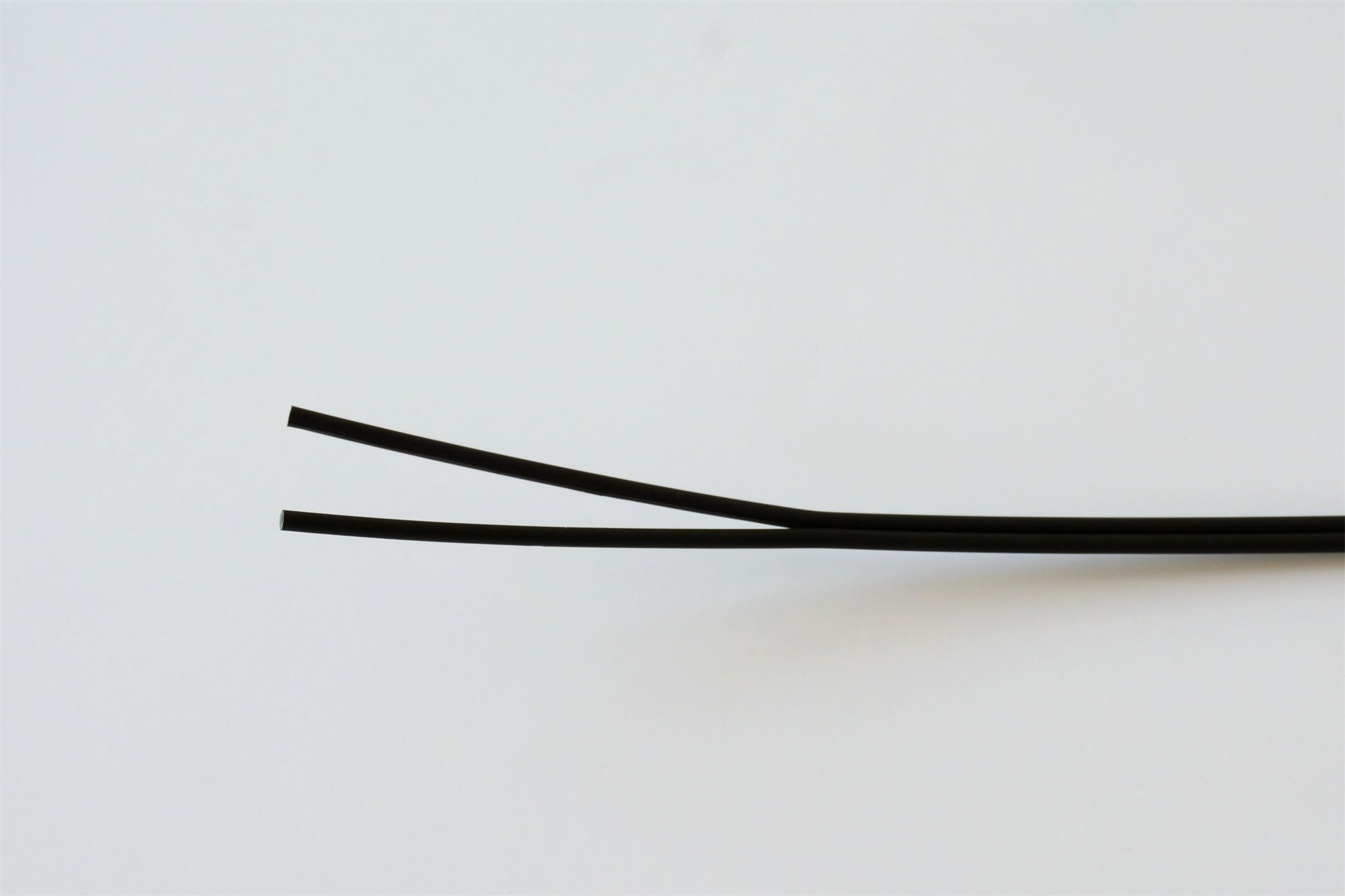

DC2-1000 Parallel Duplex Plastic Optical Cable
1. Description It is made of 2 pieces of parallel POF cable, of "8"structure. Have all features of CC series plastic optical fiber cable. Providing easy construction work, saving cable-occupied space and delivering smoother look. Comply with the YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.2. Specifications| Model | Fiber dia. (mm) | Cable dia. (mm) | Coil length (m) | Cores |
| DC2-1000 | 1.0±0.06 | 2.2×2±0.1 | 500 | 2 |
3. Technical Parameters | Parameters | Unit | Numerical value |
| Fiber material | --- | PMMA/Fluororesin |
| Jacket material | --- | PE |
| Attenuation | dB/m | ≤0.2 |
| NA | --- | 0.5 |
| Wavelength | nm | 650 |
| Incident angle | --- | ≤60° |
| Bandwidth | MHz· 100m | ≥10 |
| Bend radius | --- | ≥10times of fiber diameter |
| Operating temperature | ºC | -40~85 |
| Storage temperature | ºC | -40~85 |
| Refractive index | --- | Step index |
4. ApplicationsSensor signal transmission;
Industrial control signal transmission;
Audio signal transmission;
Special LAN or access network;

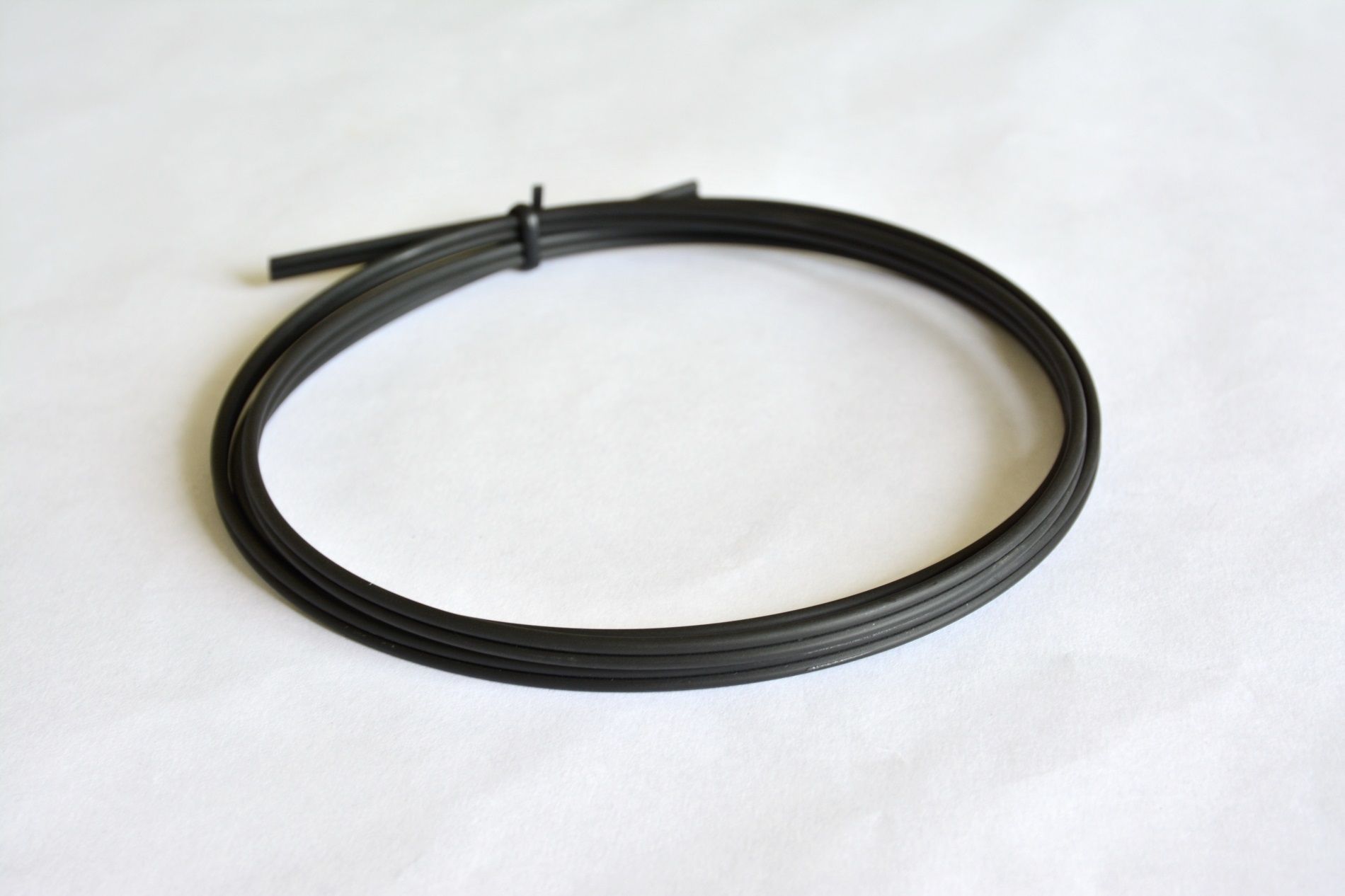

Auto multimedia signals or control signal transmission;Military equipment.5. Product Pictures
Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.
Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.
It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.
We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
