Product Specifications
| Prod Model: |
BY-LP2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12mm |
| Voltage: |
DC5V |
| Power: |
0.3W |
| Chip: |
Epistar |
| String: |
50PCS a String |
| Beam Angle: |
120 Degrees |
| Warranty: |
2 Years |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
12mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Text Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
1024 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Dot Matrix Display |
| Application: |
Advertising |
| Certification: |
CCC |
Product Description

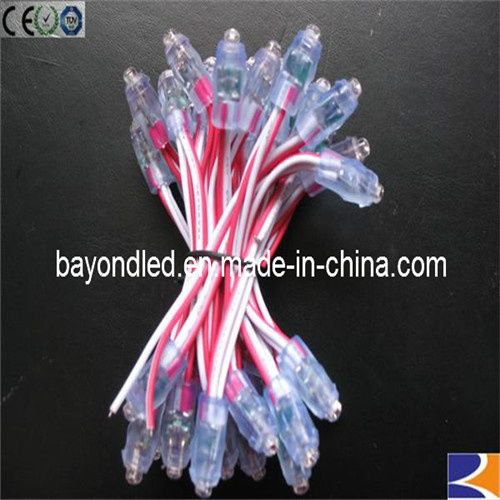

LED Pixel Light 9mm LED Pixel Module DC5V IP67
LED Pixel, LED Pixel Light, led lighting, pixel, led stage display, lighting decoration, led dot matrix, led light, module light, led curtain display, building lighting, led screen, led display, led pixel module, led pixel board, pixel led controller
Features:
1) This product could be linked up to 50PCS. Punching diameter is 12mm.
2) This product can achieve effects of full-color running water, chasing and scanning.
3) Depending on the different installation methods may compose different dynamic effect of different color's character and design.
4) Easy installation, high brightness, safe and energy conservation, long lifespan, low brightness declines.
5 Widely used in LOGO, advertisement billboard, exposed luminous characters, painted screen, can replace the traditional neon signs.
6) The spacing between lamps can be chose according to the building height.
7). Various color options including Red, Yellow, Blue, Green, White, RGB, RGB IC Full Color
Applications:
1. Channel letter lighting
2. Advertising signage lighting
3. Lighting source for light box, lighting box
4. Advertisement bill board inside LED lighting
5. Decorative lights for holiday, event, show, and exhibition
6. DIY lighting and home decoration use
Instruction of installing:
1. DC5V for single color pixel LED lights and DC12V for single color; Please use the matched power supply
2. The size of the wirelines is at least 4 sq mm to keep the power low wastage
3. The single color pixel LED lights: The white wireline is negative, conect to the negative of the driver;
4. The single color pixel LED lights: The colorful wireline is positive, conect to the positive of the driver;
5. If any light doesn't work, please check the LED lights and wirelines, if the problem is not the wirelines, please change a new one to test.
6. RGB seven color pixel LED lights: The yellow wireline is positive, connect to the positive of the power supply. The red, green and blue wirelines are negative; Connect to the controller; Please note that have to connect the matched port in the controller--R, G, B port.
7. RGB full color pixel LED lights: The red wirelien is positive, connect to the positive of the power supply. The yellow wireline is Data, the green wirelin is clock; The blue wireline is negative; Need connect these 3 wirelines into the matched port in the controller. Please note that also need connect the blue wireline to the negative of the power supply.
Notes:
1. When connecting the wirelines to the power supply, please careful, if wrongly, the lights will not work.
2. Please don't' connect the lights to AC220V, or the lights will be damaged.
3. The diameter of puching hole is at 9mm, 12mm, 16mm. Please punch the hole based of the diameter of lights. The pitch between lights is from 20-50mm, please design it according of the project. Generally, more close, more bright and also more expensive the cost.
4. Installing lights: Please clean the frame ahead before installing lights, For RGB full color pixel LED lights, please exactly install as the diagram.
5. Connecting: Generally, the wastage of power is about 20%; So not connect all the lights together only by one line wireline. For keeping every light enough power, have to use several wirelines according to the projects, we advise that every 300PCS lights share 1PCS wirelines, and connect to the power supply directly.
Shipment and Payment:
| Voltage | DC12V |
| Color | RGB/colorful/single |
| Led type | dip led |
| Led QTY | 1PCS |
| Power | 0.3W |
| Package | 50pcs a string |
| Size | 9/12mm |
| LED Lifespan | 50,000 hours |
| Beam Angle | 120degrees |
| IP Rating | IP67 |
| Warranty | 2 years |
| Certificate | CE ROHS EMC LVD |
