Product Specifications
| Prod Model: |
DD862 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Maximum Demand Meter |
Product Description
Product Description

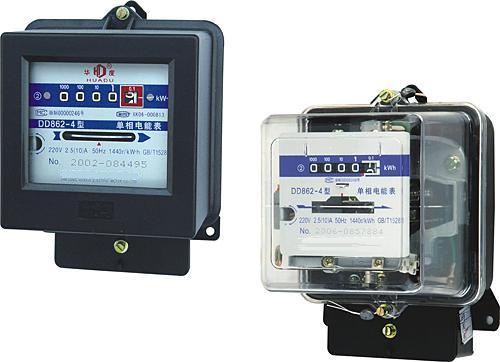

The DD862 type single phase watt-hour meter is a kind of induction type meter, which is applicable to measure the rated frequency 50Hz and power loss in electrified-wire netting. The meter has novel design, rational structure and features of high over load, low power loss and long life etc. All technical targets are completely conformed to the stipulated requirement of national stand GB/T17215.311-2008 class 0.5, 1 and 2 AC active watt-hour meter and internal standard IEC60521.
Function and Features
-Sub-closed iron core;
-The die-casting frame is made of alloy aluminum, to assure the magnetic line stably and reliably;
-Meter bearing has three kinds, may select dual jewel, magnetic thrust or magnetic float;
-May select 5+1 digits or 6 digits register;
-May select 5 kinds of cases: Bakelite, PC, ABS plastic, glass and Aluminum.
Main Technical Data
Type
Rated
Voltage
Rated Current
Accuracy
Overload Capacity
Starting Current
Insulation
Performance
DD862
220V
1.5(6)A, 3(6)A,
2.5(10)A, 5(20)A,
10(40)A, 15(60)A,
20(80)A, 30(100)A
2
4 - 6 lb
0.5% lb
AC voltage 2KV
For 1 min impulse
Voltage 6KV
