DDR3 Intel Chipset G33-775 Motherboard Supports 1333/1066/800/533MHz Fsb

Product Specifications

Prod Model:	G33-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chipset:	Intel G33+Ich7
Fsb:	1333/1066/800/533MHz
Size:	240mm X 170mm
Northbridge:	Intel G33 Chipset
Southbridge:	Intel+Ich7
Shipping Time:	2-4 Working Days
Shipping Way:	DHL /UPS / FedEx
Origin Of Place:	Shenzhen ,China
Products Logo:	for Your Optional
Main Chipset:	Intel
Structure:	ATX
Memory:	DDR3
CPU Socket:	LGA 775

Product Description

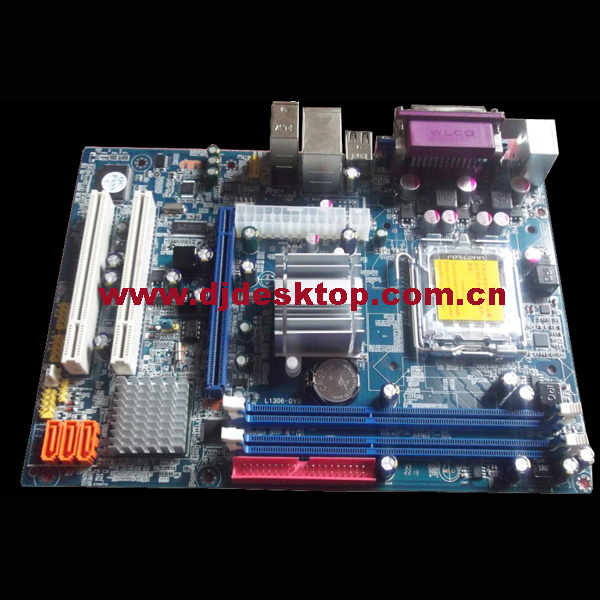

Intel Motherboard G33 Chipset 775 Socket Support DDR3


1. Intel G33+ICH7 Chipset, LGA 775, Supports 1333/1066/800/533 MHz FSB
2. Supports 2*DDR3 1333/1066/800 memory, Dual Channel, Biggest 8GB by 2 slots
3.3*SATA, 4*USB2.0, 1*VGA, 1*PCI Express x16, 1*PCI Express x1
4. Realtek 8105E 10/100M LAN Controller


CPU
LGA775 for Intel Core 2 Extreme quad-core / Core 2 Extreme dual-core / Core 2 Quad / Core 2 Duo Pentium processor Extreme Edition/ Pentium 4 / Celeron D/P4
Supports 1333/1066/800/533MHz FSB
Chipset
Northbridge: Intel G33 chipset
Southbridge: Intel+ICH7
Memory
Supports 2*DDR3 1333/1066/800 memory
Dual Channel architecture support up to 8GB by 2 DIMM slots
Graphics
Intel Graphics Media Accelerator 3100
1* VGA port
Audio
Realtek ALC662 6 Channel Audio Codec
LAN
Realtek 8105E 10/100M LAN Controller
Expansion Slot
1 *PCI Express X16 slot
1 *PCI slots
I/O Connectors
3 *SATA 3Gb/s connector
1 * front panel connector
1 * front audio connector
4 * USB 2.0/1.1 connector
4 *USB 2.0/1.1 port
1 *COM port
1 * PS/2 port
1 * VGA port
1 *RJ-45 port
1 *LPT port
1 *audio jacks
On Board Ports
24 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORTc
4*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
240mm x 170mm
PACKING
20PCS IN ONE CARTON

CPU

LGA775 for Intel  Core 2 Extreme quad-core / Core 2 Extreme dual-core / Core 2 Quad / Core 2 Duo                                                                                 Pentium  processor Extreme Edition/ Pentium 4 / Celeron D/P4

Supports 1333/1066/800/533MHz FSB

Chipset

Northbridge: Intel  G33 chipset

Southbridge: Intel+ICH7

Memory

Supports 2*DDR3 1333/1066/800 memory

Dual Channel architecture support up to 8GB by 2 DIMM slots

Graphics

Intel  Graphics Media Accelerator 3100

1* VGA port

Audio

Realtek ALC662 6 Channel Audio Codec

LAN

Realtek 8105E 10/100M LAN Controller

Expansion Slot

1 *PCI Express X16 slot

1 *PCI slots

I/O Connectors

3 *SATA 3Gb/s connector

1 * front panel connector

1 * front audio connector

4 * USB 2.0/1.1 connector

4 *USB 2.0/1.1 port

1 *COM port

1 * PS/2 port

1 * VGA port

1 *RJ-45 port

1 *LPT port

1 *audio jacks

On Board Ports

24 PIN ATX POWER PORT

4 PIN ATX 12V POWER PORTc

4*USB 2.0 PORTS

1*CPU fan connector

1*F_AUDIO PORT

Accessories

CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE.

SIZE

240mm x 170mm

PACKING

20PCS IN ONE CARTON
