Product Specifications
| Prod Model: |
DDS196 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current (a): |
2.5,5,10,15A |
| Rated Voltage (V): |
220/240V |
| Type: |
Energy Meter |
| Display: |
Indicator |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Reactive Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description

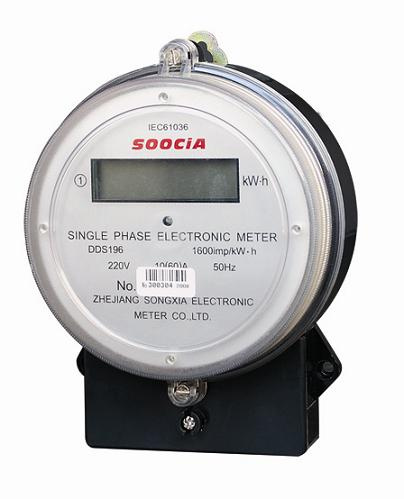

Single Phase Electric Meter DDS196 is designed for measuring active energy in single phase alternating current power grids by connecting up resident power supply system it complies with the standard IEC61036 and has high measure accuracy the meter is ISO9001 certified and the design can be tailored to different customer requirements.
The meter has high reliability and long service life by adopting large scale integration LSI and surface mounting technology SMT as well as international brand and long life key components
The meter is provided with pulse output with makes remote control and locale consumption monitor possible, the DDS196 is a safe and optimized solutiion designed for the needs of deregulated energy market and automatic meter reading.
Basic functions:
Energy display by register or LCD
Active energy measurement
Operation indicated by pulse LED
Optional functions
Reverse indicator An LED indicator will be on when the current is reversed
Anti tamper in condition that load is connected between the line and the earth
Entirely closed register
Hf magnetic immune register
Reversal preventing register
Technical data:
1. IEC61036-2000
2. Class 1 or 2
3. Working temperature: -30degree ~+65degree
4. Working voltage range: 0. 7~1. 2Un
5. Power consumption: Less than 0. 7w or 6VA
6. Over voltage protection: 12KV
7. Frequancy: 50HZ 60HZ
8. Rated voltage: 110v 120v 220v 230v 240v
9. Rated current: 1.5(6),2. 5(10), 5(20), 10(40), 20(80), 10(60), 10(100)
10.Output interface RS485
