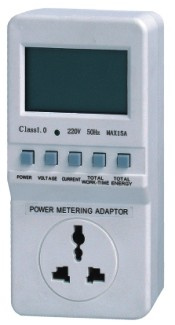

Ddsc722 Electronic Socket Watt-Hour Energy Meter
Product Specifications
| Prod Model: |
DDSC722 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220V |
| Maximum Current: |
10A |
| Rated Frequency: |
50Hz |
| Accuracy: |
Class 1 |
| Weight: |
250g |
| Size: |
158*80*50(Mm) |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Standard Electric Energy Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
| Certification: |
CCC |
Product Description

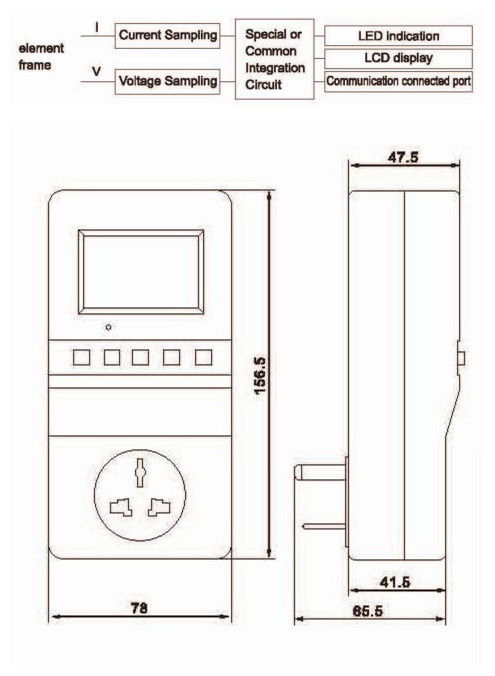

1. Working Elements
Accure current switch, micro-computer core and special electrical energy quantity measurement core, LCD display, placed in the socket, to realize measurement of active electrical quantity and display. It is suitable for faminly and rent.
2. Function
- Measure active electrical energy
- 8 digits LCD diaplay
- Voltage valid value
- Current valid value
- Date, time display
- Relay tripping
- Setup tripping timing and switching timing
- Switch by hand after tripping, tripping automatically after three hours- Electical energy record combination key clear zero
3. Specification characteristic
- Standard: GB2099.X-1997/BC17215-2003
- Specification: 220v 50Hz max current 10A
- Accuracy: 1.0s
- Costant: 64imp/kwh
- Power Consumption: ≤2w
- Weight: 250g
- Dimension: 158x80x50(mm)
- Working Temperature: -10ºCº~35ºC
Zhejiang Songxia Electric Meter Co., Ltd. is recommend by the national economy and commerce authority department, founded in 1992, is one of the earliest manufacture in our city, and also the largest export company in the field of meters in Wenzhou. Of the earliest manufacture in our city, and also the largest export company With building area of more than 12000m2 and kinds of high precision specialized equipment. High and new-technology industries and advanced technology use in our many kinds of products. Our products have more than 40 national certificates authorized by the national technology management. We get export certificate from 1999 and our products are very popular and famous in domestic markets, export to many countries and areas such as Pakistan, Nepal, Thailand Bangladesh, Philippine, ltaly, Sudan, Taiwan, etc. Of the earliest manufact.
Our company is established in high-tech and best quality, recognition the customer is the most important, quality is the best, service is the best and credit standing is the best, and we carry out these in our production, Supply and distribution. Our company has perfect quality system. It has passed the ISO9001 Quality System, CCC Quality certificate and KEMA Quality certificate, carrying out currently national standard and International Electro Technical Commission IEC521 standards strictly. With outstanding achievements, our company has got many honorary titles by our government such as Abide by contract, keep promise enterprise, Outstanding enterprise, Consumer recommends goods, Quality brand in Zhejiang Province etc.
We stillcarry on the developmentand research of new products constantly; Absorbing advanced technology and modernized technology equipments and management. We will abide by quality promise with the sprite of expanding, innovating quality, and marketing. Songxia will be more powerful and good further by your support.
