| Supplier: | Jiangsu Huada Centrifuge Co., Ltd. |
|---|---|
| Price: | Negotiable/Set |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | LW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: | PLC Control |
| Model: | Lw |
| Moc: | Ss321/316L |
| Motor: | Frequency Control |
| Guarantee: | 12 Month |
| Discharge: | Automatic Continuous Scroll Discharge |
| Function: | Sludge Dewatering and Thickening |
| Processing Methods: | Dewatering and Thickening |
| Pullution Sources: | Solid Waste Processing |
Decanter Centrifuge
Process | Applications | Design Features| Technical Parameters
Process
LW Decanter Centrifuge Operation Video: http://www.huada-video.com/lw-decanter

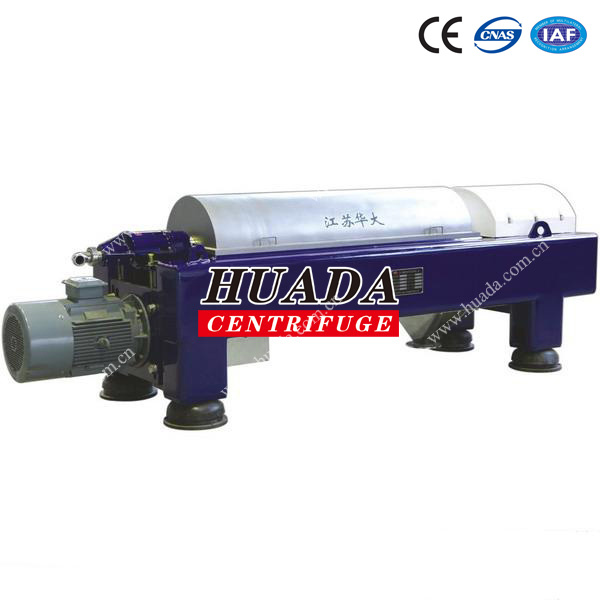

LW series decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.
Applications
1. Oil &gas drilling mud/fluid control
2. Industrial and municipal wastewater treatment
3. Fine Chemical slurry
4. Coal and minerals (float wash of extractive coal and dewatering of coal mud)
5. Pharmaceutical industry (antibiotic)
6. Food processing
-Olive oil, palm oil, avocado oil;
-Wine, fruit juice;
-Starch; Surimi ;
-Soybean and wheat protein
Design Feature
Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
Solid Discharge Ports
Liquid Discharge Ports
Dual motor drive makes bowl speed and conveyor speed adjustable.
Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys

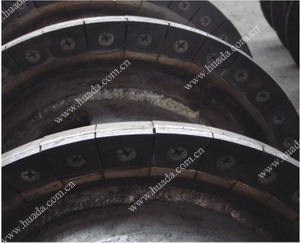

Tungsten Carbide Tiles
Optional planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment
Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
Technical Parameters
| models | Basket Dia(mm) | Length-Diameter Ratio | Rotation rate of basket(r/min) | Relative Centrifugal force | Power of motor(w) | Weight(kg) | Overall Dimensions(l*w*h)(mm) |
| LW220*660 | 220 | 3 | 4800 | 2840 | 7.5-11 | 900 | 1650*1150*700 |
| LW220*880 | 220 | 4 | 4300 | 2280 | 7.5-11 | 1000 | 1850*1200*750 |
| LW300*1140 | 300 | 3.8 | 3750 | 2370 | 11-15 | 1500 | 2100*1300*650 |
| LW355*1160 | 350 | 3.3 | 4000 | 3100 | 22 | 2020 | 3067*920*1060 |
| LW355*1460 | 350 | 4.1 | 4000 | 3100 | 22 | 2200 | 3365*920*1060 |
| LW400*1200 | 400 | 3 | 3500 | 2750 | 18.5-22 | 2500 | 2400*1650*900 |
| LW420*1680 | 420 | 4 | 3600 | 3000 | 22 | 2430 | 3320*1000*1060 |
| LW450*1350 | 450 | 3 | 3500 | 3080 | 30 | 2230 | 3750*1090*1250 |
| LW450*1800 | 450 | 4 | 3500 | 3080 | 30-37 | 3500 | 4200*1090*1250 |
| LW530*1800 | 530 | 3.4 | 3200 | 3040 | 45-55 | 3920 | 4565*1230*1350 |
| LW530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 4200 | 4885*1230*1350 |
| LW730*2400 | 730 | 3.3 | 2400 | 2350 | 110-132 | 9300 | 5500*3200*1450 |
| LW1120*3300 | 1100 | 3 | 1400 | 1200 | 160-200 | 15700 | 7000*3600*1780 |
