Deep Bed Multimedia Filters for Feed Water Turbidity Removal

Product Specifications

Prod Model:	YLD-MF-2400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Multimedia Filter
Flow Rate:	30m3/H
Tank Size:	2000*3100mm
Inlet And Outlet Diameter:	Dn100mm
Active Carbon:	1.2t
Working Pressure:	0.6MPa/1.0 MPa
Control Mode:	Automatic or Manual
Power Supply:	Can Be Customized
Feature:	Solid Particles Removal
Application:	Waste Water and Industrial Water Treatment
Usage:	Environmental Protection
Motive Force:	Pressure
Certification:	CE
Type:	Niphos Water Filter

Product Description

Deep Bed Multimedia Filters For feed water turbidity Removal

Multimedia Sand Filters
Following multi-layer filtration, Multimedia Sand Filters are most recommended systems to remove suspended particles, color, odor and iron from ground water and wastewater. Multimedia filtration works on pressurized filtration process, where three layers of filter media are used for fine particle removal approximately 5 to 25 microns. As compared to conventional sand filters, multimedia filters offer superior filtration quality, longer filtration cycles and lower water consumption during backwash; hence, these filters offer a flexible and feature-rich way to reduce the amount of suspended solids and turbidity in feed water. These multimedia filters are mostly used as pretreatment to reverse osmosis, DM and softener.



Working Principle

Also refers to multi-layer filter, a typical multimedia filter contains three layers of filter media (anthracite coal, sand and garnet). The principle behind using these three types of filtration media is the difference between particle size and density properties of these materials. Anthracite media is the lightest and largest particle size media, which remains of top following backwash while the intermediate size media (sand) will settle in the middle and garnet, the heaviest but having the smallest particle diameter, will settle to the bottom. Periodically backwashed is mandatory to remove contaminants trapped in the media during filtration process.




Application
Water treatment plant
Feed water of RO plant
Post treatment of wastewater treatment plant
Pretreatment of ion exchange based plant
Iron removal &Fluoride removal
Cooling tower water treatment plant.
Fountain, Water bodies and swimming pool
Rain water harvesting.
Gardening & washing application
River& lake water treatment.


 Most frequently used filtration fillings:
Fine gravel: 1-20mm
Silica sand of various roughness: 0.4-2.5mm
Active charcoal: is used for absorption of chlorine and other mineral substances
Anthracite: is used in two-layer or multi-layer filtration of drinking water in connection with sand - the addition of anthracite guarantees a longer filter lifetime, it facilitates a larger filtration through-flow and reduces sand contamination


The filtration bed can be formed by one layer or more layers of various filtration materials. Filtration sand lifetime during a proper washing of filters oscillates around 8 years on a standard basis.

Filters are controlled manually [with ball valves / shut-off valves] or automatically. In the case of an automatic filter control process, membrane or hydraulic or pneumatic valves are used.


The entire automatic process of filtration and back washing of filters is controlled by a central control unit. The control unit makes it possible to set filter washing on the basis of time, pressure difference or filtered water quantity.

Filters are washed, on a standard basis with raw water or with treated water from reservoirs.

Filters are fitted with a filtration inter-bottom with jets. The jets are made of the ABS material and make it possible to wash with water or both water and air. In the case of the filling height not exceeding 1500 mm, the water flushing process is fully sufficient.

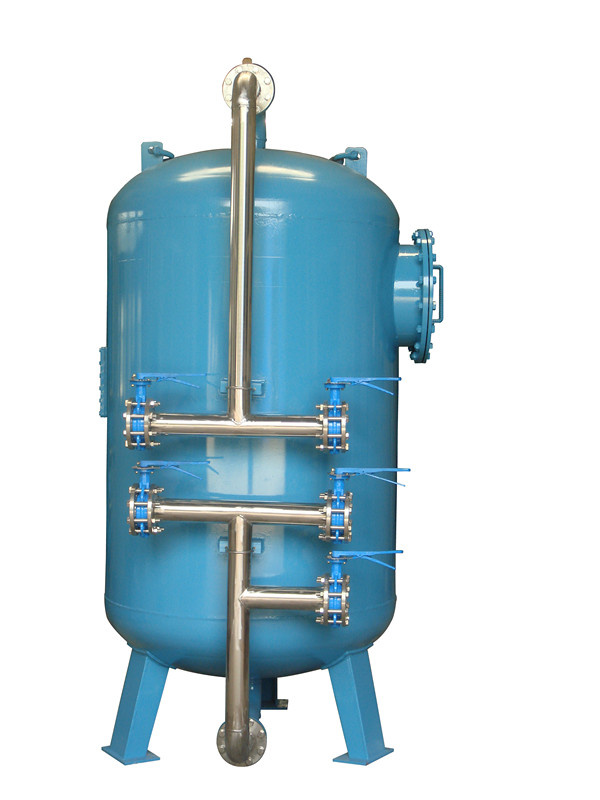

Pressure filters are made of carbon steel with a protective anticorrosion coating with epoxy resin in the RAL 5010 [gentian blue] or 5012 [light blue] colour shade. The coating meets the conditions of hygienic harmlessness for contacts with drinking water.




Technical Parameters:

  Specifications:

Model	TANK SIZE (mm)	TOTAL HIGH (mm)	FLOW RATE (m3/hr)	INLET AND OUTLET (mm)
YLD-MF-500	500*1500	2350	~2	DN32
YLD-MF-600	600*1500	2380	2-3	DN32
YLD-MF-700	700*1500	2400	~4	DN40
YLD-MF-800	800*1500	2400	~5	DN40
YLD-MF-900	900*1500	2500	~6	DN50
YLD-MF-1000	1000*1500	2600	~8	DN50
YLD-MF-1200	1200*1500	2700	~11	DN65
YLD-MF-1400	1400*1500	2800	~15	DN65
YLD-MF-1500	1500*1500	2850	~18	DN65
YLD-MF-1600	1600*1500	2900	~20	DN80
YLD-MF-1800	1800*1500 1800*1800	3000	~25	DN80
YLD-MF-2000	2000*1500	3100	~30	DN100
YLD-MF-2200	2200*1500	3180	~38	DN100
YLD-MF-2400	2400*1500	3330	~45	DN100
YLD-MF-2500	2500*1500	3380	~50	DN100
YLD-MF-2600	2600*1500	3430	~55	DN125
YLD-MF-2800	2800*1500	3530	~60	DN125
YLD-MF-3000	3000*1500	3630	70-80	DN125
YLD-MF-3200	3200*1500	3730	80~100	DN150



FAQ:

01.  how small a solid needs to be removed,
02.  how dirty the water is,
03.  how the water will be used once it is filtered,
04.  and the source of backwash water needed to clean the filters.
