Product Specifications
| Prod Model: |
T2250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Manula or PLC Is Optional |
| Exported To Many Countries: |
Turkey,Indonesia,India,Spain,Brail and So on |
| Structure: |
Deep Hole Boring Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 30 Set/Sets per Month
Port: Tianjin port
Payment Terms: L/C, D/A, D/P, T/T
Quick Details
Condition: New
CNC or Not: CNC
Place of Origin: Shandong, China (Mainland)
Brand Name: Guanlu
Model Number: T2150
Clour: White
Packaging & Delivery
Packaging Details: Bulk or wooden
Delivery Detail: 3month
Specifications

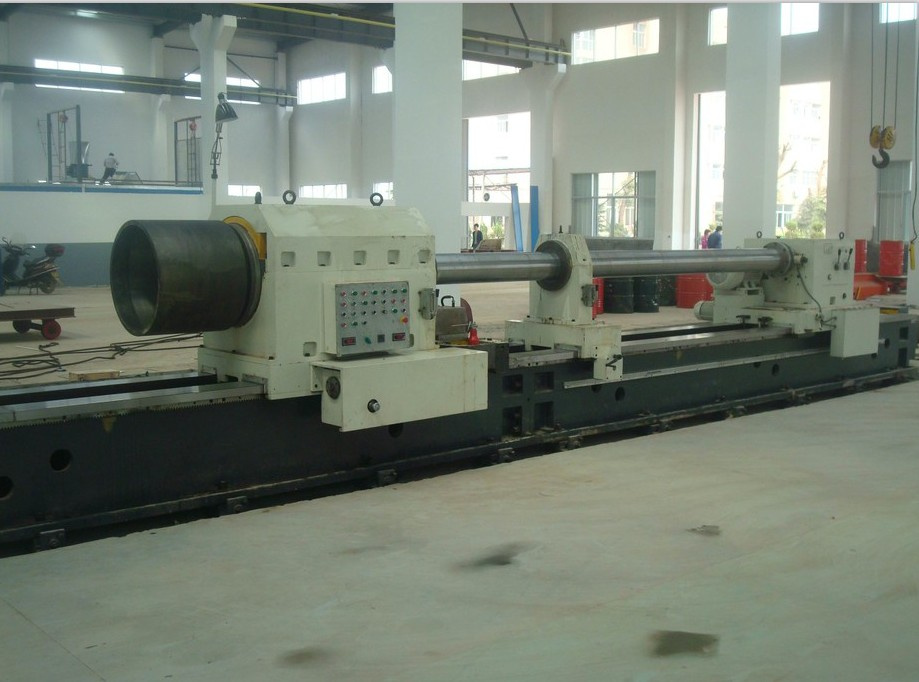

Deep hole boring machine
CNC or manual, we both have
High efficient, reasonable price
This series machines are specially for the cylindrical workpiece, such as lathe's spindle holes, through holes, blind holes, step holes of all kinds of machinery hydralic oil cylinders, air cylinders, the machine can drill, bore and also press, it is adopted BTA chip-out method.
The machine body is good in regidity, high accuracy. The spindle speed range is wide, infeed system is driven by AC servo motor, which can meet all kinds of deep hole process, the oil supply fasten device and workpiece clampling device adopts hydralic system, and show the pressure value, safety and reliable.
We can also make similar machines basing on the above machine, different length. We can make this kind of machines according to customers' requirement.
This machine also have CNC model.
Main Technical Parameters:
|
specifications |
technical data |
|
The range of drilling diameter |
50mm-120mm |
|
the range of boring diameter |
120-500mm |
|
the range of oring depth |
1000-15000mm |
|
the range of workpiece calmped diameter |
60-330mm |
|
spindle bore diameter |
350mm |
|
taper of spindle bore |
75mm |
|
range of spindle speed and step |
85mm 1: 20 |
|
range of boring bar speed and step |
40-500r/min 11kinds |
|
feed speed range |
5-1000mm/min(stepless) |
|
carriage raped-moving speed |
2m/min |
|
main motor power |
30kW |
|
motor power for boring bar |
1.5kW |
|
feed motor power |
3kW |
|
hydraulic pump motor power |
4.4kW |
|
cool pump motor power |
5.5kW 4group |
|
rated pressure for colling system |
2.5MPa |
|
flow of cooling system |
100 200 300 400L/min |
|
total motor power |
6.3MPa |
