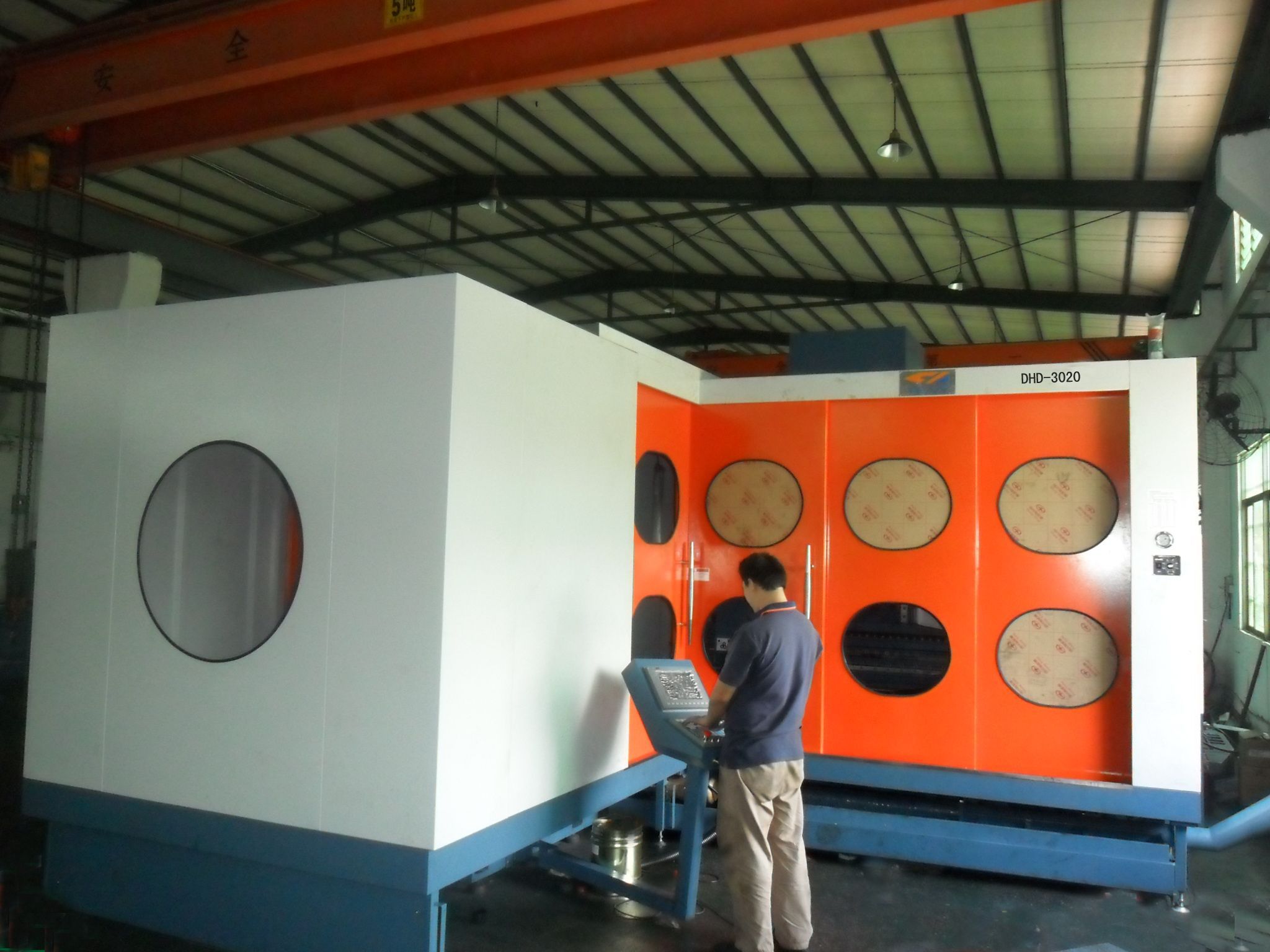

Deep Hole Drilling of CNC Machine (DHD-3020)

Name: Deep Hole Drilling of CNC Machine (DHD-3020)
Brand: china-manufacturer-directory.com
SKU: 718162755
Availability: InStock
Rating: 4.4 (41 reviews)

Supplier:	Dongguan Temy Numerical Control Machine Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DHD-3020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Controlling Mode:	CNC
Structure:	Deep Hole Drilling
Layout:	Vertical
Automatic Grade:	Automatic
Precision:	High Precision

Product Description

The precision CNC deep hole drilling machine produced by the company is suitable for various kinds of work pieces for deep hole processing: Die & mould industry (water transport hole, hot runner, guide roller hole, etc. ) auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing, plunger bushing, etc. ); Oil pump & lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts); Textile machinery industry (mesopore processing of various spindles); Medical equipment industry (axial processing in titanium alloy, stainless steel, etc. ); Mine & oil machinery (deep hole processing on piston rod, cylinder walls); Deep hole processing of rotor, central spindle, value spindle, unit outer cylinder, condenser tube plate in the industry of electrical power, steam turbine.

Machine tool technology parameters
NO.	items	contents
1	Holedia. Range	Φ3.0-Φ30mm.
2	Maximum depth of the drilling	2000mm.
3	Working table size	3200×1800mm.
4	Load capacity of working table	16 t.
5	Machine weight	25t.
6	Machine size	8000×6000×3000mm.
7	Axis travel	X: 3000 mm.	Y: 1200mm.		Z: 2020 mm.
8	Range of spindle speed	8000 rpm./min.
9	Range of spindle feed speed	0-300mm./min. (Unrestricted parameters)
10	Rapid speed	5000mm./min.
11	Main motor	11kw.
12	Three axis servo motor power	X:4.4kw.	Y:2.9kw.		Z:1.3kw.
13	The power of oil pump	high-pressure pump:7 h.p.		low pressure pump:7 h.p.
14	Chip removal machine power	0.75 kw.
15	Total power of machine	32 kw.
16	Cutting oil cooling pressure	2-150 kg/sq.cm. (maximum pressure: 200 kg/square.cm.)
17	Cutting the oil circulation flow	6-60 l.t./min. (maximum flow: 60 l.t./min.)
18	Cutting fuel tank capacity	800 l.t.
19	Number of spindles	1 axis
20	Pore size accuracy	IT8-IT11
21	The surface roughness of the hole	Ra. ≤3.2μm.
22	Hole axis deflection of benchmark	0.3-0.5/1000(General Materials and Equipment:P20,dia.Φ10mm.)
23	Precision spindle deflection of inner hole	0.005mm.
24	Filter precision	20μm.
25	t-groove working surface	National standard: 34mm.
26	the oil temperature control	20-45ºC
27	shock absorption support	three
28	spindle with tubing connection mode	Sealing joint, put an end to leak
Machine standard configuration
No.	items	contents/field
1	Control system	Taiwan SYNTEC numerical control. model:10MA
2	Main fuel tank	Large capacity design, dual channel filter unit
3	Circulating oil cylinder	Multilevel magnetic adsorption filtration, equipped with vertical pump
4	Hydraulic control system	Intelligent control hydraulic system
5	spindle motor	MK
6	Spindle inverter	MK
7	Principal axis	Taiwan Dan makes
8	Three axis servo motor	JapanYasukawa
9	Three axis drives	JapanYasukawa
10	bearing	Japan NACHI
11	Lead screw	TaiwanHIWIN
12	Guide rail	TaiwanHIWIN
13	Central chip removal	Spiral automatic chip removal
14	Body construction	Resin sand casting

With headquarter located in Taiwan, Taiming CNC Machinery Co., Ltd. is a machinery manufacturer with R&D experience over 20 years in producing CNC equipments. To meet the mainland market demand, the company set up its branch factory in China's manufacturing city-Dongguan in2007. The main produced CNC equipments are: depth drill, CNC processing center, carving machine, etc. Various models of equipments annually produced are more than 200 sets; the company has constantly optimized, innovated production technology, to meet the market demand.
After development so far, the company has more than 120 technicians, more than 30 people for after-sales service team, and has offices in Zhejiang, Jiangsu, Shanghai, Qingdao, Chongqing, Wuhan, and Fujian. Currently is has more than500 customers and companies, including: BYD, Midea, Qingdao Haier, Xi'an Fast and many domestic famous enterprises. In line with the principle of good faith and mutual benefit, the company warmly welcomes friends from all walks of life to come for discussing business. The company is willing to sincerely cooperate with all new &old customers, to create a beautiful tomorrow.
