Product Specifications
| Prod Model: |
QD-072 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110V/240V |
| Theory: |
Voltage Relay |
| Size: |
Miniature |
| Type: |
Non-electric Parameter Relay |
| Electricity Type: |
AC |
| Number Of Pole: |
2 |
| Phase: |
3 |
| Usage: |
Air Conditioner |
Product Description
TIME DELAY-OTD SERIES
For protection of HVAC/R equipment, the TD Series of Time Delays provide the solution. Choose the Delay on Make, Delay on Break or By-pass Timer that solves the problem.
APPLICATIONS
. Protection from short cycling of compressor
. Ideal for compressor staging
. By-pass a control or device during staging
BENEFITS
. Fixed or adjustable Delay Ranges
. Broad input voltage range(Pilot Circuit)
. 1.0Amp rating
. Varying models work with or without anticipator circuit.
. Terminal or wire connections available
. Compact size

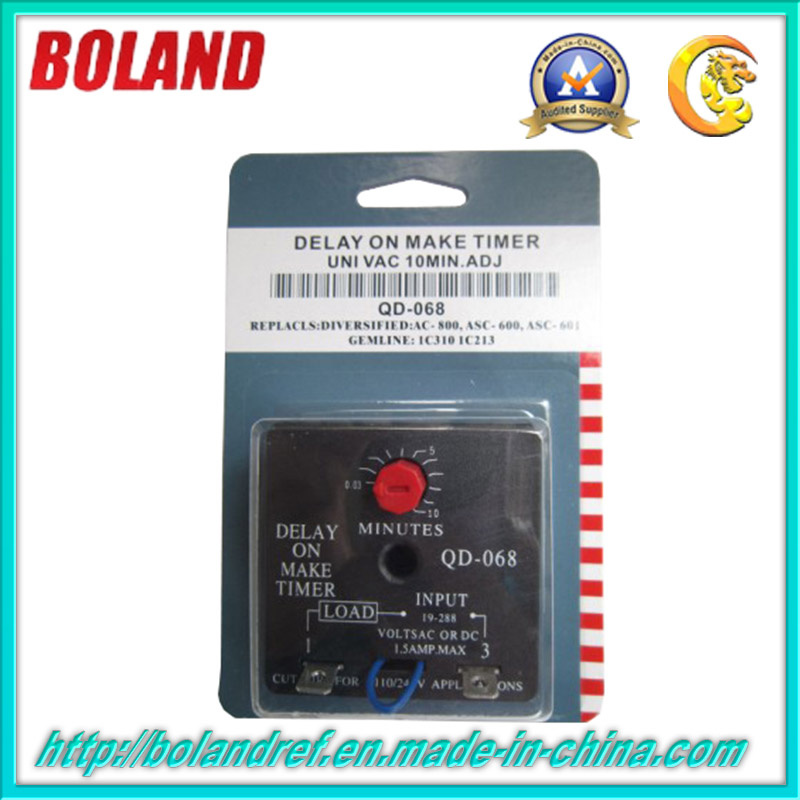

BTD68 DELAY ON MAKE TIMER
APPLICATION"ON"Delay On Make
. Multi Purpose"Delay on Make"timing
. Protects Air-conditioning, Refrigeration and Heat pumps from damage which may be caused by short cycling of compressor.
. For compressor staging and stagger starting multiple units.
. Helps to reduce power surges in multiple compressor applications
SPECIFICATIONS
|
Delay Range(Adjustable) |
6sec.to 8 min. |
|
Initiate Timer |
70 milliseconds |
|
Input Voltage |
19 to 250 VAC/VDC,50/60Hz |
|
Maximum Load |
1 amp.10 amp.inrush |
|
Operation Temperature |
0°F to +160°F(-18degree to +71degree) |
|
Dimensions |
2"x2"x0.75",(5.08x5.08x1.9cm) |
|
Mounting |
Nonpositional:single hole mounting |
|
Connections |
1/4" male Terminals |
