Product Specifications
Product Description
Product Overview:

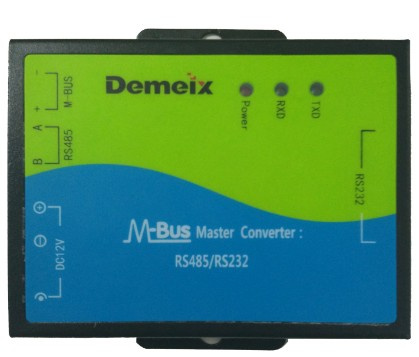

M-Bus converter of DMXC1000 achieves communication transformation from bus to the RS232&RS485. M-Bus strictly complies with EN1434 agreement. It can be connected to the Internet with M-Bus slave equipment through RS232 and RS485, such as ultrasonic heat meter, electricity meter, water meter, gas meter, etc.
M-Bus converter of DMXC1000 provides Bus a host interface, a RS485 interface, a RS232 interface, it implements the conversion from M-Bus to RS485 and RS232 at the same time. RS485 or RS232 interface can be chosen without any configuration.
M-Bus converter is usually used for PC, PLC, embedded computer and single chip microcomputer, centralized meter reading and other devices with RS232/RS485 interfaces to get network with M-Bus instrument.
Technical Parameters :
Functional features : the products of this series has realized the communication conversion from Bus to RS232 and RS485 , offering a variety of load specifications.
Support agreement : EN1434,CJ/T188
RS232 / RS485 data format:
Ø Baud rate : 300bps~9600bps
Ø 8 data bits
Ø Even check/odd check/invalid check
Ø 1 stop bit
u M-Bus data format:
Ø Baud rate: 300bps~9600bps
Ø 8 or 9 data bits
Ø Even check/odd check/invalid check
Ø 1 stop bit
Communication ability: Single channel can support the load of 10, 60, 120, and 180 (The load is calculated on the based of the electric current of 1.5mA of every meter, and the greater electric current , the less load. )
Bus voltage: high level: 36 v, low level: 24 v
The current loaded by bus : 10mA - 300mA
Working voltage: DC12V (+/-10%) current: 15A
Working temperature: -10ºC~70ºC
Working humidity: 5~90%(Non condensation )
Connector: 2p/3p(5.08mm pitch), DB9 female
Warranty: 2 years
