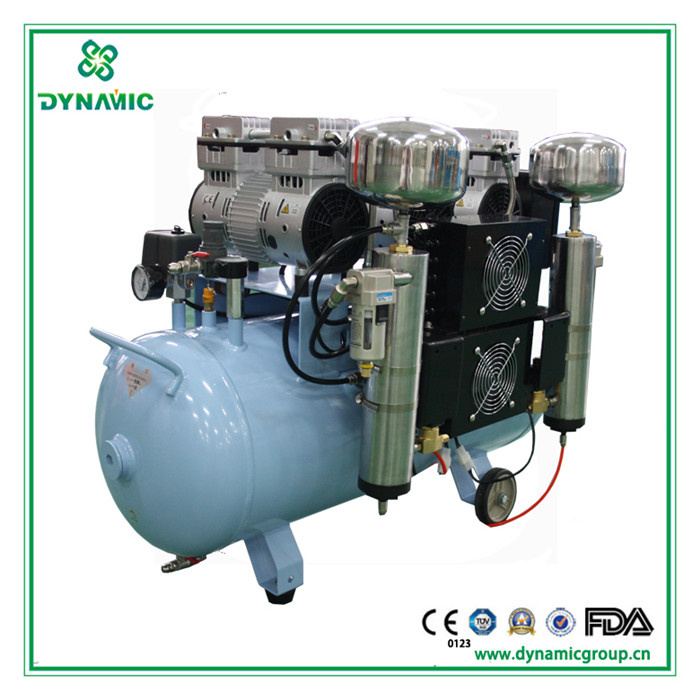

Dental Silent Air Compressor With Air Dryer(DA7003D)
Model: DA7003D
Voltage: 100-240V/50-60Hz
Power: 2250W [3HP]
Max Air Flow: 410L/min [14.4CFM]
Air Flow@7bar: 135L/min[4.77CFM]
Noise Level: ≤ 70 dB (A)
Max. Pressure: 8bar [116PSI]
Max Current: 10.2A
Dew-point Temperature: -20
Air Tank: 70L [15.4Gallon]
Gross Weight: 108.5kg [239.2lbs]
Net Weight: 89.5kg [197.3lbs]
Dimension: 920*500*750mm [36.2*19.7*29.5 inch]
Specifications
1> Piston type;
2> Silent, Oil Free;
3> 3HP, 70L tank
Options
Metal Silent Cabinet ( all operation key located outside of the cabinet, easy to use; Temperature sensor and cooling system, keep longer service life for the motor; With casters, you may move the compressor freely )
Dry air: Why?
A quality dryer is essential equipment for the users.
The ambient air contains humidity and impurities which must be dully treated in order to guarantee clean, Dry and pure air to the patients and to avoid the risk of corrosion and oxidation of the expensive dental instruments Which are connected the the compressor.
The advantage of the "air dryer" system are the following:
No additional installation ( the system is integrated with the compressor)
No oxidation and corrosion;
Optimum air for patients, instruments and equipments;
Compactness;
Fully automatic operation;
Easy maintenance;
Low operative costs;
No power loss during the regeneration process;
Applications:
Medical; Laboratory; Pharmacy; Food Fermentation; Life Science; Biotechnology; Analytical nstrument; Measuring Apparatus; Water Processing Environmental Monitoring; Automation; Oating Surface Processing; Makeup; Garments Manufacture; Shoemaking; Petro hemistry; Arts, crafts and hobby; Beauty And Body; Printing; Optical And Photo; Research ND Laboratory; Jewelry And Accessories; Electronic And Computers; Safety System; Aviation And Military;
Characteristics:
1. Oil free: Do not need any lubricated oil, and harmless to the human body.
2. Super silent: Noise level lower than 56dB(a) to reduce noise pollution.
3. Multi-phase filteration: Advanced multi-phase filtration to ensure extremely clean air, and lengthen service life.
4. Safety using: Air compressor motors equipped with thermal prevention device to avoid overheating and protect motors.
5. Clean tank: All air receiver tanks have internal epoxy coating applied to avoid corrosion.
6. Automatic adjustment: High quality pressure switch used to control the power of air compressor automatically by adjustment of pressure level.
7. Pressure adjustment: Working pressure could be adjusted to meet the demand of different supporting equipments.
8. High durability: Serviceable time exceeds 15, 000 hours.
9. Simple operation: Using directly when connecting with power.
10. Easy maintanance: No need any lubricated oil.
11. Warranty: 2 years.
Contact Us For Quote Now!
Tel: 86-512-82627666
Fax: 86-512-82603908
Add: NO108 Xingpu Road, Lujia Town, Kunshan City, Jiangsu Province, China
|
Model |
DA7001D |
DA7002D |
DA7003D |
A7004D |
|
Voltage/Hz |
V |
100-240 |
100-240 |
100-240 |
100-240 |
|
Hz |
50/60 |
50/60 |
50/60 |
50/60 |
|
Power |
HP |
1 |
2 |
3 |
4 |
|
KW |
0.75 |
1.5 |
2.25 |
3 |
|
Max Air Flow |
L/min |
137 |
274 |
410 |
547 |
|
CFM |
4.8 |
9.6 |
14.4 |
19.2 |
|
Air Flow@7bar |
L/min |
45 |
90 |
135 |
180 |
|
CFM |
1.59 |
3.18 |
4.77 |
6.35 |
|
Max. Pressure |
Bar |
8 |
8 |
8 |
8 |
|
psi |
116 |
116 |
116 |
116 |
|
Dew-point Temperature |
|
-20 |
-20 |
-20 |
-20 |
|
Tank |
L |
30 |
50 |
70 |
100 |
|
Gallon |
6.6 |
11.0 |
15.4 |
22.0 |
|
Net Weight |
Kg |
36 |
64 |
89.5 |
113 |
|
Lbs |
79.4 |
141.1 |
197.3 |
249.1 |
|
Gross Weight |
Kg |
47.8 |
75.5 |
108.5 |
133.5 |
|
Lbs |
105.4 |
166.4 |
239.2 |
294.3 |
|
Max current |
A |
3.4 |
6.8 |
10.2 |
13.6 |
|
Noise Level |
dB(A) |
≤70 |
≤70 |
≤70 |
≤70 |
|
Dimensions |
mm |
560×450×650 |
710×485×750 |
920×500×750 |
1070×520×750 |
|
inch |
22×17.7×25.6 |
28×19.1×29.5 |
36.2×19.7×29.5 |
42.1×20.5×29.5 |
