Operating voltage AC/DC 1230(-0%+15%)
Quiescent current 6MA
Working temperature -40ºC...60ºC
Max installation height 3.5m

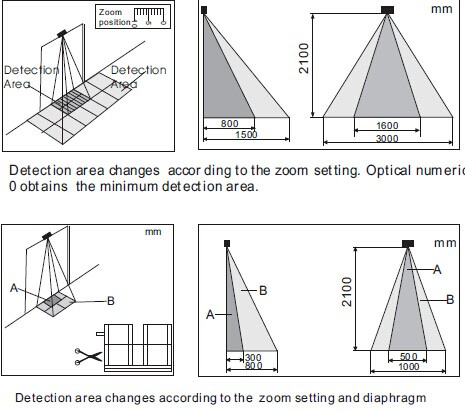

Max detection area 3×1.5m
Lowest detection speed 0.1m/s
Output hold time 0.5s
Protection class IP 52

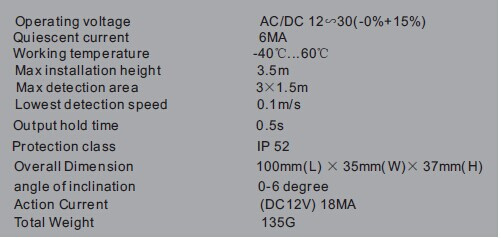

Technical Parameter
| Operating voltage | AC/DC 12-30(-0%+15%) |
| Quiescent current | 6MA |
| Working temperature | -40°C-60°C |
| Max installation height | 3.5m |
| Max detection area | 3×1.5mm |
| Lowest detection speed | 0.1m/s |
| Output hold time | 0.5s |
| Protection class | IP 52 |
| Overall Dimension | 100mm( L) × 35mm( W)× 37mm( H) |
| angle of inclination | 0-6 degree |
| Action Current | (DC12V) 18MA |
| Total Weight | 135G |
DEPER Automatic Door is a company integrating the research and development, design, manufacture, sales, installation and service of integrated professional automatic doors.
Products include Sliding Auto-Doors, Swing Auto-Doors, Auto-Revolving Doors, Hermetic Auto-Doors, Cured Sliding Auto-Doors and Telescopic Door and Folding Auto-Doors.
DEPER doors are widely applied and efficiently operated in office buildings, public buildings, hotels and restaurants, homes, hospitals, banks, supermarkets, airports and railway stations and factories in Asia, Europe, Australia, America and Africa.
DEPER are adhering to the spirit of "honest, truthful, fair and innovative". With new management concept and quick and considerate service, we provide users with products with first-class quality and perfect appearance. We also expect to cooperate sincerely with friends from all circles on the equal and mutually beneficial basis.
DEPER expects to share scientific and technological achievements with you.
DEPER from now on is the PRODUCTION BASES OF AUTOMATIC DOORS in China! !
DEPER welcome you to join us!
