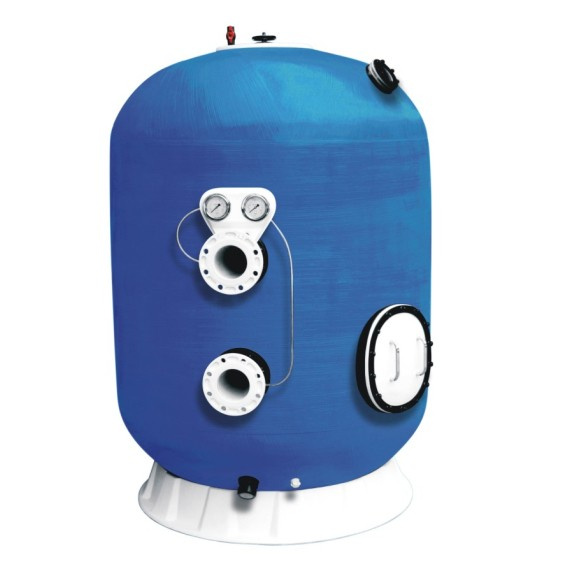

Depth Pool Filter Wl-Ddg for Swimming Pool
Product Specifications
| Prod Model: |
WL-DDG Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Size: |
2.0 Inches |
| Maximum Working Pressure: |
60psi/4kg/Cm2 |
| Maximum Operating Water Temperature: |
50 Degree Celsius |
| Method: |
Physical Treatment |
| Usage: |
Recreation |
Product Description

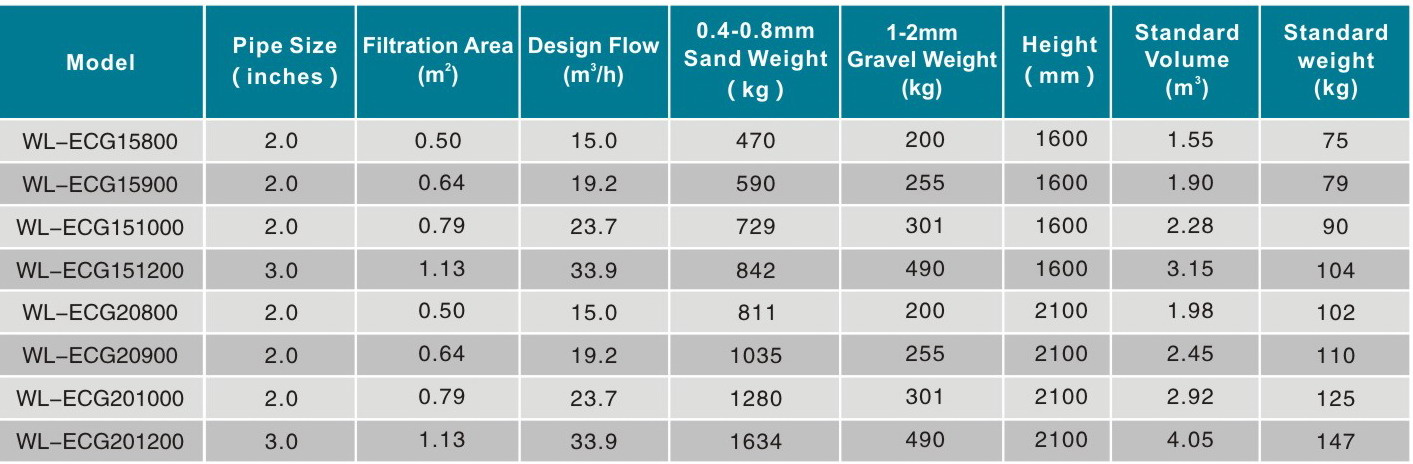

| Model | Pipe size(inches) | Filtration Area(M2) | Design Flow(m3/h) | 0.4-0.8mm Sand Weight(kg) | 1-2mm Gravel Weight(kg) | Height(mm) | Standard Volume(M3) | Standard weight(kg) |
| ECG15800 | 2 | 0.5 | 15.0 | 470 | 200 | 1600 | 1.55 | 75 |
| ECG15900 | 2 | 0.64 | 19.2 | 590 | 255 | 1600 | 1.9 | 79 |
| ECG151000 | 2 | 0.79 | 23.7 | 729 | 301 | 1600 | 2.28 | 90 |
| ECG151200 | 3 | 1.13 | 33.9 | 842 | 490 | 1600 | 3.15 | 104 |
| ECG20800 | 2 | 0.5 | 15 | 811 | 200 | 2100 | 1.98 | 102 |
| ECG20900 | 2 | 0.64 | 19.2 | 1035 | 255 | 2100 | 2.45 | 110 |
| ECG201000 | 2 | 0.79 | 23.7 | 1280 | 301 | 2100 | 2.92 | 125 |
| ECG201200 | 3 | 1.13 | 33.9 | 1634 | 490 | 2100 | 4.05 | 147 |
We're manufacture, specialized in pool and spa equipments for more than 25 years.
Depth Sand Filters are made of high quality fibre glass which is chemical and sunlight resistance, and can be installed out-of -doors. Side Mount , easily for operating. It also can be feeded and mixed different filtrate medium (such as : Zeolite, Sand and Active carbon) to make the water more clear. It is best choice for residential area and public water.
These high performance vertical bobbin wound sand filters are manufactured using reinforced polyester with glass fibre, which is completely anticorrosive, with high mechanical, chemical and thermal resistance. One of its main characteristics is the height of its filtering layer.
Dirt is driven through the sand bed and trapped in minute spaces between the particles of sand. Initially, a clean bed will remove larger particles and then as the sand bed starts to load up, it will remove finer
particles. The higher this is, the better its performance.

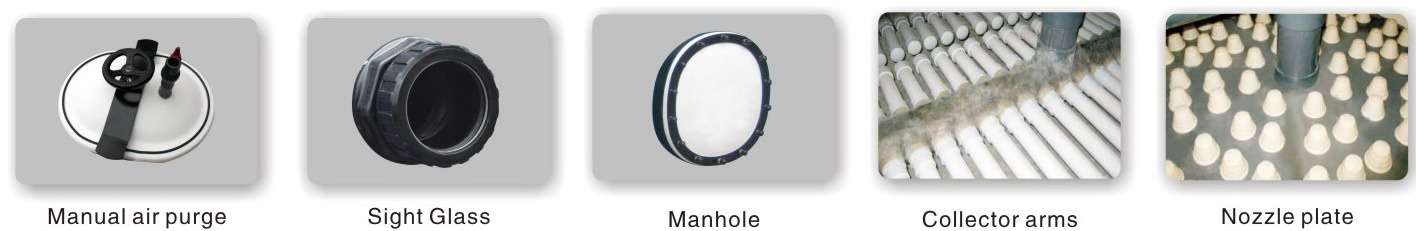

Option: Sight Glass ,Manhole,Nozzle plate,Air relief valve.
Guangdong LASWIM Water Environment Equipment Co., Ltd (for short LASWIM) set up in 1989, is one of the leading enterprises in the field of swimming pool and water environment in China.
The production base of LASWIM is located in Zhongshan city, Guangdong Province, covering an area of more than 90, 000 square meters. It has the advanced manufacturing equipment, perfect quality management control system, strong product innovation and development capabilities. The production workshop installed the advanced production lines and product testing equipment from Europe. All products are made of high-quality raw materials, and controlled automatically during the whole testing process of products.
LASWIM has accumulated rich experience in the industry these years. It has complete production lines, covering the full range of residential pools and commercial pools, including infinity pool, pool pump, filter, salt chlorine generator, underwater light, heat pump, pool ladder, pool starting platform, racing lane line, underwater observation window, white plastic accessories, integrated filtration equipment, etc.
Through continuous efforts, LASWIM has established a strong marketing network and perfect service system in the world. Its products are exported to Europe, North America, Australia, South America, the Middle East, Southeast Asia, Africa, more than 60 countries and regions, which are highly appreciated and recognized by customers.
Business Type: Manufacturer/Factory & Trading Company
Management System Certification: ISO 9001
International Commercial Terms: FOB, EXW, CFR
Terms of Payment: T/T, PayPal, Western Union
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 11~20 People
Export Year: 2001-07-28
Export Percentage: 41%~50%
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Africa, Australia, Domestic
Export Mode: Have Own Export License
Factory Address: No 16 Jianye Road, Shenghui South Industrial Park, Nantou Town, Zhongshan City, Guangdong Province, China
R&D Capacity: OEM, ODM, Own Brand(LASWIM)
No. of R&D Staff: 31-40 People
No. of Production Lines: Above 10
Annual Output Value: US$50 Million - US$100 Million
