Product Specifications
| Prod Model: |
965-775 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
965-775 |
| Northbridge: |
Intel 965gm Chipset |
| Southbridge: |
Intel+Ich6 |
| Graphics: |
Intel Graphics Media Accelerator 950 |
| LAN: |
Onboard Rtl8105 LAN Card |
| Shipping Way: |
DHL /UPS / FedEx |
| Shipping Time: |
2-4 Working Days |
| Payment: |
Paypal/ T/T/ Wester Union |
| Place Of Origin: |
Shenzhen, China |
| Main Chipset: |
Intel |
| Structure: |
ATX |
| Memory: |
DDR2 |
| CPU Socket: |
LGA 775 |
Product Description

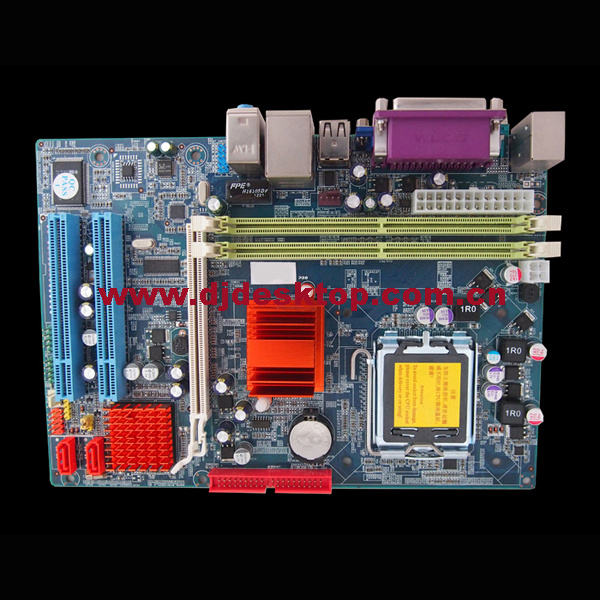

Desktop computer motherboard 965-775 with Intel Pentium 4 SOCKET 775 CPU
1. Intel 965gm+ich6 chipset, LGA 775, supports 1066/800/533 MHz fsb.
2. Supports 2*DDR2 800/667/533 memory, dual channel, support up to 4GB by 2 DIMM slots.
3.2*SATA, 4*USB2.0, 1*VGA, 1*PCI express X16, 2*PCI express X1.
4. Realtek 8105 10/100m LAN controller.
CPU
Supports intel pentium 4 socket 775 CPU
Supports intel celeron d socket 775 CPU
Supports 533MHz/800MHz/1066MHz host bus frequency tested e2200 serial CPU
Supports intel pentium ht (hyper threading technology) CPU
Chipset
Northbridge: Intel 965gm chipset
Southbridge: Intel+ich6
Memory
Provides two 240 pin ddrii slots
Supports 2*ddrii 800/667/533 memory(maximum 2GB RAM memory)
Graphics
Intel graphics media accelerator 950
Expansion slot
1*PCI express X16 slot
2*32-bit PCI slots 2.2 specification compliant
LAN
Onboard rtl8105 LAN card
Sound card
Onboard HD audio specification compliant
IDE
Provides 1 channel connecting for IDE drives
Supports ultra ATA66/100/133 synchronous DMA modes
SATA
2*SATA2 ports
I/o ports
1*serial port
1*parallel port, supports EPP/ecp/spp transfers
4*USB ports
1*PS/2 keyboard port
1*PS/2 mouse port
1*VGA port
1*multiple stereo( mic in, line in, line out jack)
1*RJ45 port
Onboard ports
20 pin ATX power port
4 pin ATX 12V power port
4*USB 2.0 ports
1*CPU fan connector
1*sys_fan connector
1*j_COM
1*f_audio port
BIOS
8m flash ROM
Size
240mm X 170mm
Packing
20PCS in one carton
