Product Specifications
| Prod Model: |
D226B-3D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Running Speed: |
1500/1800rpm |
| Capacity: |
30-135kw |
| Fuel: |
Diesel Engine |
Product Description

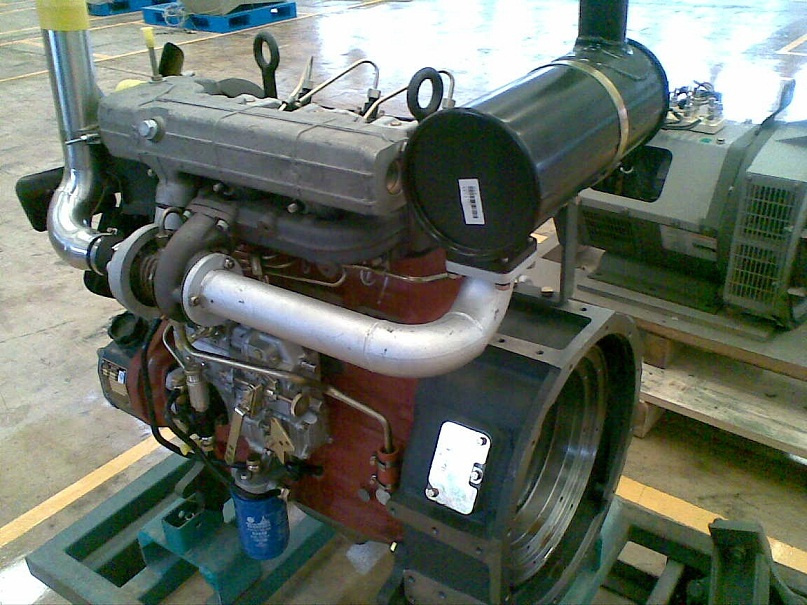

Deutz engine 226B Series Diesel engine for Gen-sets
Model D226B-3D D226B-4D TD226B-3D TD226B-4D TD226B-6D TBD226B-6D TBD226B-6D5 D226B-3D1 D226B-4D1 TD226B-3D1 TD226B-4D1 TD226B-6D1 TBD226B-6D1
Deutz diesel engine TypeIn-Line, Direct-Injection, Four -Stroke, Wet -Cylinder Liner
More information on deutz engine, please see the talbe
Model | D226B-3D | D226B-4D | TD226B-3D | TD226B-4D | TD226B-6D | TBD226B-6D | TBD226B-6D5 | D226B-3D1 | D226B-4D1 | TD226B-3D1 | TD226B-4D1 | TD226B-6D1 | TBD226B-6D1 | | Type | In-Line Direct-Injection Four -Stroke Wet -Cylinder Liner |
Bore/stroke(mm) | 105/120 |
Displacement(L) | 3 | 4 | 3 | 4 | 6 | 6 | 6 | 3 | 4 | 3 | 4 | 6 | 6 |
Cylinder numbers | 3 | 4 | 3 | 4 | 6 | 6 | 6 | 3 | 4 | 3 | 4 | 6 | 6 | Prime power/speed
(kW/r/min) | 30/1500 | 40/1500 | 45/1500 | 60/1500 | 90/1500 | 120/1500 | 132/1500 | 36/1800 | 46/1800 | 50/1800 | 70/1800 | 105/1800 | 135/1800 |
Standby power(kW) | 33 | 44 | 50 | 66 | 99 | 132 | 145 | 40 | 51 | 55 | 77 | 116 | 149 | | Starting method | Electric | | Cooling method |
Closed water cooled |
Governing method | Mechanical/Electronic |
Aspiration method |
Natural apirated |
Natural apirated |
Turbocharged |
Turbocharged |
Turbocharged |
Turbocharged intercooled | Turbocharged intercooled |
Natural apirated |
Natural apirated |
Turbocharged |
Turbocharged |
Turbocharged | Turbocharged intercooled | | Fuel consumption(g/kW. h) | ≤ 208 | ≤ 208 | ≤ 208 | ≤ 208 | ≤ 208 | ≤ 205 | ≤ 205 | ≤ 208 | ≤ 208 | ≤ 208 | ≤ 208 | ≤ 208 | ≤ 205 |
Noise @ 1m dB(A) | ≤ 105 | | Rotation direction of crankshaft |
Counter clockwise(face to flywheel end) |
|
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
